GT1R CFS OEM Kit – 12-Injector | T1 02.01.01

GT1R Complete Fuel Solution for use with OEM main feed/return lines and AMS/Boost Logic 12-Injector Manifold

When tackling the fuel system on any high horsepower project there are understandably a number of things to address. One of the biggest headaches involved with making big numbers on ethanol based fuels is simply having enough fuel pump flow. While it may seem simple, historically this involves having two or even three fuel pumps, all of which adds up to a major wiring job and often times battling high fuel temps.  Another often overlooked area is proper filtration, which is critical in protecting the expensive high flowing fuel injectors needed to support the power.  T1 has been the sales and support side of Injector Dynamics since day one, which has allowed us to gain an enormous amount of experience and knowledge on performance fuel systems as a whole.

While our first generation Complete Fuel Solution was an extremely well designed and engineered kit, the introduction of the Injector Dynamics FPS1100 brushless pump and controller meant we could really take the kit to the next level.  The brushless pump featured in the FPS1100 system is capable of supporting 2,000whp on ethanol based fuels, which is something never before achieved by a single in-tank pump.  We took things a step further and engineered a full plug and play wiring harness that makes wiring in the controller and pump a breeze. As was the case with our previous generation kit, a Fore F2i fuel pressure regulator, GT1R fuel rails,  GT1R Gen 2 flex-fuel kit, and every fuel line needed is included.  This version features lines and fittings for mating the GT1R E5LM hanger and engine bay lines to your OEM feed and return lines. All lines are now labeled for ease of install, and heat-sleeved when necessary.  Because the OEM lines are being utilized in this kit, this version is recommended for applications under 1,400whp on ethanol.  The Injector Dynamics F750 fuel filter is also included, which meets Bosch’s OE specification for fuel injector filtration.

While not required, we do offer solutions for both fuel pressure and fuel temperature monitoring. The Injector Dynamics Pressure and Temperature sensor kit installs on the outlet side of the F750 filter and can be added now or at a later date.  If you are looking for a pressure sensor only, our GT1R Fuel Pressure Sensor kit can be purchase separately instead which will come with everything you need to install on the fuel pressure regulator.

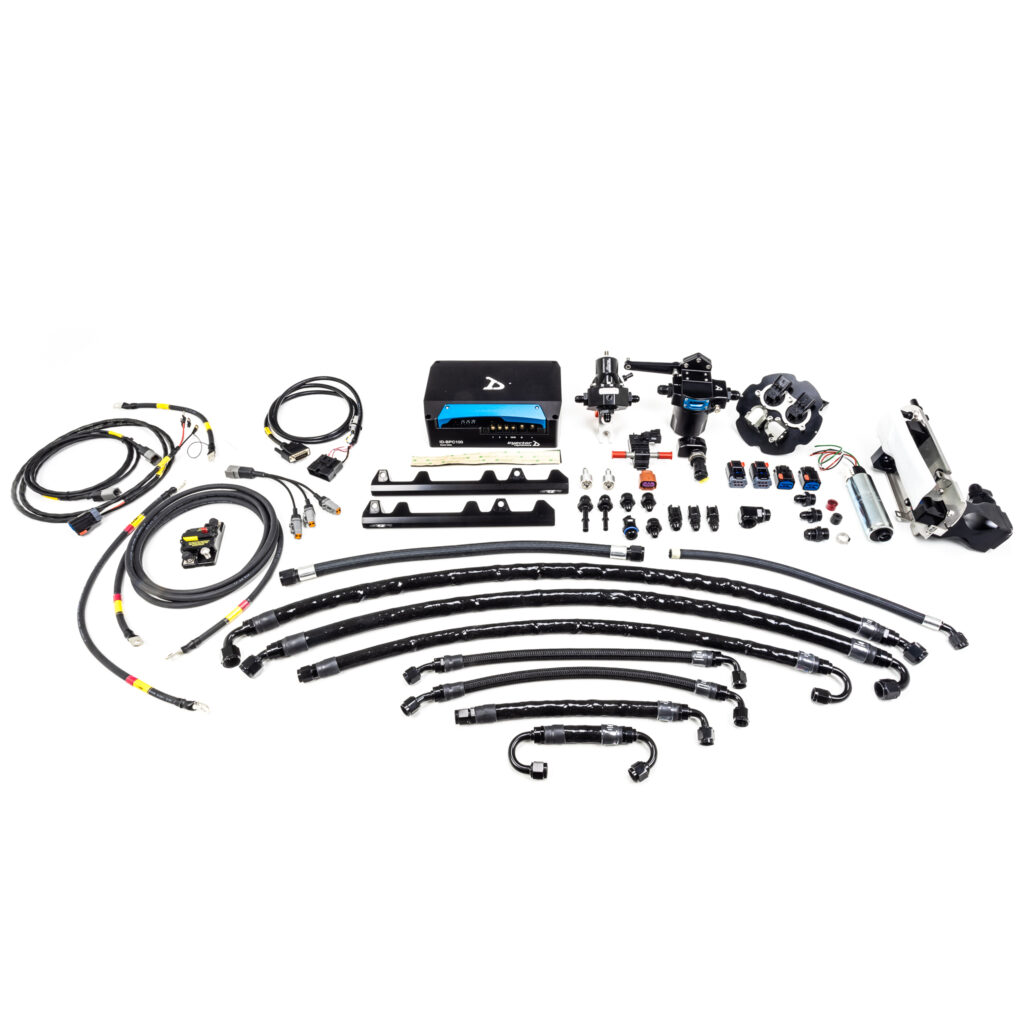

Includes GT1R E5LM Hanger, ID F750, GT1R Rails, Injector Dynamics FPS1100 Brushless Fuel Pump System, Fore FPR, GT1R Gen 2 ECA Kit, Fully assembled ethanol compatible fuel lines. (-8AN feed and -6AN return) and GT1R BPC wire harness.

Fuel System Diagram and Installation instructions – Click Here

Add GT1R Fuel Pressure Sensor Kit – Click Here

For ethanol applications over 1,400whp use the full line system here – GT1R CFS BPC Full Line Kit BL
