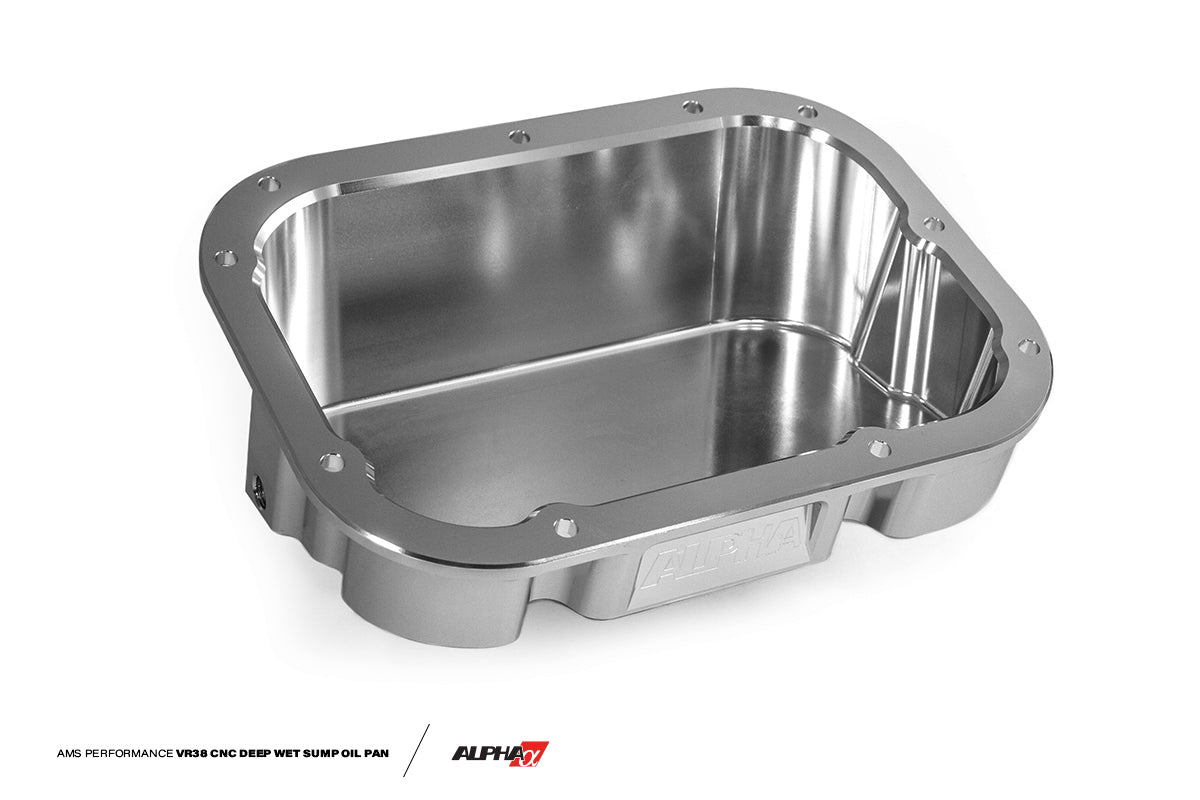

AMS Billet Deep Oil Pan Kit for 2009-2025 Nissan GT-R R35 - ALP.07.04.0024-1

Improved Oil Control: Helps reduce oil aeration during high-RPM engine operation

Oil Pressure Stability: Minimizes oil pressure drop caused by oil pump cavitation and air ingestion

Deep Wet Sump Design: Positions the oil pickup below aerated oil for improved lubrication

Added Oil Capacity: Increases engine oil capacity by approximately 1.5 quarts (1.4 liters)

Lower Oil Temperatures: Additional oil volume increases thermal capacity for improved cooling

Reduced Windage: Helps minimize crankcase oil windage at high engine speeds

Engine Protection: Improves bearing lubrication and long-term engine reliability

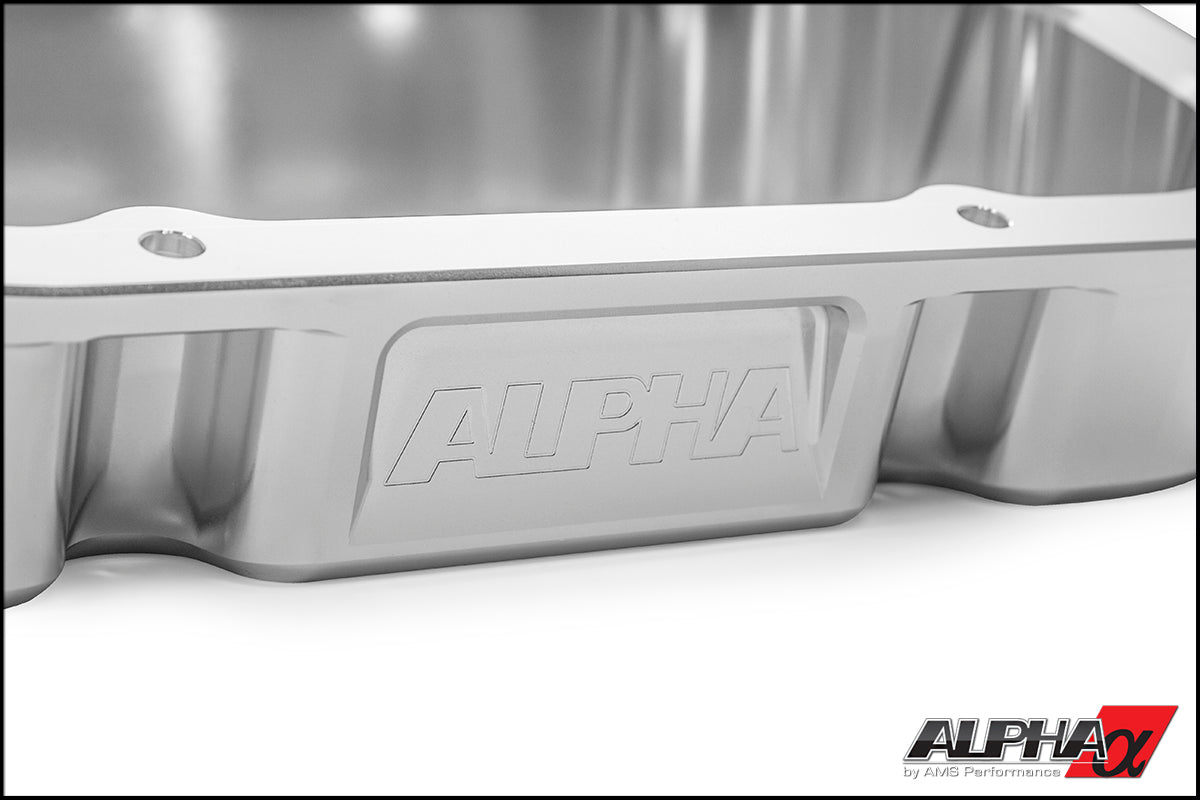

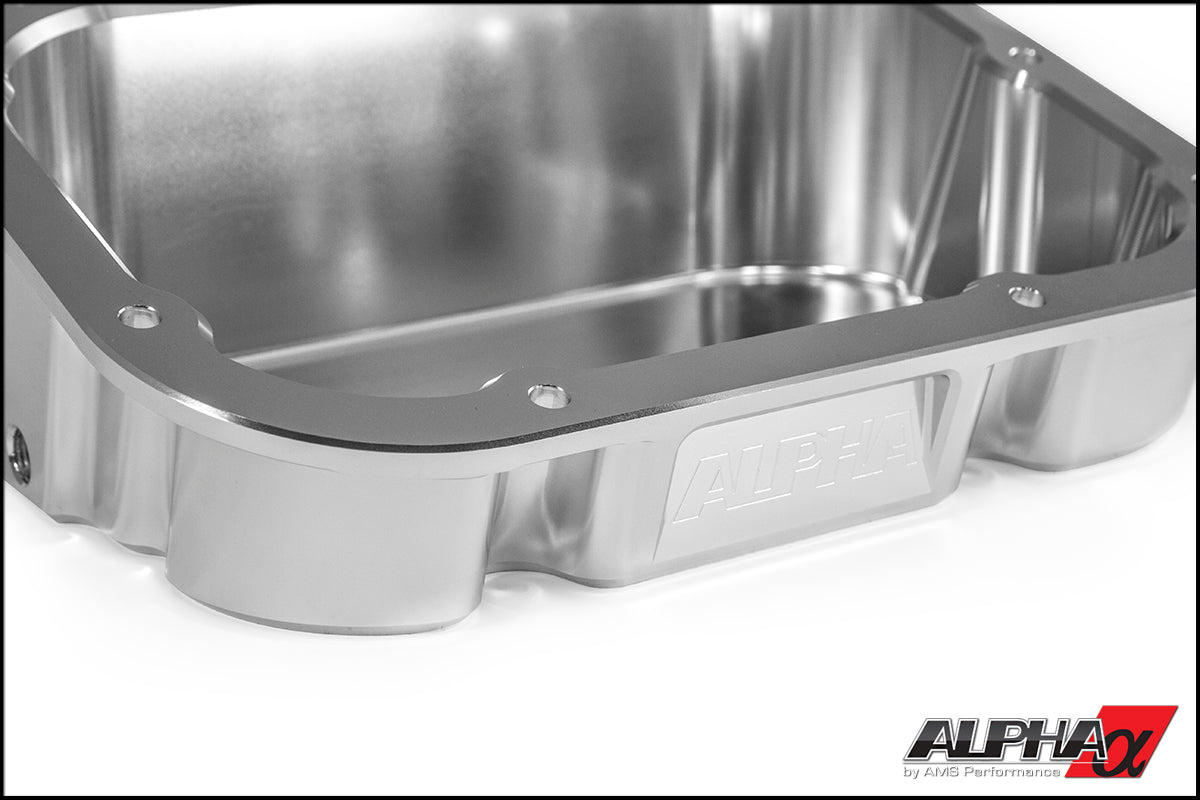

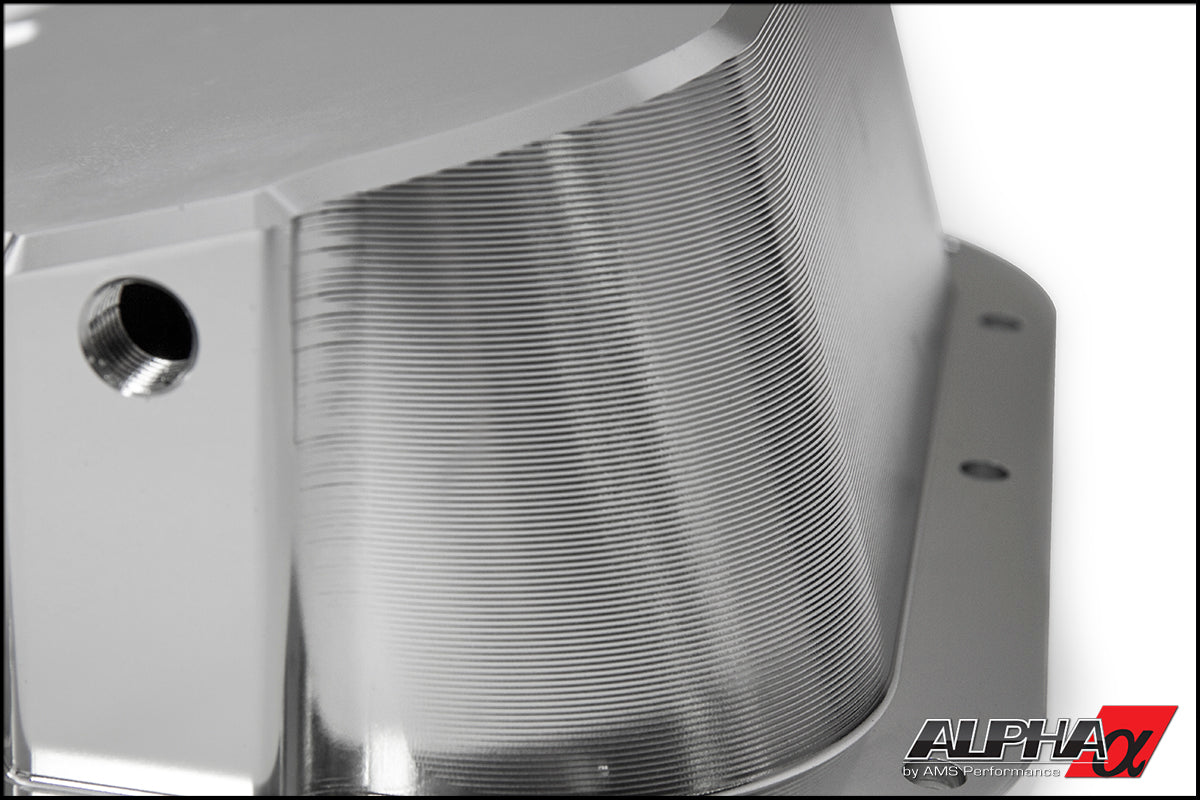

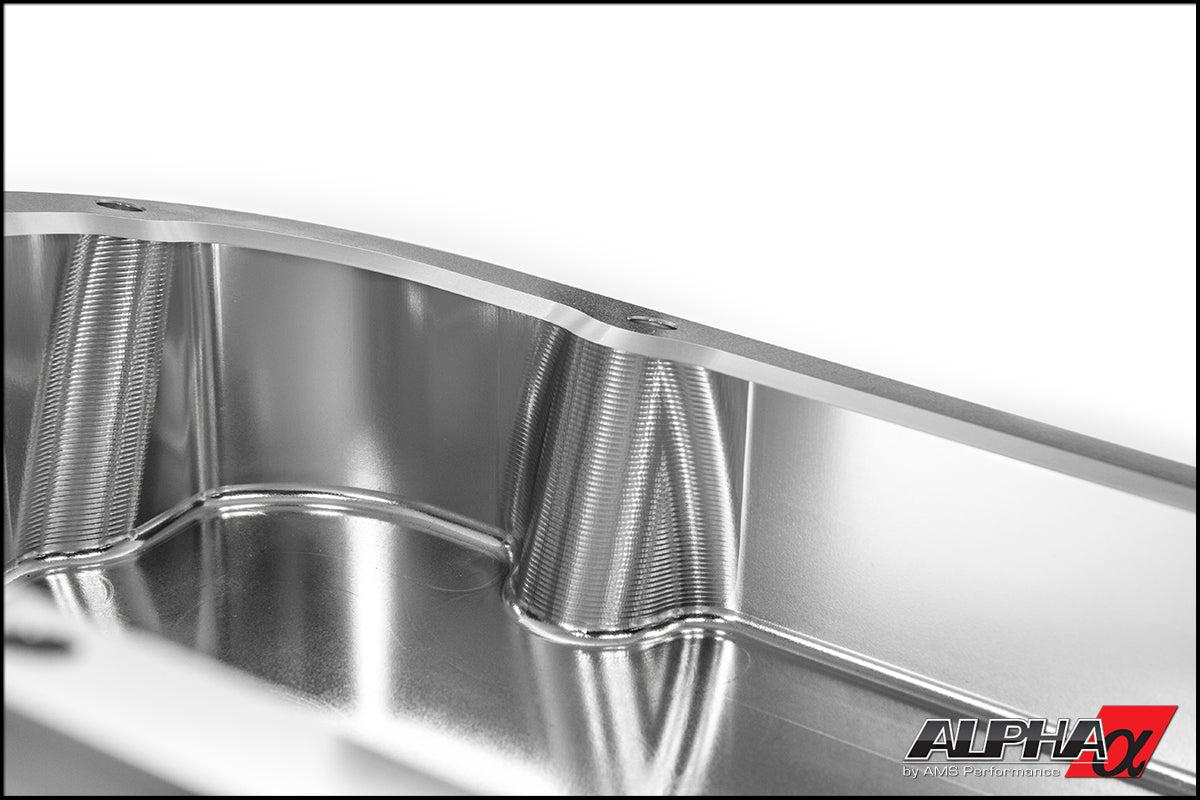

Construction: Precision CNC-machined billet aluminum

Ground Clearance: Designed to remain above the factory subframe for excellent protection from road hazards

Direct Fit: Designed specifically for the Nissan GT-R VR38DETT engine

Cost-Effective Solution: Offers significant oiling improvements without the expense or complexity of a dry sump system

Brand: AMS Performance

Part Number: ALP.07.04.0024-1

Product Series: Alpha

Part Type: CNC billet deep oil pan kit

Oil System Type: Deep wet sump

Vehicle Platform: Nissan GT-R R35

Engine Application: VR38DETT 3.8L twin-turbo V6

Pan Material: CNC-machined billet aluminum

Oil Capacity Increase: Approximately 1.5 qt (1.4 L)

Oil Pickup Extension Included: Yes

Ground Clearance: Designed not to extend below the factory subframe

Factory Undertray Compatibility: Yes, with trimming as specified

Drive Configuration Compatibility: Left-hand drive and right-hand drive

Market Compatibility: USDM, JDM, and European models

Quantity: 1 kit

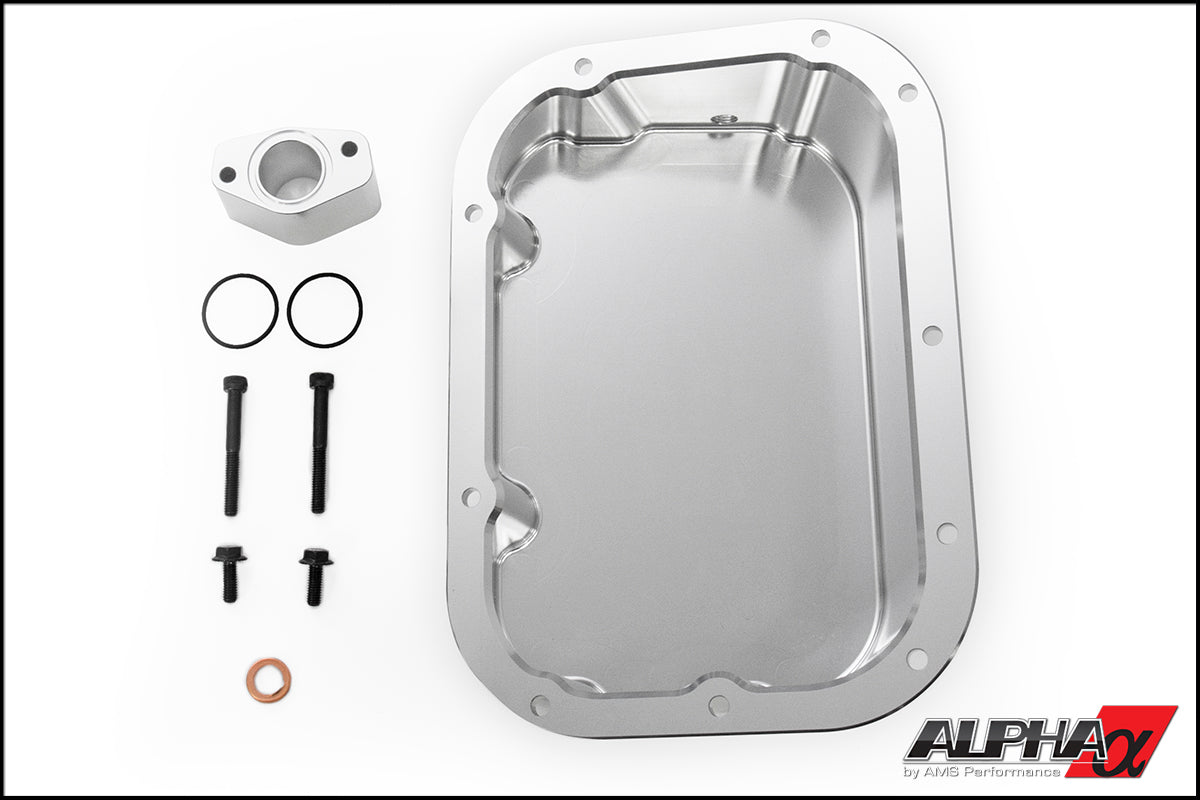

What's Included: CNC billet aluminum deep oil pan and oil pickup extension

AMS Performance is an American automotive engineering and performance-parts manufacturer specializing in high-powered turbocharged vehicles. Founded in 2001, AMS combines computer-aided design, mechanical engineering, motorsports development and extensive real-world testing to create individual components and complete performance packages. The company also provides in-house ECU calibration, product installation, engine building and transmission services. Its product range includes turbo kits, intercoolers, intake systems, exhaust components, fuel-system upgrades, cooling products, engine components and drivetrain solutions for Nissan, Mitsubishi, Audi, Lamborghini, Toyota, Infiniti and other performance platforms.

AMS began developing Nissan R35 GT-R products in 2009 and quickly became one of the most recognized names in GT-R performance through its ALPHA and OMEGA programs. In 2010, an AMS ALPHA 9 became the first R35 GT-R to record a nine-second quarter-mile pass, beginning a long history of GT-R racing records and high-horsepower development. Today, AMS Performance offers R35 GT-R turbo kits, intercoolers, intake manifolds, fuel-system components, exhaust upgrades, engine parts and complete performance packages for street, drag-racing and competition builds. Whether upgrading a mostly stock VR38DETT or assembling a high-output R35 GT-R, AMS products are developed to deliver engineered fitment, proven performance and compatibility across complete vehicle systems.

AMS-manufactured components are covered by a limited warranty for 12 months or 12,000 miles from the invoice date, whichever occurs first, for the original purchaser. Coverage is limited to defects in AMS materials or workmanship and generally provides repair or replacement of the affected AMS component. Certain specialized products may include different product-specific warranty terms.

The warranty does not generally cover improper installation, misuse, neglect, unauthorized modification, racing or competitive use, normal wear, maintenance items, contaminated fuel, collisions, damage caused by other manufacturers’ components, vehicle downtime, towing, rental vehicles or incidental expenses. Labor is not automatically covered unless the product was originally installed or serviced at AMS Performance’s facility. Components made by another manufacturer are subject to that manufacturer’s warranty rather than AMS coverage.

To begin a claim, contact Elite GT-R Parts with:

• Your order number and AMS part number

• A description of the problem

• Clear photographs or video of the affected component

• Relevant installation, maintenance or tuning information


Do not return the product before receiving authorization. AMS requires warranty returns to be approved in advance and accompanied by an issued Return Merchandise Authorization. Final coverage and resolution are determined by AMS Performance under its current warranty terms.
