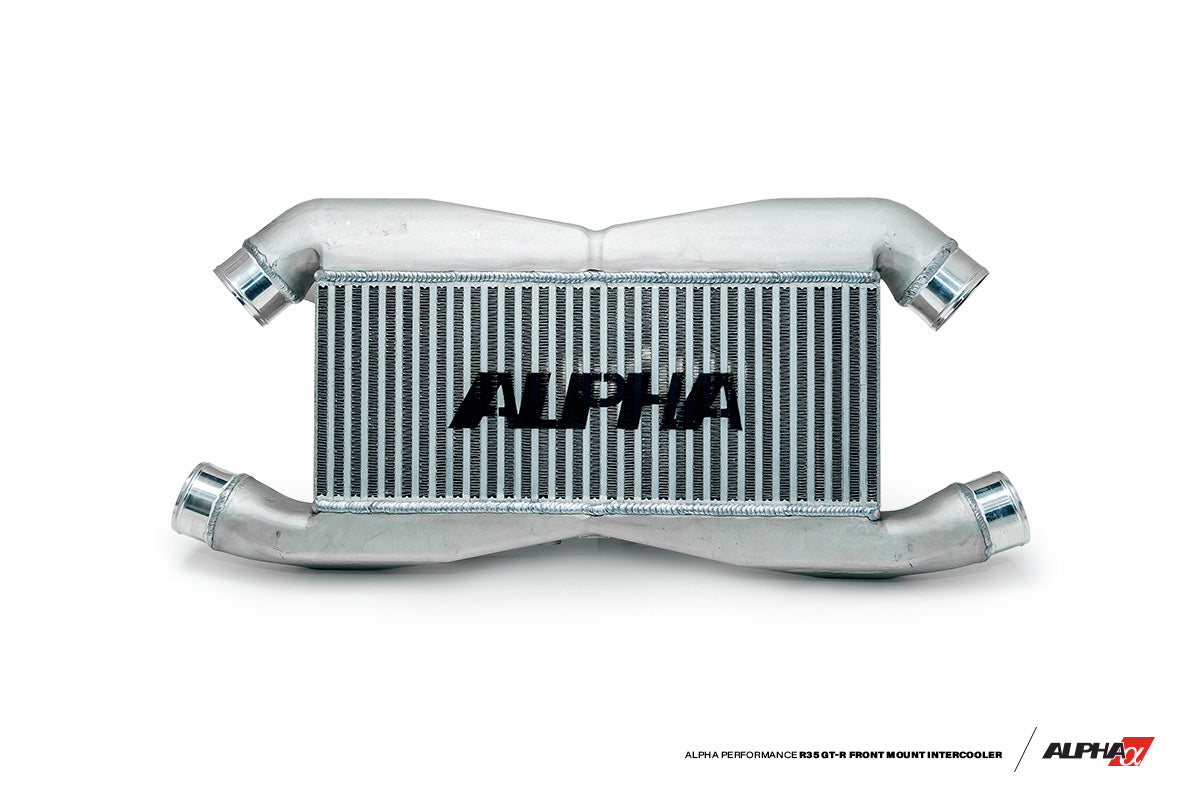

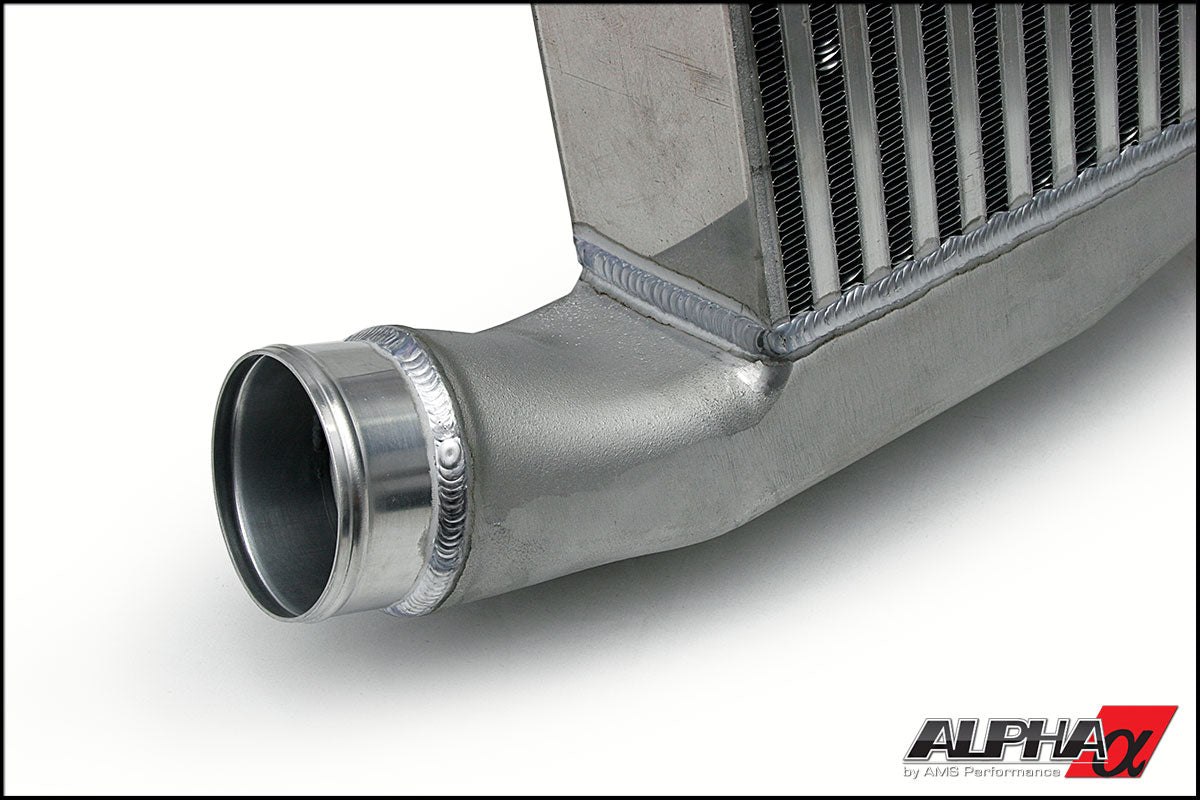

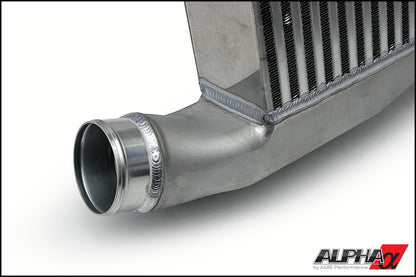

AMS Alpha Front Mount Intercooler for 2009-2025 Nissan GT-R R35 AMS Piping - ALP.07.09.0007-1

Power Capability: Optimized for GT-R applications producing up to 1,000 hp or approximately 800 whp

Flow Improvement: Provides 75% more internal flow area than the factory intercooler

Core Design: Garrett bar-and-plate intercooler core

Construction: One-piece design improves strength, appearance, and airflow consistency

End Tanks: Smooth-flowing cast end tanks reduce turbulence and restriction

Installation: Direct bolt-on fitment with no cutting or trimming required

Piping Compatibility: Designed for AMS intercooler piping or other compatible aftermarket piping kits

Inlet and Outlet Size: 3-inch ports

Coupler Design: Custom-molded silicone couplers optimize sealing, airflow volume, and fitment

Pressure Testing: Each intercooler is pressure tested to 50 psi after assembly

Fit and Finish: Engineered for an OEM-like installed appearance

Logo Finish: Black Alpha painted logo

Application: Suitable for high-performance street, drag racing, and track-focused builds

Brand: AMS Performance

Part Number: ALP.07.09.0007-1

Product Series: Alpha

Part Type: Front mount intercooler

Vehicle Platform: Nissan GT-R R35

Engine Application: VR38DETT 3.8L twin-turbo V6

Piping Application: AMS intercooler piping or compatible aftermarket piping kits

Core Manufacturer: Garrett

Core Construction: Bar-and-plate

Core Height: 9 in.

Core Width: 22 in.

Core Thickness: 4 in.

Inlet Size: 3 in.

Outlet Size: 3 in.

Internal Flow Area: 75% greater than stock

Maximum Recommended Power: Up to 1,000 hp

Approximate Wheel Horsepower Support: Up to 800 whp

End Tank Construction: Cast aluminum

Intercooler Construction: One-piece

Pressure Test Rating: Tested to 50 psi after assembly

Logo Finish: Black Alpha painted logo

Silicone Couplers Included: Yes, custom-molded for aftermarket piping fitment

Hose Clamps Included: Yes

Cutting or Trimming Required: No

Quantity: 1 kit

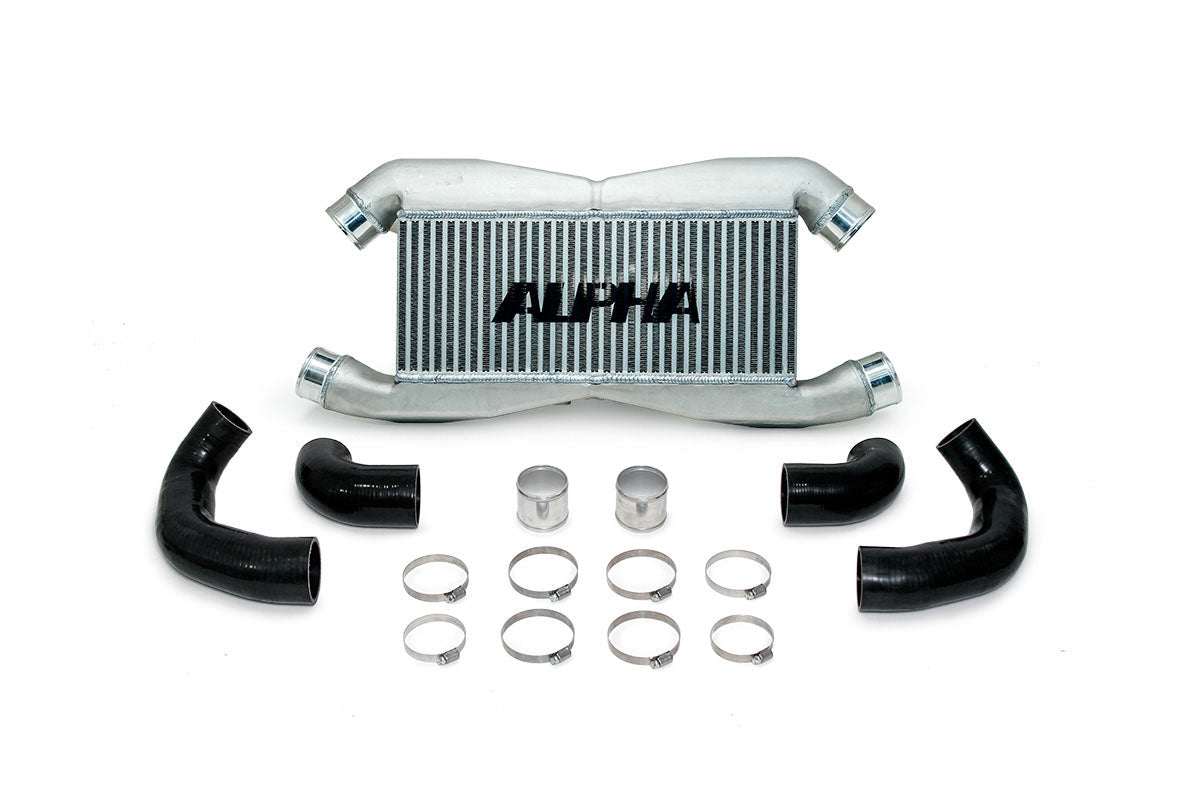

What's Included: One AMS Alpha front mount intercooler, custom-molded silicone couplers, and hose clamps

AMS Performance is an American automotive engineering and performance-parts manufacturer specializing in high-powered turbocharged vehicles. Founded in 2001, AMS combines computer-aided design, mechanical engineering, motorsports development and extensive real-world testing to create individual components and complete performance packages. The company also provides in-house ECU calibration, product installation, engine building and transmission services. Its product range includes turbo kits, intercoolers, intake systems, exhaust components, fuel-system upgrades, cooling products, engine components and drivetrain solutions for Nissan, Mitsubishi, Audi, Lamborghini, Toyota, Infiniti and other performance platforms.

AMS began developing Nissan R35 GT-R products in 2009 and quickly became one of the most recognized names in GT-R performance through its ALPHA and OMEGA programs. In 2010, an AMS ALPHA 9 became the first R35 GT-R to record a nine-second quarter-mile pass, beginning a long history of GT-R racing records and high-horsepower development. Today, AMS Performance offers R35 GT-R turbo kits, intercoolers, intake manifolds, fuel-system components, exhaust upgrades, engine parts and complete performance packages for street, drag-racing and competition builds. Whether upgrading a mostly stock VR38DETT or assembling a high-output R35 GT-R, AMS products are developed to deliver engineered fitment, proven performance and compatibility across complete vehicle systems.

AMS-manufactured components are covered by a limited warranty for 12 months or 12,000 miles from the invoice date, whichever occurs first, for the original purchaser. Coverage is limited to defects in AMS materials or workmanship and generally provides repair or replacement of the affected AMS component. Certain specialized products may include different product-specific warranty terms.

The warranty does not generally cover improper installation, misuse, neglect, unauthorized modification, racing or competitive use, normal wear, maintenance items, contaminated fuel, collisions, damage caused by other manufacturers’ components, vehicle downtime, towing, rental vehicles or incidental expenses. Labor is not automatically covered unless the product was originally installed or serviced at AMS Performance’s facility. Components made by another manufacturer are subject to that manufacturer’s warranty rather than AMS coverage.

To begin a claim, contact Elite GT-R Parts with:

• Your order number and AMS part number

• A description of the problem

• Clear photographs or video of the affected component

• Relevant installation, maintenance or tuning information


Do not return the product before receiving authorization. AMS requires warranty returns to be approved in advance and accompanied by an issued Return Merchandise Authorization. Final coverage and resolution are determined by AMS Performance under its current warranty terms.
