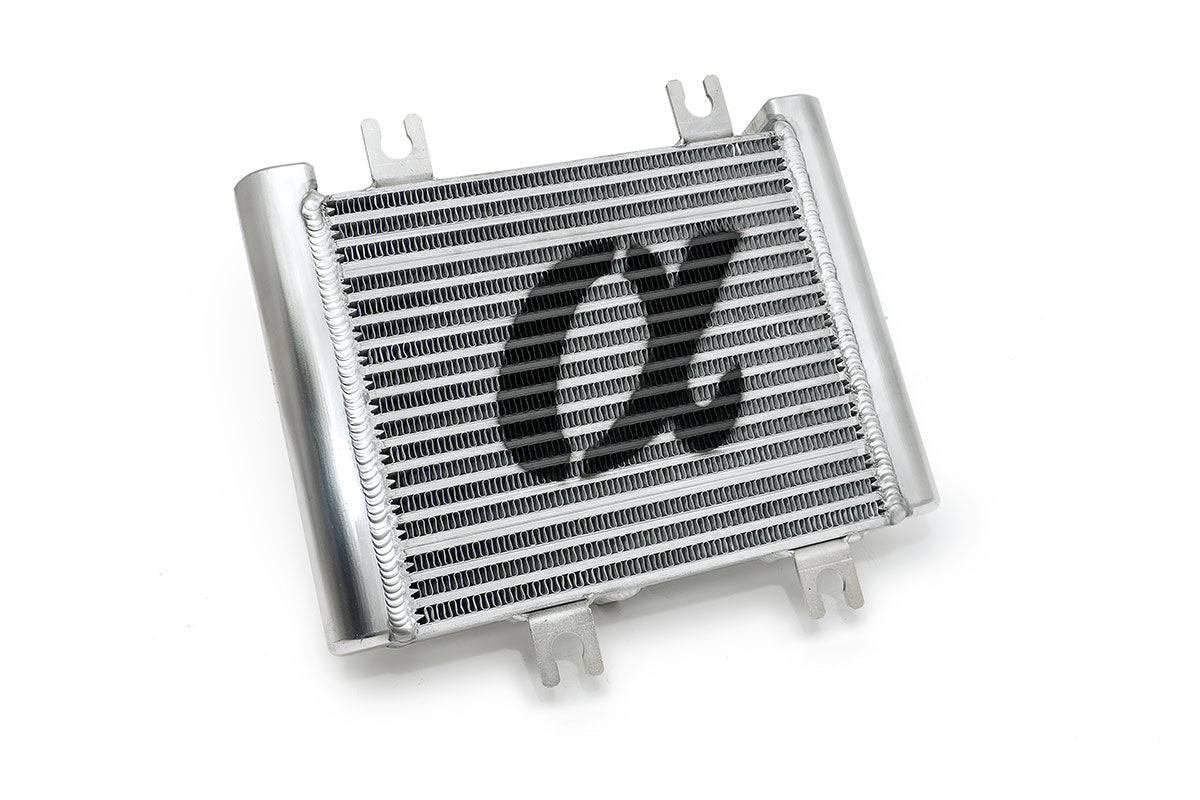

AMS Alpha Oil Cooler Upgrade for 2009-2025 Nissan GT-R R35 - ALP.07.02.0104-1

Cooling Performance: Larger and more efficient core design improves oil temperature control

Core Design: Bar-and-plate construction with internal turbulators enhances heat transfer

Core Thickness: Increased from the factory 50 mm design to 61 mm

Oil Capacity: Increased core volume supports greater oil capacity

End Tanks: Billet aluminum construction provides strength and durability

Airflow Sealing: High-temperature foam seal directs ducted air through the cooler core

Direct Fitment: Uses factory brackets, mounts, oil lines, shroud, and ducting

Installation: True bolt-in design requires no trimming or modification

Leak Reduction: Retains OEM-style connections and lines to reduce added fittings and potential leak points

Replacement Value: Cost-effective alternative to replacing the factory oil cooler

Complete Kit: Includes OEM gaskets and required installation components

Application: Suitable for street, track, and high-performance GT-R builds

Brand: AMS Performance

Part Number: ALP.07.02.0104-1

Product Series: Alpha

Part Type: Engine oil cooler upgrade

Vehicle Platform: Nissan GT-R R35

Engine Application: VR38DETT 3.8L twin-turbo V6

Factory Oil Cooler Reference: Nissan 21305-JF02B

Core Construction: Bar-and-plate

Internal Core Design: Turbulator

Core Thickness: 61 mm

Factory Core Thickness: 50 mm

End Tank Material: Billet aluminum

Foam Air Seal Included: Yes, high-temperature foam

Factory Mounting Compatibility: Yes

Factory Oil Line Compatibility: Yes

Factory Shroud Compatibility: Yes

Factory Ducting Compatibility: Yes

Trimming Required: No

Replacement Gaskets Included: Yes, OEM gaskets

Drive Configuration Compatibility: Left-hand drive and right-hand drive

Market Compatibility: USDM, JDM, Gulf, and European models

Quantity: 1 oil cooler kit

What's Included: One AMS Alpha oil cooler assembly with billet aluminum end tanks, high-temperature foam seal, OEM replacement gaskets, and installation components

AMS Performance is an American automotive engineering and performance-parts manufacturer specializing in high-powered turbocharged vehicles. Founded in 2001, AMS combines computer-aided design, mechanical engineering, motorsports development and extensive real-world testing to create individual components and complete performance packages. The company also provides in-house ECU calibration, product installation, engine building and transmission services. Its product range includes turbo kits, intercoolers, intake systems, exhaust components, fuel-system upgrades, cooling products, engine components and drivetrain solutions for Nissan, Mitsubishi, Audi, Lamborghini, Toyota, Infiniti and other performance platforms.

AMS began developing Nissan R35 GT-R products in 2009 and quickly became one of the most recognized names in GT-R performance through its ALPHA and OMEGA programs. In 2010, an AMS ALPHA 9 became the first R35 GT-R to record a nine-second quarter-mile pass, beginning a long history of GT-R racing records and high-horsepower development. Today, AMS Performance offers R35 GT-R turbo kits, intercoolers, intake manifolds, fuel-system components, exhaust upgrades, engine parts and complete performance packages for street, drag-racing and competition builds. Whether upgrading a mostly stock VR38DETT or assembling a high-output R35 GT-R, AMS products are developed to deliver engineered fitment, proven performance and compatibility across complete vehicle systems.

AMS-manufactured components are covered by a limited warranty for 12 months or 12,000 miles from the invoice date, whichever occurs first, for the original purchaser. Coverage is limited to defects in AMS materials or workmanship and generally provides repair or replacement of the affected AMS component. Certain specialized products may include different product-specific warranty terms.

The warranty does not generally cover improper installation, misuse, neglect, unauthorized modification, racing or competitive use, normal wear, maintenance items, contaminated fuel, collisions, damage caused by other manufacturers’ components, vehicle downtime, towing, rental vehicles or incidental expenses. Labor is not automatically covered unless the product was originally installed or serviced at AMS Performance’s facility. Components made by another manufacturer are subject to that manufacturer’s warranty rather than AMS coverage.

To begin a claim, contact Elite GT-R Parts with:

• Your order number and AMS part number

• A description of the problem

• Clear photographs or video of the affected component

• Relevant installation, maintenance or tuning information


Do not return the product before receiving authorization. AMS requires warranty returns to be approved in advance and accompanied by an issued Return Merchandise Authorization. Final coverage and resolution are determined by AMS Performance under its current warranty terms.
