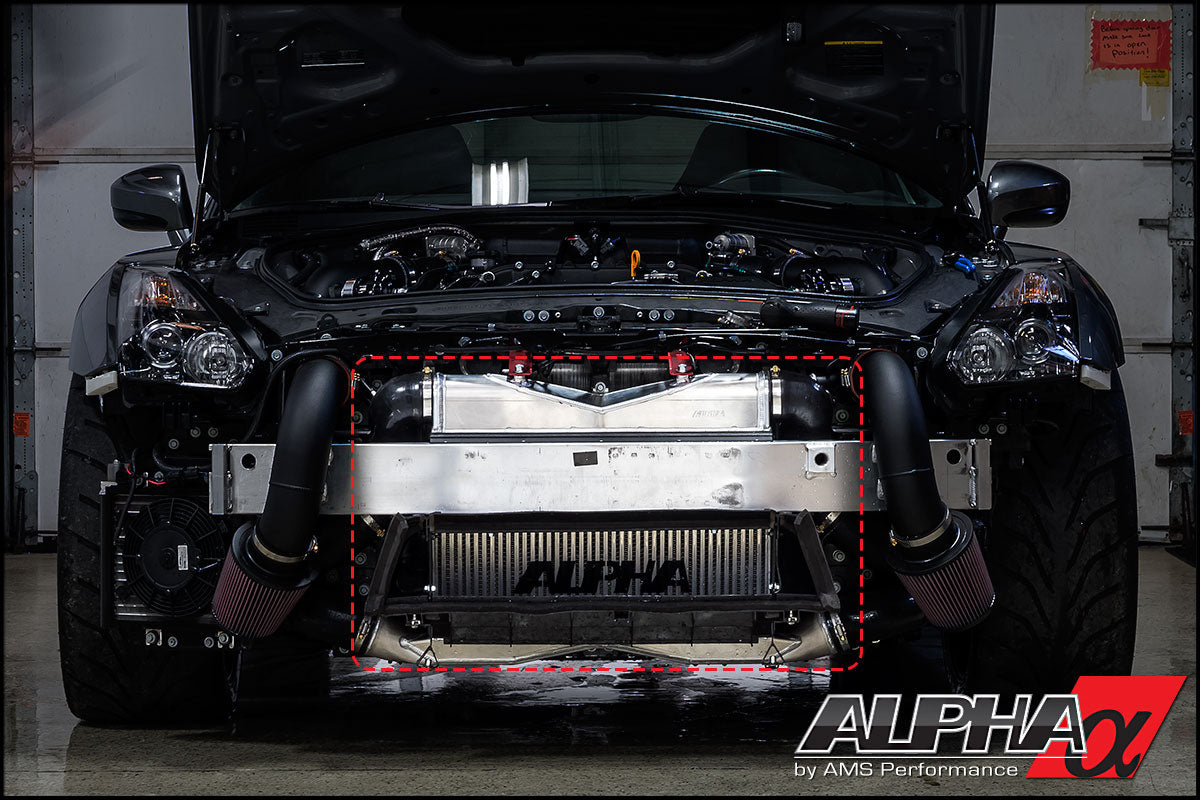

AMS Alpha Race Front Mount Intercooler for 2009-2025 Nissan GT-R R35 - ALP.07.09.0008-1

Power Capability: Suitable for GT-R applications producing approximately 1,000-1,400 hp or 800-1,200 whp

Air Volume Increase: Provides 92.5% more air volume than the factory intercooler system

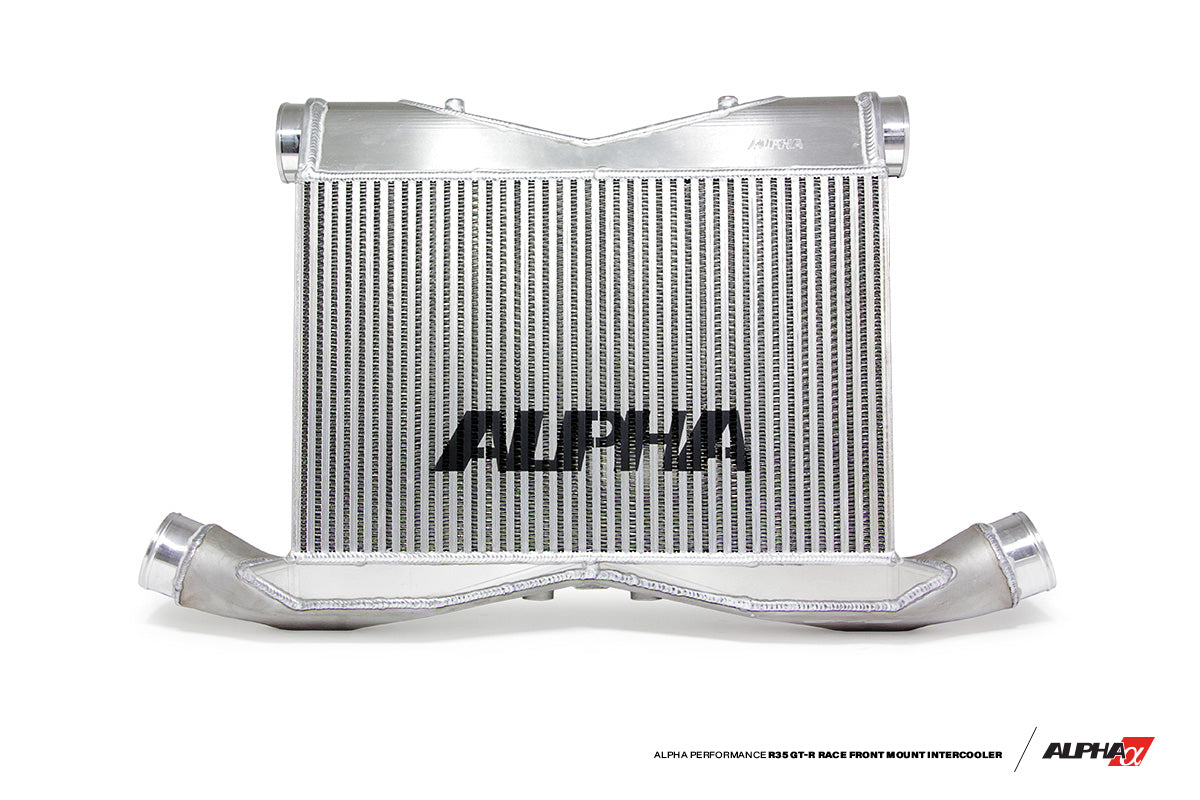

Core Design: Massive Garrett vertical-flow bar-and-plate intercooler core

Cooling Efficiency: Up to twice the fin density of many aftermarket cores for improved heat transfer

Pressure Drop: Designed to maintain less than 1 psi of boost pressure loss

Thermal Performance: Maintains efficient charge-air cooling in hot climates and demanding conditions

Inlet and Outlet Ports: CNC-machined billet 3-inch connections improve airflow and strength

Construction: High-quality aluminum with precision TIG-welded assembly

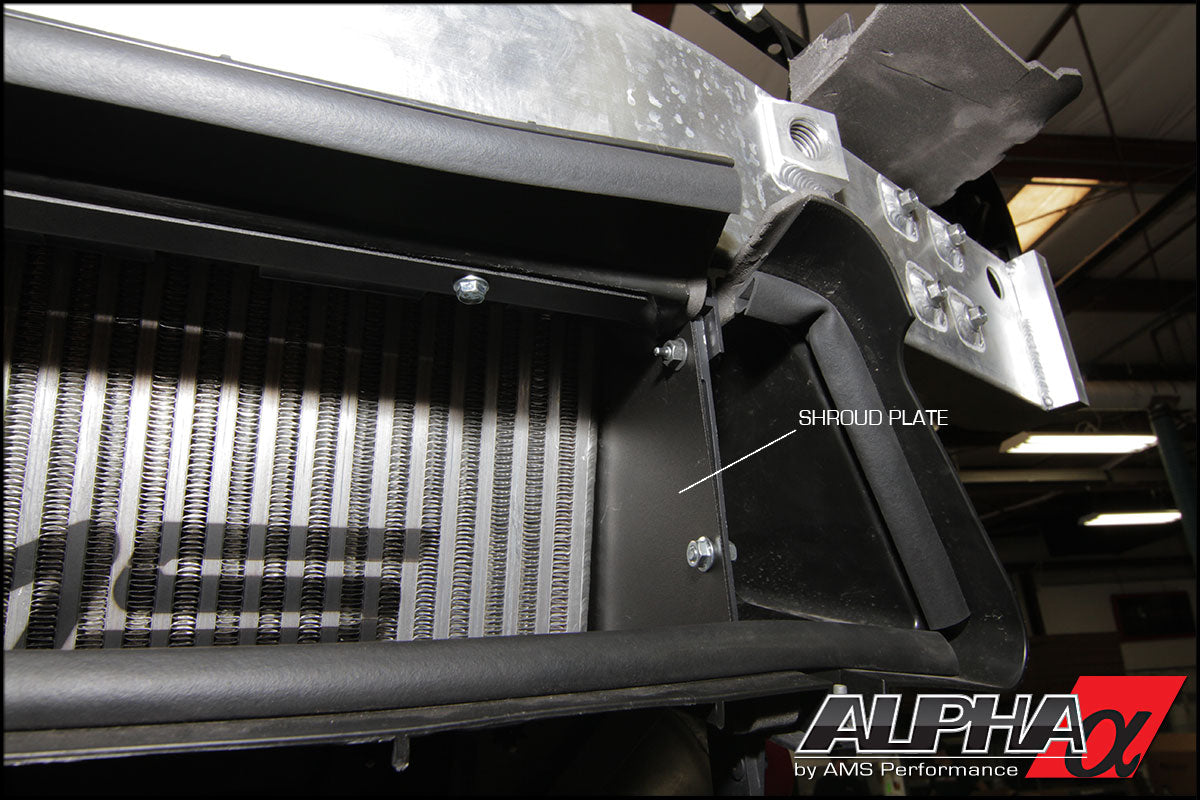

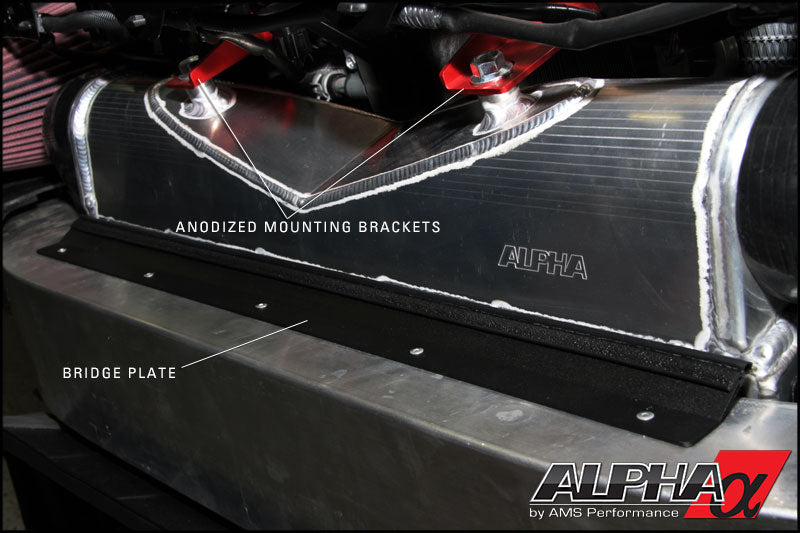

Airflow Management: Included shroud and bridge plates direct ambient air through the intercooler core

Crash Beam Compatibility: Installs without trimming the factory crash beam

Bumper Compatibility: Installs without trimming the factory bumper cover

Piping Compatibility: Works with AMS Alpha piping or compatible 3-inch aftermarket piping following the factory routing

Brand: AMS Performance

Part Number: ALP.07.09.0008-1

Product Series: Alpha Race

Part Type: Front mount intercooler

Vehicle Platform: Nissan GT-R R35

Engine Application: VR38DETT 3.8L twin-turbo V6

Core Manufacturer: Garrett

Core Construction: Bar-and-plate

Core Flow Orientation: Vertical flow

Core Width: 22 in.

Core Height: 14 in.

Core Thickness: 4.5 in.

Air Volume Increase: 92.5% greater than stock

Fin Density: Up to twice the density of many aftermarket intercooler cores

Inlet Size: 3 in.

Outlet Size: 3 in.

Inlet and Outlet Material: CNC-machined billet aluminum

Maximum Recommended Power: Approximately 1,400 hp

Recommended Power Range: 1,000-1,400 hp

Approximate Wheel Horsepower Range: 800-1,200 whp

Estimated Pressure Drop: Less than 1 psi

Intercooler Material: Aluminum

Assembly Method: TIG welded

Silicone Couplers Included: Yes, four-ply reinforced

Hose Clamps Included: Yes

Shroud and Bridge Plates Included: Yes

Mounting Brackets Included: Yes

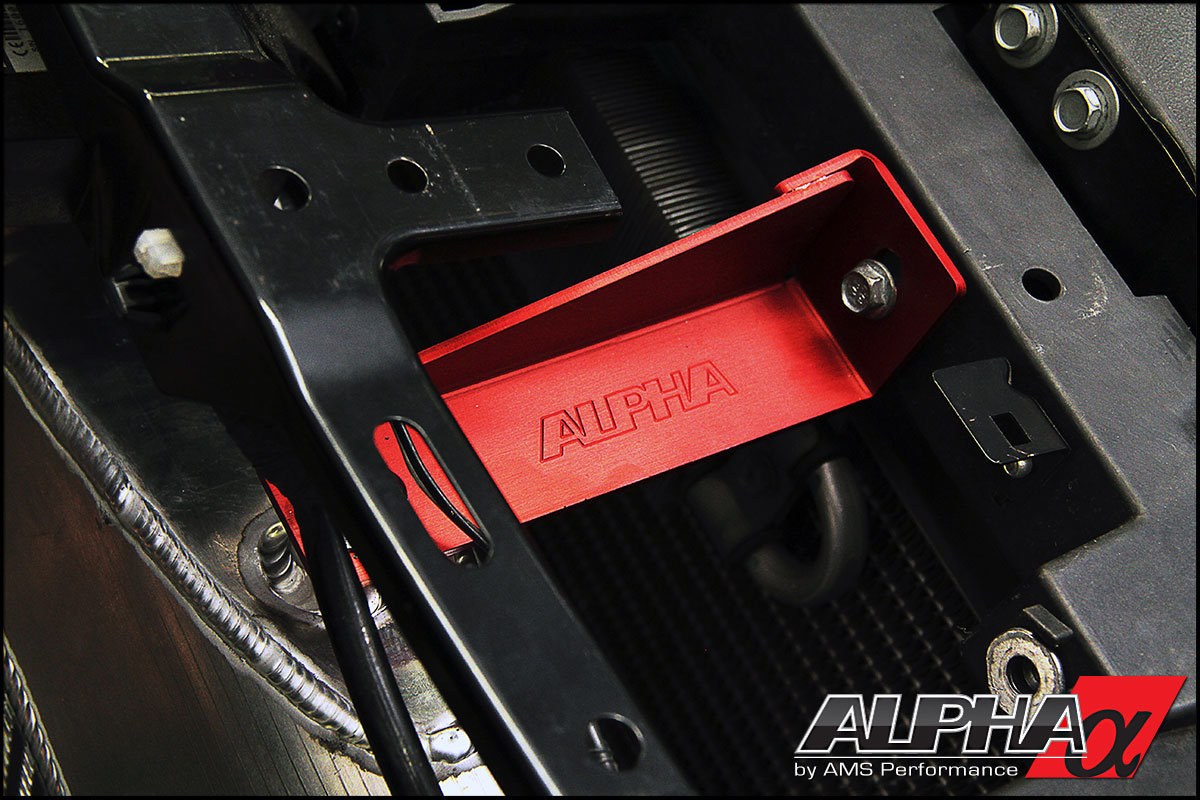

Horn Relocation Brackets Included: Yes

Mounting Hardware Included: Yes

Quantity: 1 complete intercooler kit

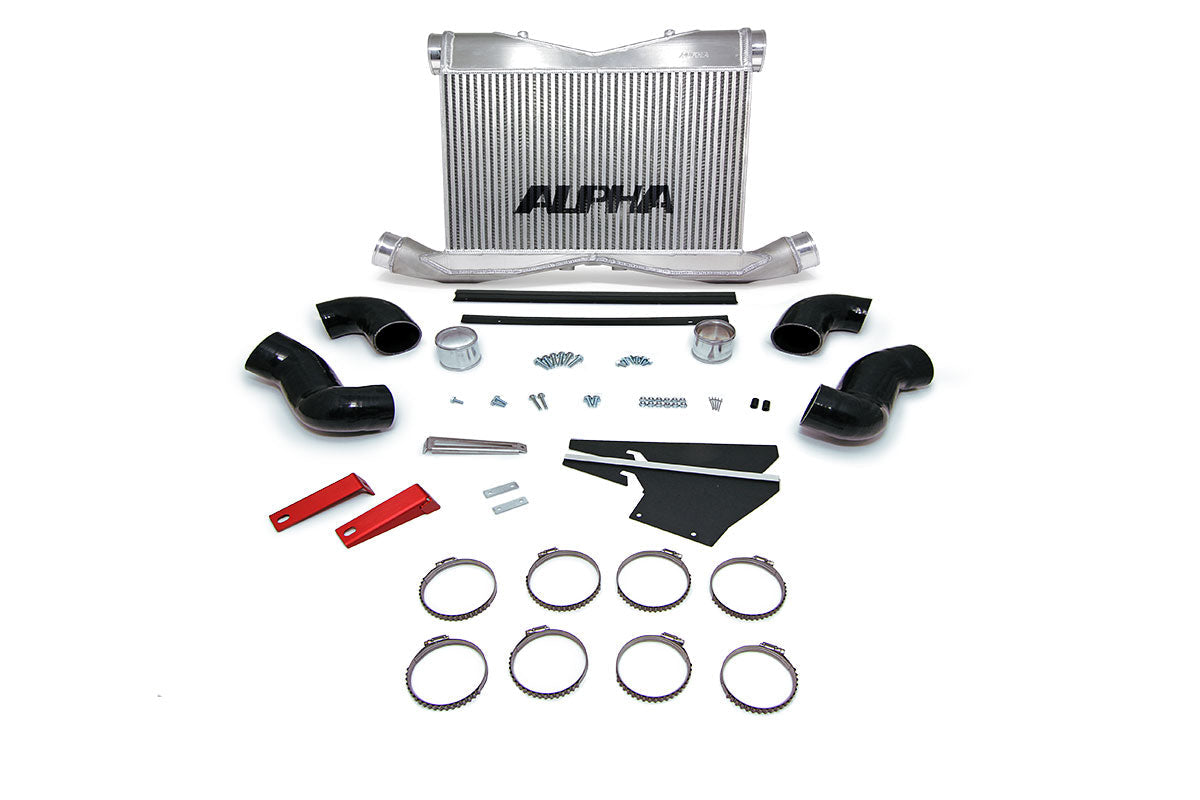

What's Included: Front mount intercooler, four-ply silicone couplers, hose clamps, shroud and bridge plates, mounting brackets, fasteners, mounting hardware, and horn relocation brackets

AMS Performance is an American automotive engineering and performance-parts manufacturer specializing in high-powered turbocharged vehicles. Founded in 2001, AMS combines computer-aided design, mechanical engineering, motorsports development and extensive real-world testing to create individual components and complete performance packages. The company also provides in-house ECU calibration, product installation, engine building and transmission services. Its product range includes turbo kits, intercoolers, intake systems, exhaust components, fuel-system upgrades, cooling products, engine components and drivetrain solutions for Nissan, Mitsubishi, Audi, Lamborghini, Toyota, Infiniti and other performance platforms.

AMS began developing Nissan R35 GT-R products in 2009 and quickly became one of the most recognized names in GT-R performance through its ALPHA and OMEGA programs. In 2010, an AMS ALPHA 9 became the first R35 GT-R to record a nine-second quarter-mile pass, beginning a long history of GT-R racing records and high-horsepower development. Today, AMS Performance offers R35 GT-R turbo kits, intercoolers, intake manifolds, fuel-system components, exhaust upgrades, engine parts and complete performance packages for street, drag-racing and competition builds. Whether upgrading a mostly stock VR38DETT or assembling a high-output R35 GT-R, AMS products are developed to deliver engineered fitment, proven performance and compatibility across complete vehicle systems.

AMS-manufactured components are covered by a limited warranty for 12 months or 12,000 miles from the invoice date, whichever occurs first, for the original purchaser. Coverage is limited to defects in AMS materials or workmanship and generally provides repair or replacement of the affected AMS component. Certain specialized products may include different product-specific warranty terms.

The warranty does not generally cover improper installation, misuse, neglect, unauthorized modification, racing or competitive use, normal wear, maintenance items, contaminated fuel, collisions, damage caused by other manufacturers’ components, vehicle downtime, towing, rental vehicles or incidental expenses. Labor is not automatically covered unless the product was originally installed or serviced at AMS Performance’s facility. Components made by another manufacturer are subject to that manufacturer’s warranty rather than AMS coverage.

To begin a claim, contact Elite GT-R Parts with:

• Your order number and AMS part number

• A description of the problem

• Clear photographs or video of the affected component

• Relevant installation, maintenance or tuning information


Do not return the product before receiving authorization. AMS requires warranty returns to be approved in advance and accompanied by an issued Return Merchandise Authorization. Final coverage and resolution are determined by AMS Performance under its current warranty terms.
