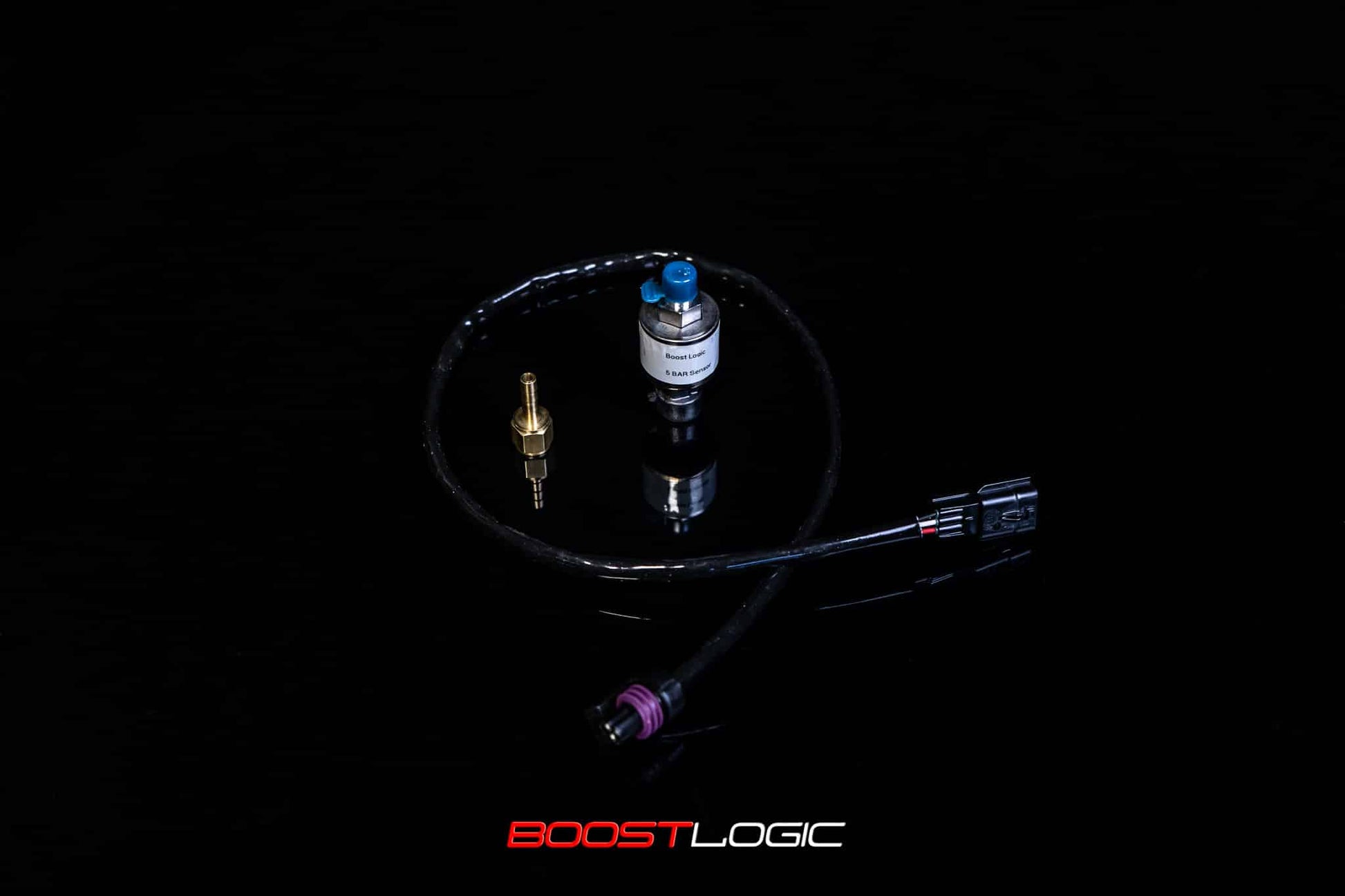

The Boost Logic 5 Bar P&P Map Sensor Kit allows the sensor to be installed into the intake manifold of the GTR and keep the key features of all stock components to revert your car back to stock at any time!
Simplest and Safest solution We’ve developed a plug and play solution for those exceeding the limitations of the factory MAP sensor (3 Bar scale). Converting to a 5 Bar map sensor has been made quick and easy with our plug and play harness; a 5 Bar map sensor will allow you to scale and tune for up to 58.8 Psi of boost.
Installation Options Our kit can either be installed using the supplied barb fitting or the adaptor can be used to attach the MAP sensor to a 4an line. The 1/8” NPT sensor threads mean that the sensor can be adapted to a variety of manifold ports, vacuum blocks or bungs.
Key Features:
- Safely tune beyond factory boost levels
- Variety of installation options
- No cutting of your expensive OEM wiring harness
- Completely reversible
- Insulated heat tubing on wires for long, reliable life

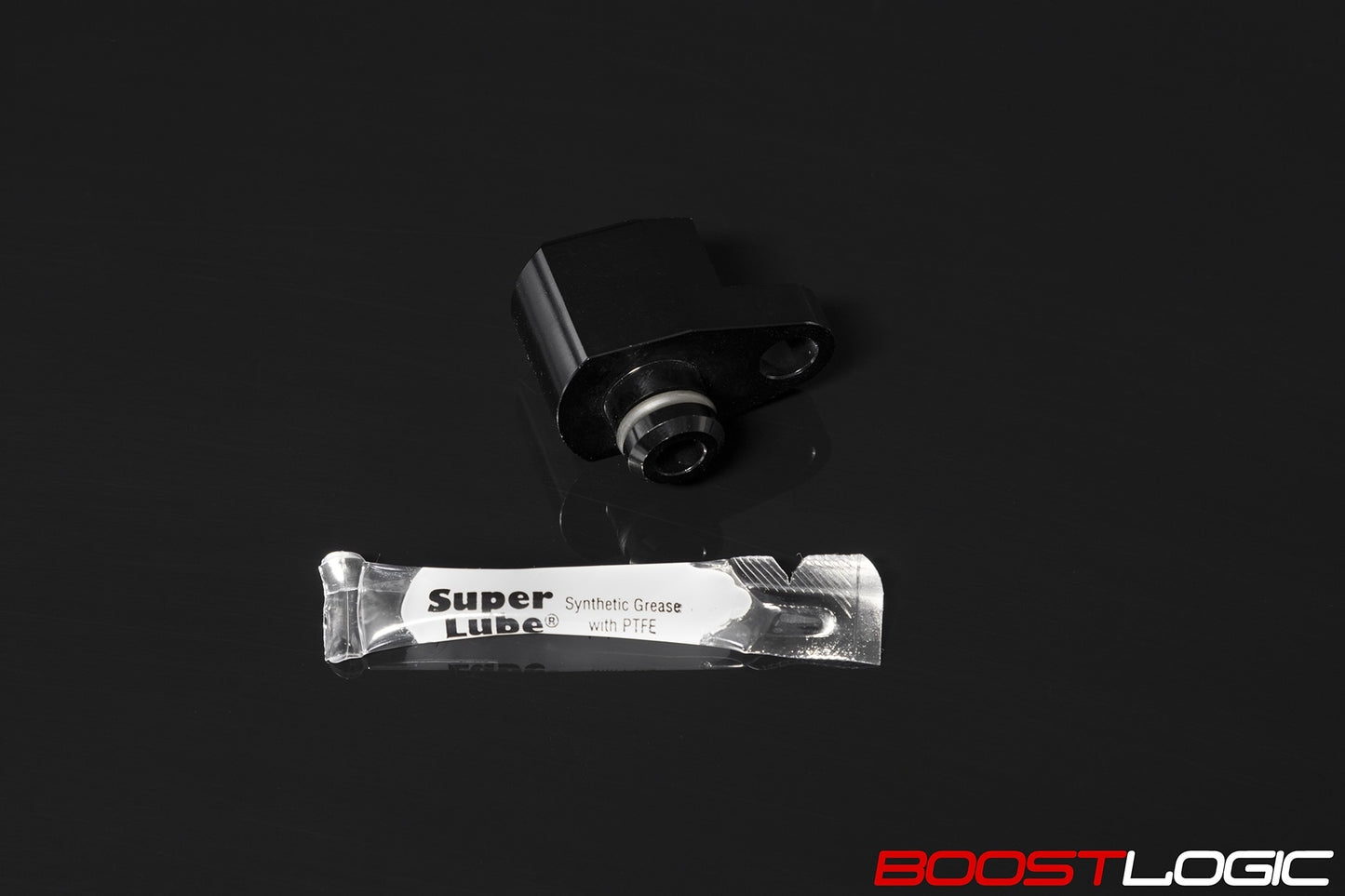

Optional Extra Boost Logic 5 Bar Map Sensor Adapter for OEM Port. We recommend using this while adding 5 bar map sensors to your upper intercooler piping.
NOTE: You must retune and rescale to properly and safely use this product.
Minimum Voltage: 0.5 Vdc
Minimum Pressure: -14.7 Psi / 0 kPa
Maximum Voltage: 4.5 Vdc
Maximum Pressure: 60.3 Psi / 515.754 kPa
Scale: Linear
Transfer Function: PSI = (18.75 * Voltage) – 24.075
