Brembo Premium Floating Front Brake Rotor & Ceramic Pad Kit for 2011-2024 Nissan GT-R - KT00745

Product Type: Complete front brake rotor and pad kit

Rotor Design: Two-piece floating rotor with aluminum hat

Rotor Material: High-carbon cast iron friction ring

Weight Reduction: Lightweight bi-material construction reduces unsprung mass

Cooling Technology: Brembo PVT ventilation improves cooling efficiency

Fade Resistance: Designed for consistent braking under demanding conditions

Rotor Protection: Anti-corrosion coated rotor surfaces

Brake Pads: Brembo Prime Ceramic low-dust brake pads

Driving Comfort: Engineered to reduce brake noise and vibration

Dust Reduction: Ceramic friction compound helps keep wheels cleaner

Certification: ECE R90 certified rotor design

Direct Replacement: OE-equivalent fit for factory iron braking systems

Brand: Brembo

Part Number: KT00745

Part Type: Front brake rotor and pad kit

Brake Position: Front

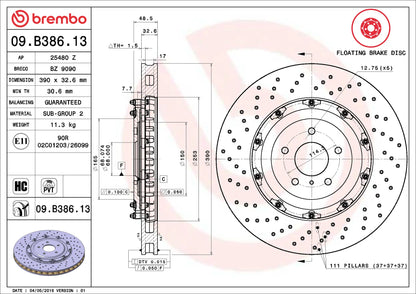

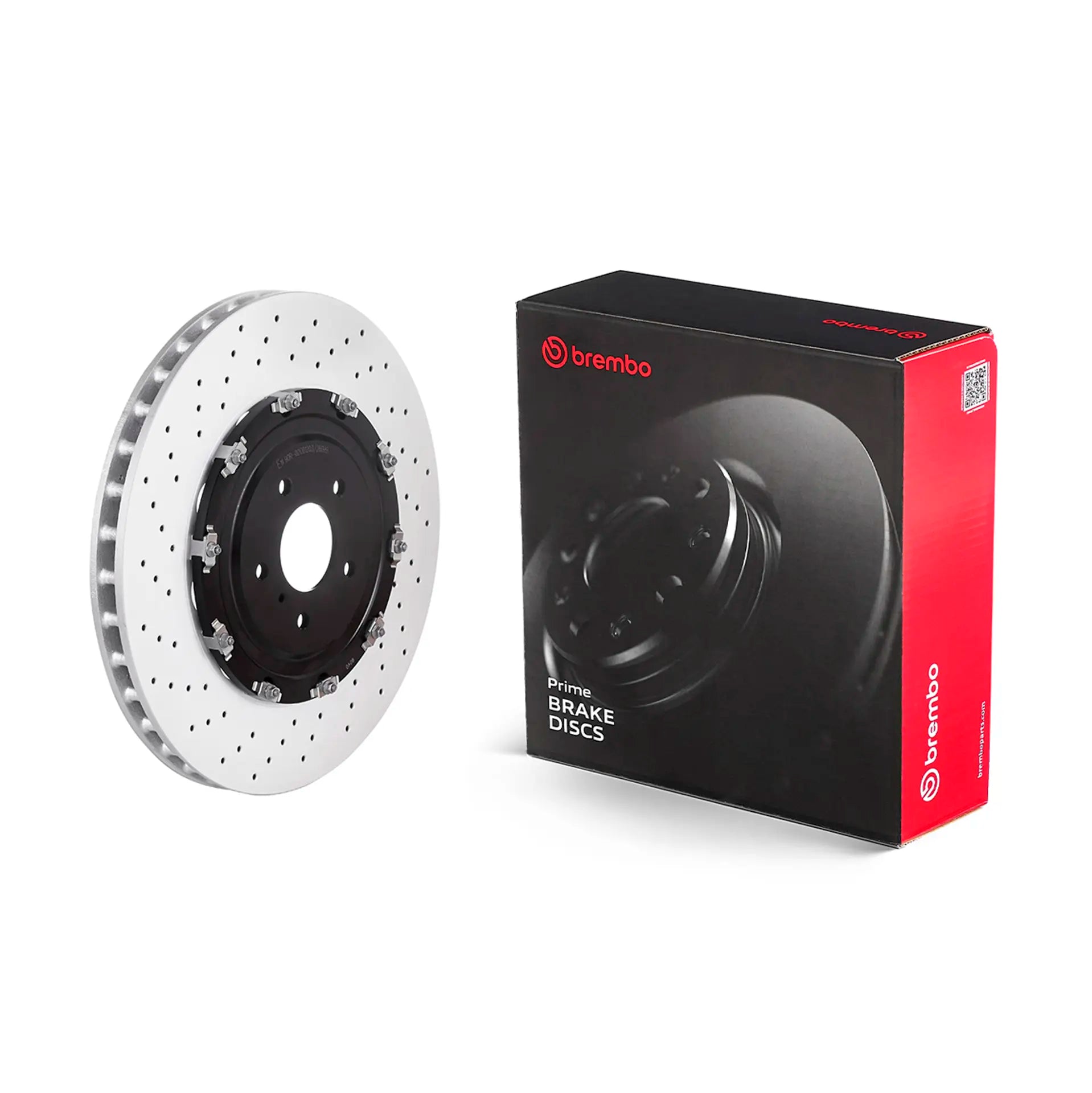

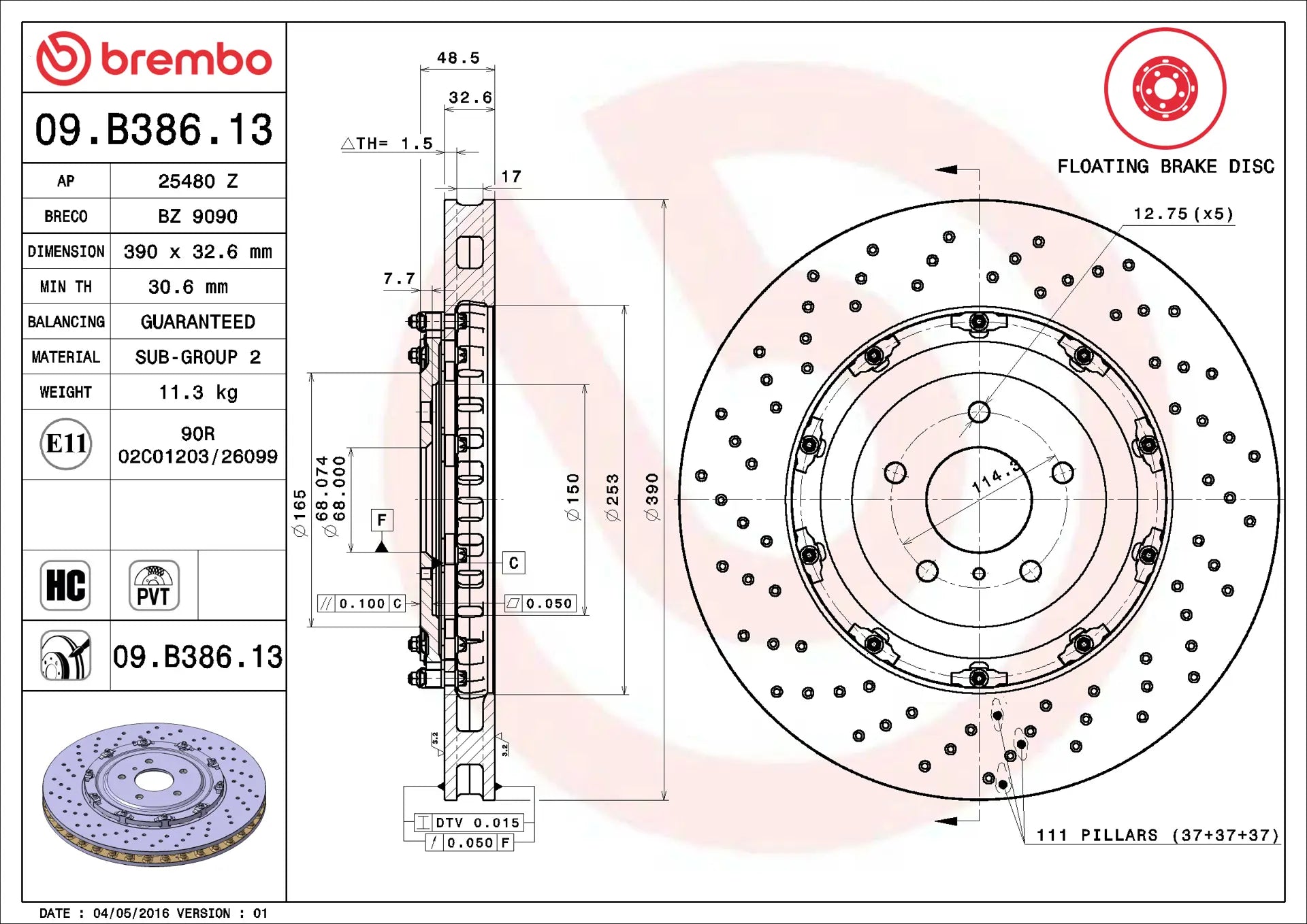

Rotor Part Number: 09.B386.13 (Qty. 2)

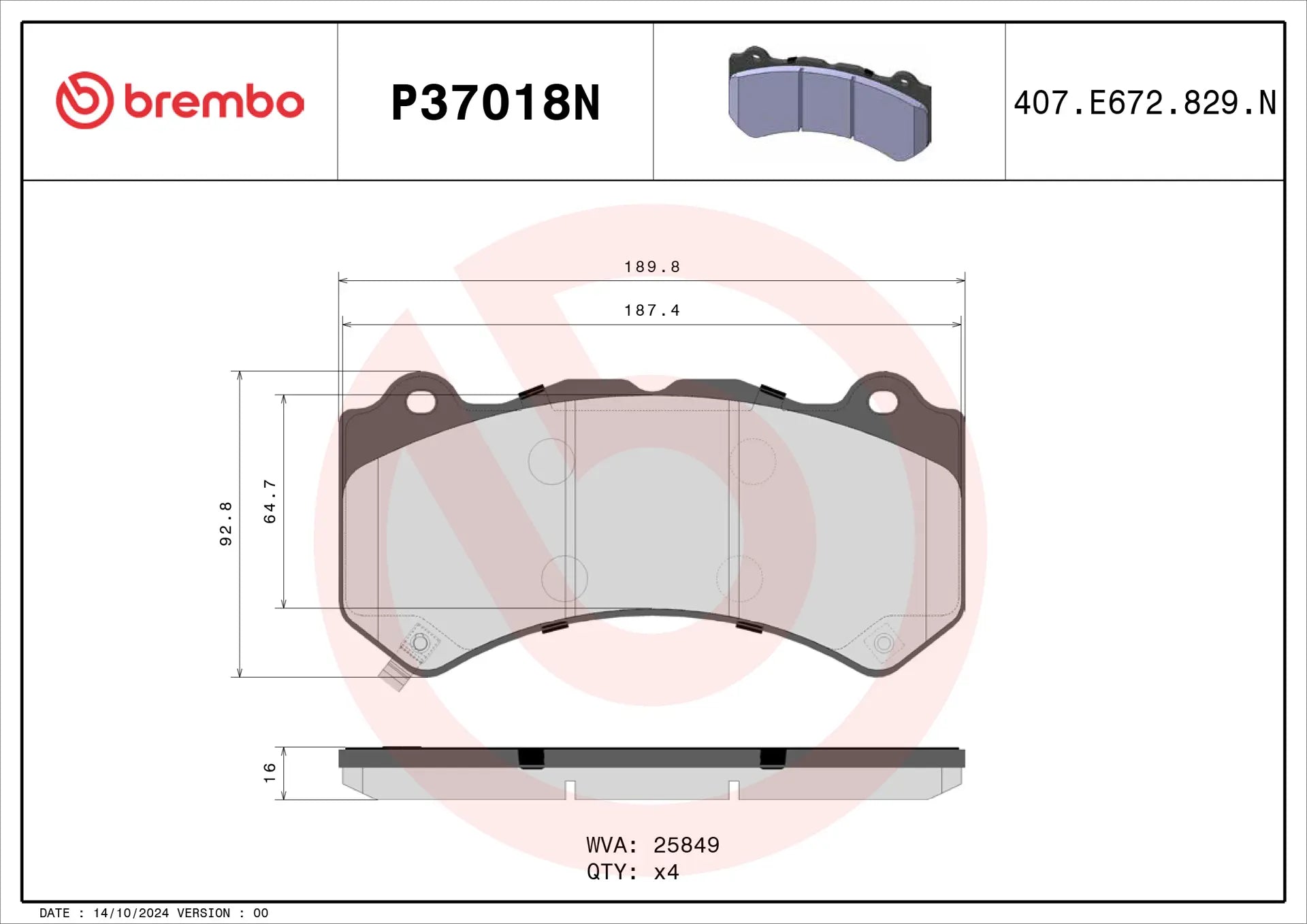

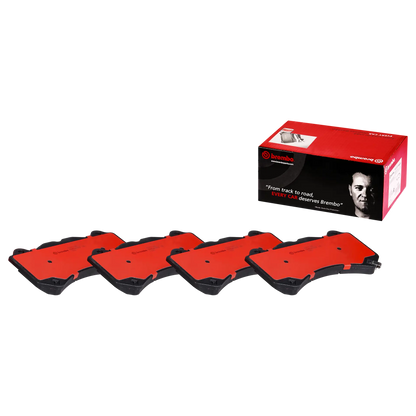

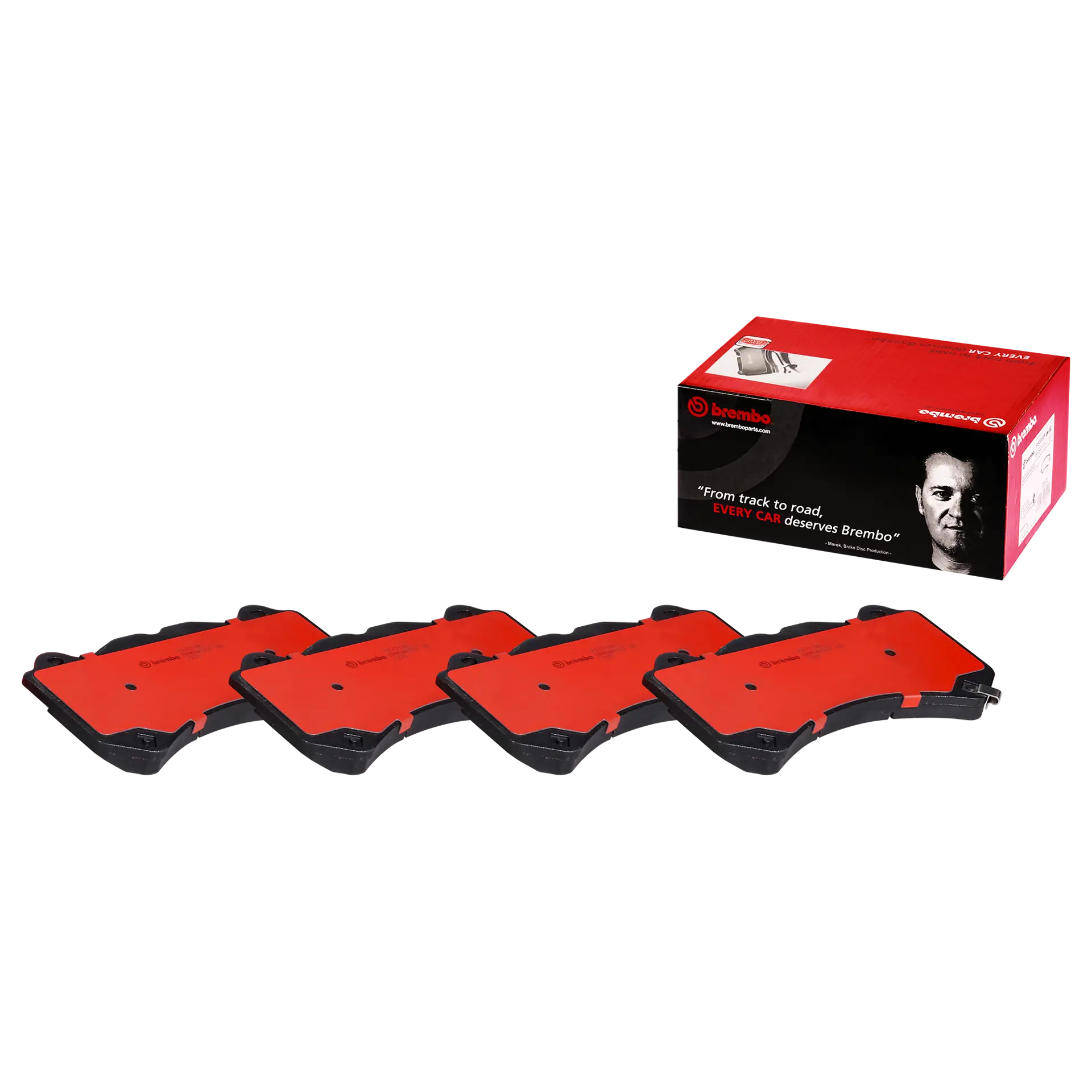

Brake Pad Part Number: P37018N (Qty. 1 set)

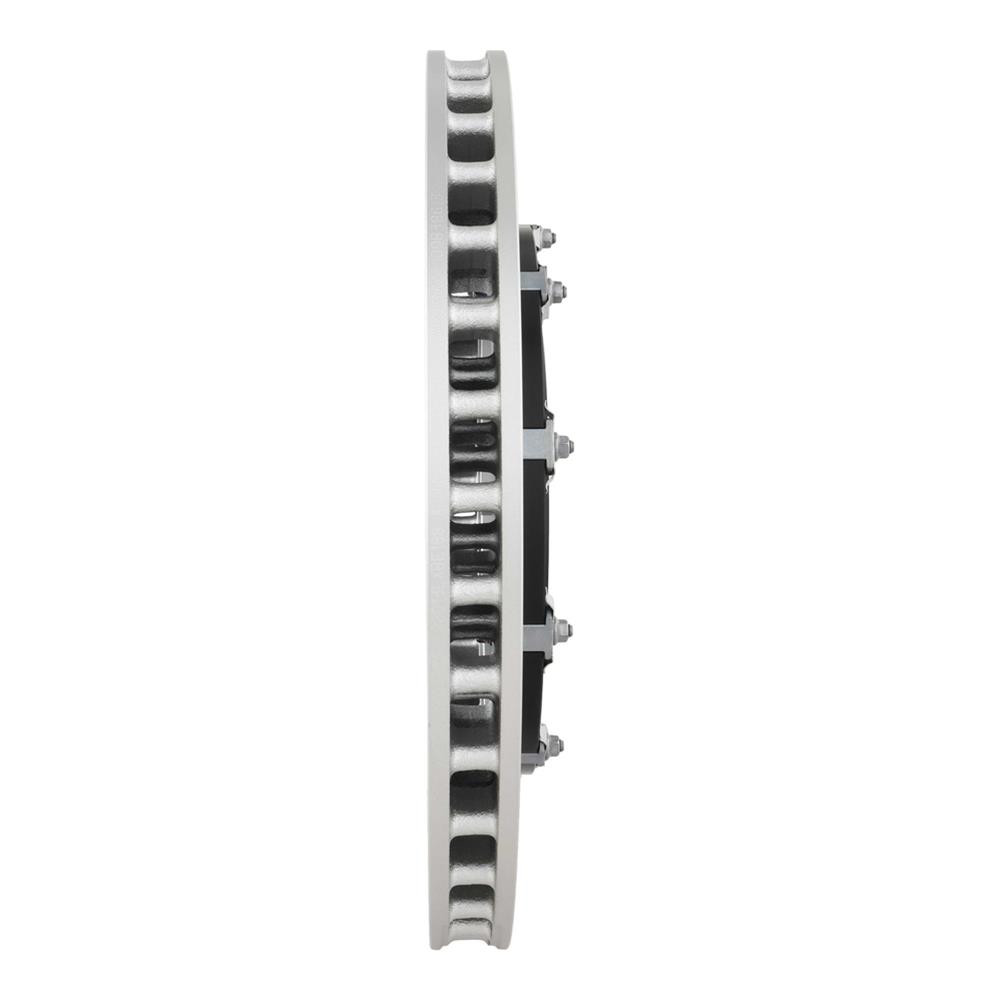

Rotor Construction: Two-piece floating, vented

Rotor Material: High-carbon cast iron friction ring with aluminum hat

Rotor Diameter: 390 mm

Rotor Thickness: 32.6 mm

Minimum Rotor Thickness: 30.6 mm

Rotor Height: 49 mm

Center Bore: 68 mm

Bolt Pattern: 5-hole

Ventilation: Brembo PVT ventilation

Rotor Finish: Anti-corrosion coating

Brake Pad Material: Ceramic

Brake Pad Construction: Integrally molded

Brake Pad Width: 190 mm

Brake Pad Height: 93 mm

Brake Pad Thickness: 16 mm

Braking System: Brembo

WVA Numbers: 25849, 25859

FMSI Numbers: D1382 9040, D1405 8513, D1405 9037

Wear Indicator: Acoustic

Shims Included: Yes, anti-squeal shims

Electronic Wear Sensor Included: No

Quantity: 1 front brake kit

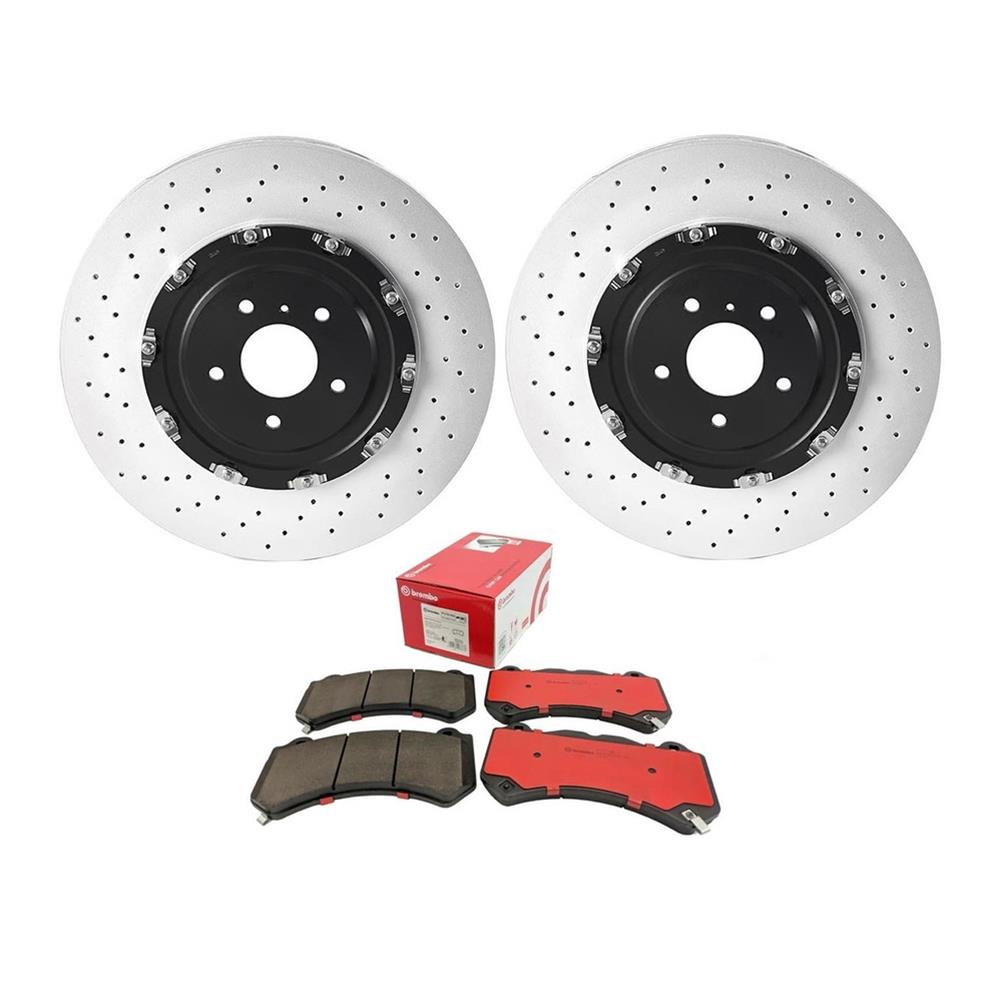

What's Included: Two Brembo 09.B386.13 floating front brake rotors and one Brembo P37018N Prime Ceramic front brake pad set with anti-squeal shims

Brembo is an Italian braking-system manufacturer founded in 1961 and recognized worldwide for developing components for original-equipment, replacement, high-performance and motorsport applications. Its product range includes brake discs, pads, calipers, brake fluid, complete GT brake kits and dedicated racing systems. Brembo works directly with major vehicle manufacturers while applying knowledge gained through Formula 1 and other forms of professional motorsport to its road and aftermarket products. From OE-equivalent replacement brakes to oversized multi-piston systems, Brembo products are engineered around braking performance, heat management, pedal response, reliability and vehicle-specific compatibility.

For Nissan Skyline GT-R and R35 GT-R owners, Brembo offers replacement brake components and complete performance upgrades for street, track-day and competition-focused builds. Available products include OE-style rotors and pads, drilled or slotted performance discs, fixed aluminum calipers and Brembo GT brake systems with larger discs, brackets, hoses and installation hardware. Brembo has offered GT brake-kit applications for the R32, R33 and R34 Skyline GT-R, while the R35 GT-R is also closely associated with Brembo braking technology.

Brembo products sold in the United States through an authorized seller include a 24-month limited manufacturer’s warranty beginning on the date of delivery to the original purchaser. The warranty is nontransferable and covers defects in Brembo materials or workmanship. An approved claim may result in replacement with the same or a similar Brembo product, or a refund of the original purchase price at Brembo’s discretion.

The warranty does not cover damage caused by:

• Normal brake wear

• Improper installation or maintenance

• Incorrect fitment or vehicle application

• Misuse, neglect, accidents or collisions

• Chemical corrosion, fire or unauthorized modification

• Noise, vibration, harshness or personal-comfort concerns

• Competition, racing or off-road use


To begin a claim, contact Elite GT-R Parts with your order number, Brembo part number, proof of purchase, a description of the issue and clear photographs of the product. Claims must be reported within 30 days after the defect is discovered. Do not modify or return the product before receiving instructions, as Brembo may require inspection in its original condition. Final warranty eligibility and resolution are determined by Brembo under its current U.S. warranty terms.
