Brembo GT Front 6-Piston 405x34mm Big Brake Kit for Nissan GT-R R35

1 4

$5,295.00

Shipping calculated at checkout.

Brand: Brembo

SKU: BRB1N1.9543A2

Availability: In stock

Product Type: Big Brake Kits

Rotor Style Cross Drilled Type-1 Slotted Type-3 Slotted

Caliper Color Red Black Silver Yellow

Quantity

View full details

Description

Wheel Clearance Required: This 405mm big brake kit may not clear all factory or aftermarket wheels. Compare Brembo’s brake-profile template against the intended wheel before ordering.

Download 1N.9543A Wheel-Clearance Template

How to Measure Brembo Wheel Clearance

Upgrade your Nissan GT-R R35 with the Brembo GT Systems front big brake kit, built around 6-piston cast monobloc calipers and massive 405x34mm two-piece discs. This complete front axle system provides responsive pedal feel, improved heat capacity, and dependable braking performance for high-powered street builds and occasional mild track use.

This main Elite GT-R listing allows you to configure the brake kit around your preferred rotor style and caliper color. Choose Cross Drilled, TY1, or TY3 discs, then select Red, Black, Silver, or Yellow calipers to match the appearance and intended use of your GT-R. Brembo GT Systems are used across many Elite GT-R builds because they combine proven braking performance, application-specific engineering, and complete installation hardware in one package.

Rotor Style Options:

Cross-Drilled: A classic Brembo appearance with drilled rotor surfaces. This option is well suited to street-driven Nissan GT-R R35 builds where appearance, dependable braking and everyday performance are the main priorities.

Type-1 / TY1 Slotted: Uses a straightforward slotted design that helps clean the brake-pad surface and maintain consistent braking response. TY1 is a balanced choice for performance street driving and occasional track use.

Type-3 / TY3 Slotted: Features Brembo’s more aggressive curved slot pattern for stronger initial bite and improved pad conditioning during demanding braking. TY3 is the best choice for frequent track use or drivers wanting the most responsive braking feel.

All three rotor styles use the same 405x34mm two-piece rotor construction and Brembo GT six-piston front calipers. The main difference is the rotor surface design and resulting braking characteristics.

Key Features

Complete front big brake kit for the Nissan GT-R R35

6-piston cast monobloc radial-mount calipers

Large 405x34mm two-piece brake discs

Choice of Cross Drilled, TY1, or TY3 rotor designs

Available with Red, Black, Silver, or Yellow calipers

Advanced high-carbon alloy friction rings

Corrosion-resistant disc plating

Curved 48-vane ventilation for improved heat management

Floating H-Bobbin mounting system with anti-rattle springs

Goodridge stainless steel braided brake lines

Brembo-engineered CNC billet caliper adapters

Pre-assembled for easier installation

Includes all necessary mounting hardware

Ideal for high-performance street use and mild track driving

Sold as a complete front axle set

Technical Specs

Brand: Brembo

Series: GT Systems

Part Type: Big Brake Kit

Position: Front

Caliper Body: Cast monobloc radial mount

Caliper Piston Configuration: 6-piston

Caliper Piston Design: Inner pressure seal

Caliper Dust Protection: OEM-approved dust boot

Available Caliper Colors: Red, Black, Silver, or Yellow

Available Disc Types: Cross Drilled, TY1, or TY3

Disc Material: Advanced high-carbon alloy

Disc Finish: Corrosion-resistant plating

Disc Diameter: 405mm / 15.9 inches

Disc Width: 34mm

Disc Air Gap: 12mm

Disc Annulus: 62mm

Disc Construction: Two-piece disc assembly

Disc Vane Design: Vented curved 48-vane

Disc-to-Hat Mounting System: Floating H-Bobbin with anti-rattle spring

Brake Lines: Proprietary Brembo stainless steel braided brake lines by Goodridge

Caliper Adapters: Brembo-engineered CNC billet adapters

Recommended Use: High-performance street driving and mild track use

Quantity: Complete front axle set

Assembly: Pre-assembled

Includes: Calipers, two-piece discs, braided brake lines, CNC billet caliper adapters, and all necessary mounting hardware

Cross Drilled Part Numbers:

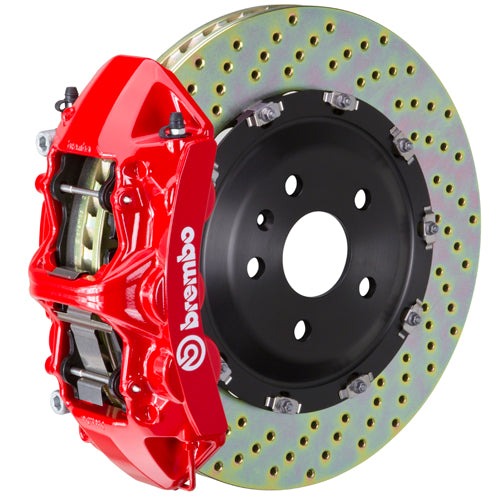

Red: 1N1.9543A2

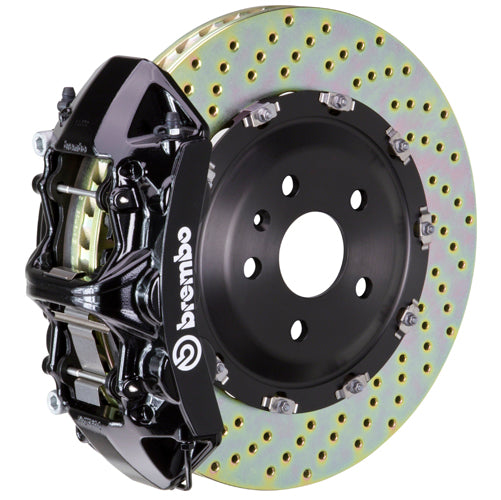

Black: 1N1.9543A1

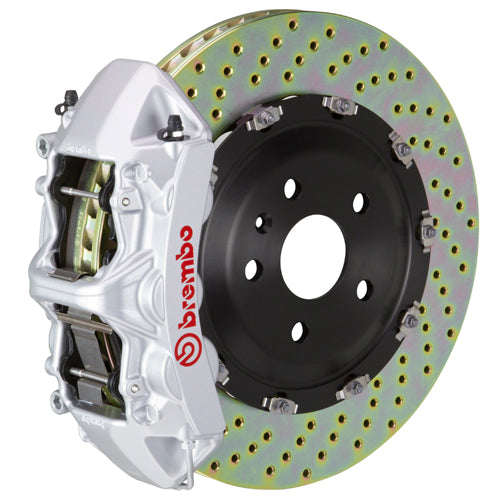

Silver: 1N1.9543A3

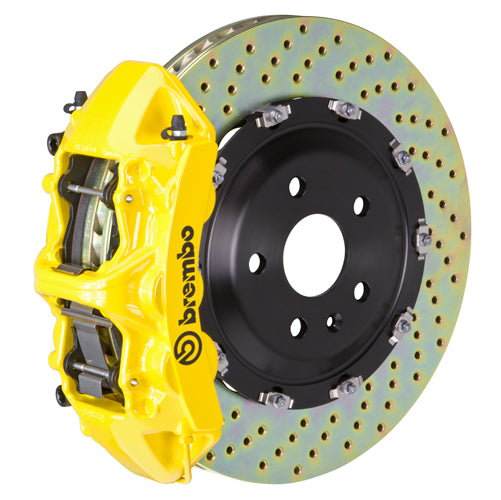

Yellow: 1N1.9543A5

Type-1 / TY1 Slotted Part Numbers:

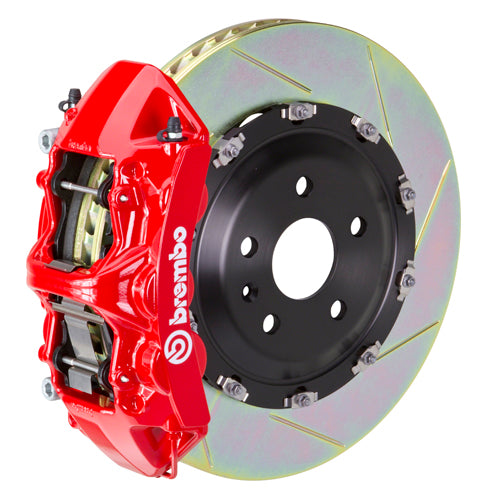

Red: 1N2.9543A2

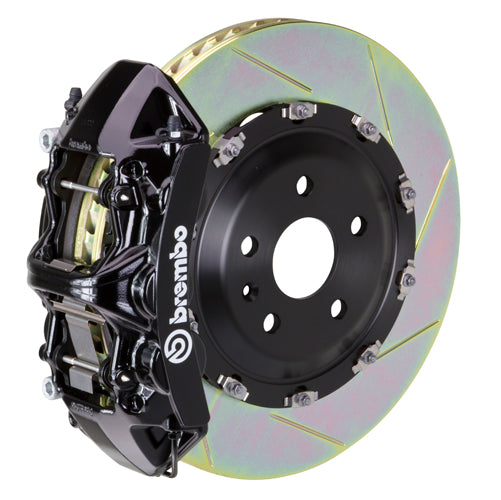

Black: 1N2.9543A1

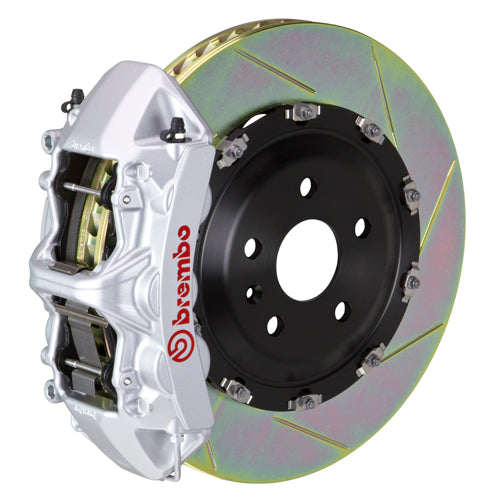

Silver: 1N2.9543A3

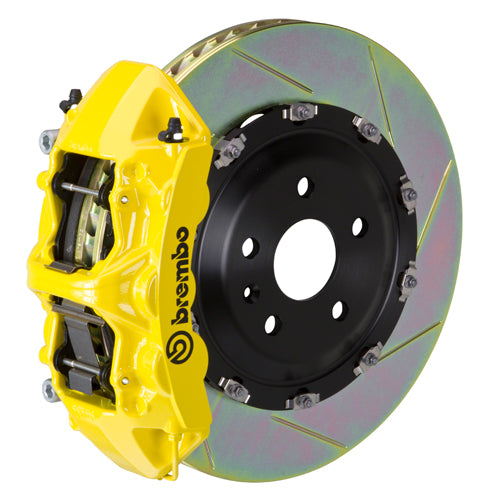

Yellow: 1N2.9543A5

Type-3 / TY3 Slotted Part Numbers:

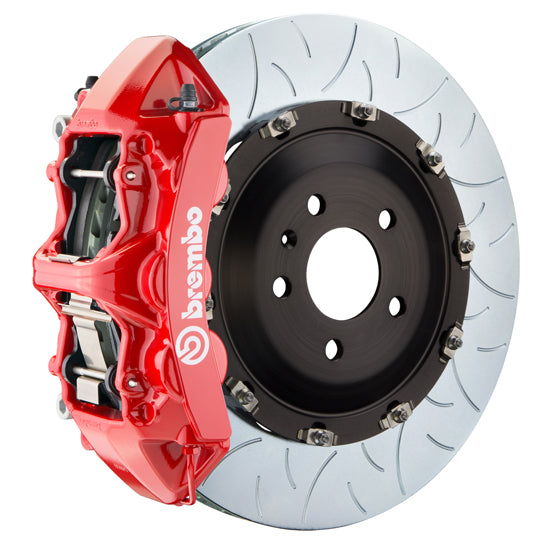

Red: 1N3.9543A2

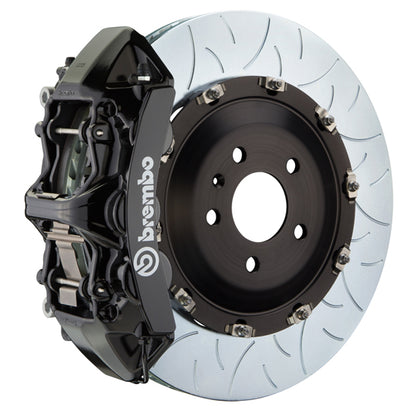

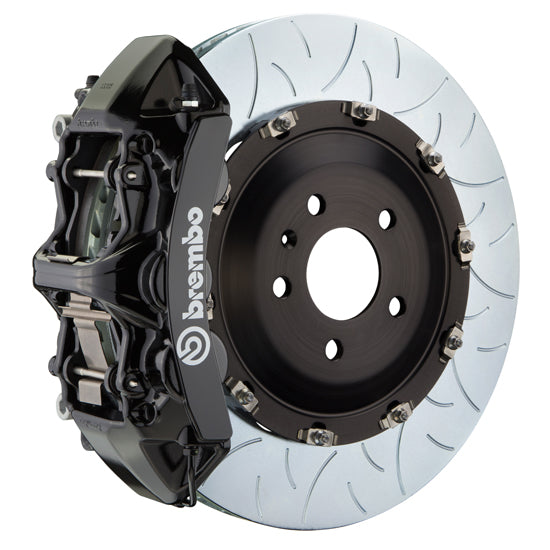

Black: 1N3.9543A1

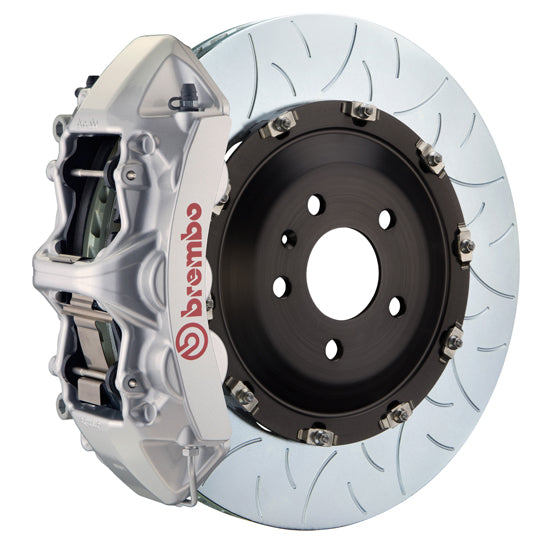

Silver: 1N3.9543A3

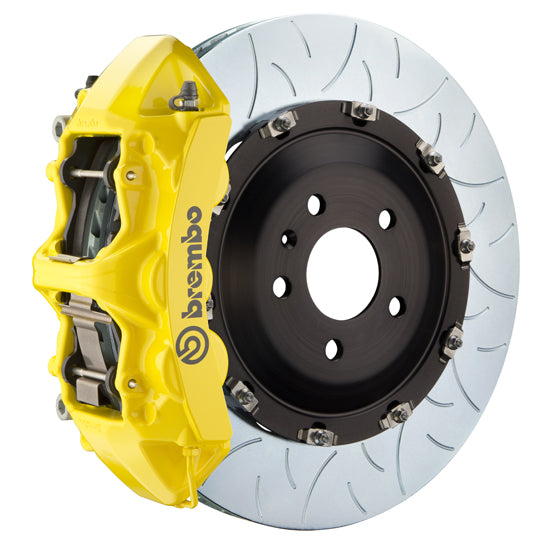

Yellow: 1N3.9543A5

Vehicle Fitment

2009–2024 Nissan GT-R R35

Wheel Clearance Required: This 405mm big brake kit may not clear all factory or aftermarket wheels. Compare Brembo’s brake-profile template against the intended wheel before ordering.

Brand Overview

Brembo is an Italian braking-system manufacturer founded in 1961 and recognized worldwide for developing components for original-equipment, replacement, high-performance and motorsport applications. Its product range includes brake discs, pads, calipers, brake fluid, complete GT brake kits and dedicated racing systems. Brembo works directly with major vehicle manufacturers while applying knowledge gained through Formula 1 and other forms of professional motorsport to its road and aftermarket products. From OE-equivalent replacement brakes to oversized multi-piston systems, Brembo products are engineered around braking performance, heat management, pedal response, reliability and vehicle-specific compatibility.

For Nissan Skyline GT-R and R35 GT-R owners, Brembo offers replacement brake components and complete performance upgrades for street, track-day and competition-focused builds. Available products include OE-style rotors and pads, drilled or slotted performance discs, fixed aluminum calipers and Brembo GT brake systems with larger discs, brackets, hoses and installation hardware. Brembo has offered GT brake-kit applications for the R32, R33 and R34 Skyline GT-R, while the R35 GT-R is also closely associated with Brembo braking technology.

Warranty Information

Brembo products sold in the United States through an authorized seller include a 24-month limited manufacturer’s warranty beginning on the date of delivery to the original purchaser. The warranty is nontransferable and covers defects in Brembo materials or workmanship. An approved claim may result in replacement with the same or a similar Brembo product, or a refund of the original purchase price at Brembo’s discretion.

The warranty does not cover damage caused by:

Normal brake wear
Improper installation or maintenance
Incorrect fitment or vehicle application
Misuse, neglect, accidents or collisions
Chemical corrosion, fire or unauthorized modification
Noise, vibration, harshness or personal-comfort concerns
Competition, racing or off-road use

To begin a claim, contact Elite GT-R Parts with your order number, Brembo part number, proof of purchase, a description of the issue and clear photographs of the product. Claims must be reported within 30 days after the defect is discovered. Do not modify or return the product before receiving instructions, as Brembo may require inspection in its original condition. Final warranty eligibility and resolution are determined by Brembo under its current U.S. warranty terms.
