Brembo GT|R Front 6-Piston Billet 405x34mm Big Brake Kit for Nissan GT-R R35

1 1

$9,995.00

Shipping calculated at checkout.

Brand: Brembo

SKU: BRB1N1.9543AR

Availability: In stock

Product Type: Big Brake Kits

Rotor Style Cross Drilled Type-1 Slotted Type-3 Slotted

Quantity

View full details

Description

Wheel Clearance Required: This 405mm big brake kit may not clear all factory or aftermarket wheels. Compare Brembo’s brake-profile template against the intended wheel before ordering.

Download 1N.9543A Wheel-Clearance Template

How to Measure Brembo Wheel Clearance

Upgrade your Nissan GT-R R35 with the Brembo GT|R Systems front big brake kit, engineered around 6-piston billet monobloc radial-mount calipers and large 405x34mm two-piece discs. This complete front axle system delivers precise pedal response, increased heat capacity, and dependable braking consistency for high-performance street driving, track use, and mild race applications.

This Elite GT-R main hub listing lets customers select between Cross Drilled, TY1, and TY3 disc configurations. Every version features nickel-plated billet calipers, corrosion-resistant two-piece discs and application-specific mounting hardware. Brembo GT|R Systems are an excellent fit for Elite GT-R builds that need more track capability than a traditional street-focused upgrade while retaining practical drivability and complete application-specific engineering.

Rotor Style Options:

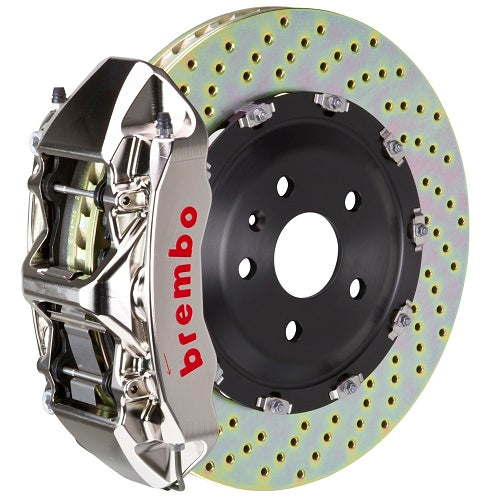

Cross-Drilled: Provides the traditional Brembo drilled-rotor appearance and is a strong choice for street-driven R35 GT-R builds where style and dependable performance are the main priorities.

Type-1 / TY1 Slotted: Uses a straightforward slot pattern that helps condition the brake-pad surface and maintain consistent response. This is a balanced option for performance street driving and occasional track use.

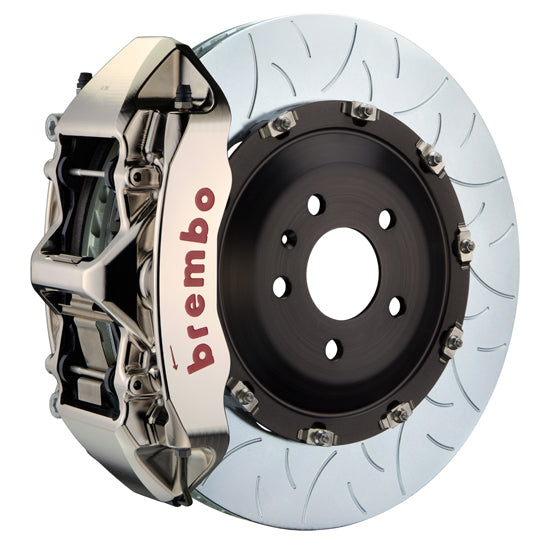

Type-3 / TY3 Slotted: Uses Brembo’s more aggressive curved slot pattern for stronger initial response and pad conditioning during repeated hard braking. This is the most aggressive of the three rotor patterns and is well suited to repeated hard braking and track-focused use.

All three options use the same 405x34mm two-piece rotor construction and nickel-plated six-piston billet calipers. Only the rotor-face design changes.

Key Features

Complete front big brake kit for the Nissan GT-R R35

Brembo GT|R Systems performance braking package

Billet monobloc radial-mount 6-piston calipers

Nickel-plated caliper finish

Large 405x34mm two-piece brake discs

Choice of Cross Drilled, TY1, or TY3 disc styles

Advanced high-carbon alloy friction rings

Corrosion-resistant disc plating

Vented curved 48-vane internal disc design

Floating H-Bobbin mounting system with anti-rattle springs

Ventilated stainless steel piston inserts

Goodridge stainless steel braided brake lines

Brembo-engineered CNC billet caliper adapters

Pre-assembled for easier installation

Designed for street, track, and mild race use

Sold as a complete front axle set

Technical Specs

Brand: Brembo

Series: GT|R Systems

Part Type: Big Brake Kit

Position: Front

Main MPN: GT-R-1N-.9543A

Cross Drilled Part Number: 1N1.9543AR

TY1 Part Number: 1N2.9543AR

TY3 Part Number: 1N3.9543AR

Caliper Body: Billet monobloc radial mount

Caliper Piston Configuration: 6-piston

Caliper Piston Design: Inner pressure seal

Caliper Dust Protection: Recessed dust boot

Caliper Insert Type: Ventilated stainless steel insert

Caliper Finish: Nickel plated

Available Disc Types: Cross Drilled, TY1, or TY3

Disc Material: Advanced high-carbon alloy

Disc Finish: Corrosion-resistant plating

Disc Diameter: 405mm / 15.9 inches

Disc Width: 34mm

Disc Air Gap: 12mm

Disc Annulus: 62mm

Disc Construction: Two-piece disc assembly

Disc Vane Design: Vented curved 48-vane

Disc-to-Hat Mounting System: Floating H-Bobbin with anti-rattle spring

Brake Lines: Proprietary Brembo stainless steel braided brake lines by Goodridge

Caliper Adapters: Brembo-engineered CNC billet adapters

Recommended Use: Street, track, and mild race use

Quantity: Complete front axle set

Assembly: Pre-assembled

Includes: Billet monobloc calipers, two-piece discs, braided brake lines, CNC billet caliper adapters, and all necessary mounting hardware

Available Configurations

Cross Drilled: Part number 1N1.9543AR
TY1: Part number 1N2.9543AR
TY3: Part number 1N3.9543AR
Caliper Finish: Nickel plated
Brake System Color: Silver

Vehicle Fitment

2009-2024 Nissan GT-R R35

Wheel Clearance Required: This 405mm big brake kit may not clear all factory or aftermarket wheels. Compare Brembo’s brake-profile template against the intended wheel before ordering.

Brand Overview

Brembo is an Italian braking-system manufacturer founded in 1961 and recognized worldwide for developing components for original-equipment, replacement, high-performance and motorsport applications. Its product range includes brake discs, pads, calipers, brake fluid, complete GT brake kits and dedicated racing systems. Brembo works directly with major vehicle manufacturers while applying knowledge gained through Formula 1 and other forms of professional motorsport to its road and aftermarket products. From OE-equivalent replacement brakes to oversized multi-piston systems, Brembo products are engineered around braking performance, heat management, pedal response, reliability and vehicle-specific compatibility.

For Nissan Skyline GT-R and R35 GT-R owners, Brembo offers replacement brake components and complete performance upgrades for street, track-day and competition-focused builds. Available products include OE-style rotors and pads, drilled or slotted performance discs, fixed aluminum calipers and Brembo GT brake systems with larger discs, brackets, hoses and installation hardware. Brembo has offered GT brake-kit applications for the R32, R33 and R34 Skyline GT-R, while the R35 GT-R is also closely associated with Brembo braking technology.

Warranty Information

Brembo products sold in the United States through an authorized seller include a 24-month limited manufacturer’s warranty beginning on the date of delivery to the original purchaser. The warranty is nontransferable and covers defects in Brembo materials or workmanship. An approved claim may result in replacement with the same or a similar Brembo product, or a refund of the original purchase price at Brembo’s discretion.

The warranty does not cover damage caused by:

Normal brake wear
Improper installation or maintenance
Incorrect fitment or vehicle application
Misuse, neglect, accidents or collisions
Chemical corrosion, fire or unauthorized modification
Noise, vibration, harshness or personal-comfort concerns
Competition, racing or off-road use

To begin a claim, contact Elite GT-R Parts with your order number, Brembo part number, proof of purchase, a description of the issue and clear photographs of the product. Claims must be reported within 30 days after the defect is discovered. Do not modify or return the product before receiving instructions, as Brembo may require inspection in its original condition. Final warranty eligibility and resolution are determined by Brembo under its current U.S. warranty terms.
