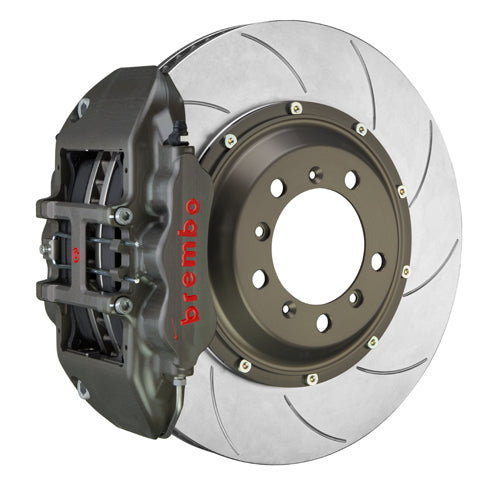

Brembo Race Systems Front 6-Piston 380mm Big Brake Kit for 2009-2024 GT-R R35 - 3KC.9045A

Complete front big brake kit for the 2009-2024 Nissan GT-R R35

Compatible with standard GT-R and applicable NISMO models

Billet monobloc 6-piston calipers

Large 380x34mm two-piece brake discs

TY5 disc design

Advanced high-carbon alloy friction rings

Vented curved 48-vane internal disc design

Goodridge stainless steel braided brake lines

Brembo-engineered CNC billet caliper adapters

Pre-assembled for easier installation

Designed for street, track, and race use

Sold as a complete front axle set

Brand: Brembo

Series: Race Systems

Part Type: Big Brake Kit

Position: Front

Primary Part Number: 3KC.9045A

Additional MPN: RC-3K-.9045A

Caliper Body: Billet monobloc

Caliper Piston Configuration: 6-piston

Caliper Piston Design: Inner pressure seal

Caliper Insert Type: Stainless steel insert

Disc Type: TY5

Disc Material: Advanced high-carbon alloy

Disc Finish: Unplated

Disc Diameter: 380mm / 15 inches

Disc Width: 34mm

Disc Annulus: 65mm

Disc Construction: Two-piece disc assembly

Disc Vane Design: Vented curved 48-vane

Brake Lines: Proprietary Brembo stainless steel braided brake lines by Goodridge

Caliper Adapters: Brembo-engineered CNC billet adapters

Application: Street, track, and race

Quantity: Complete front axle set

Assembly: Pre-assembled

Includes: Billet monobloc calipers, two-piece discs, braided brake lines, CNC billet caliper adapters, and all necessary mounting hardware

Brembo is an Italian braking-system manufacturer founded in 1961 and recognized worldwide for developing components for original-equipment, replacement, high-performance and motorsport applications. Its product range includes brake discs, pads, calipers, brake fluid, complete GT brake kits and dedicated racing systems. Brembo works directly with major vehicle manufacturers while applying knowledge gained through Formula 1 and other forms of professional motorsport to its road and aftermarket products. From OE-equivalent replacement brakes to oversized multi-piston systems, Brembo products are engineered around braking performance, heat management, pedal response, reliability and vehicle-specific compatibility.

For Nissan Skyline GT-R and R35 GT-R owners, Brembo offers replacement brake components and complete performance upgrades for street, track-day and competition-focused builds. Available products include OE-style rotors and pads, drilled or slotted performance discs, fixed aluminum calipers and Brembo GT brake systems with larger discs, brackets, hoses and installation hardware. Brembo has offered GT brake-kit applications for the R32, R33 and R34 Skyline GT-R, while the R35 GT-R is also closely associated with Brembo braking technology.

Brembo products sold in the United States through an authorized seller include a 24-month limited manufacturer’s warranty beginning on the date of delivery to the original purchaser. The warranty is nontransferable and covers defects in Brembo materials or workmanship. An approved claim may result in replacement with the same or a similar Brembo product, or a refund of the original purchase price at Brembo’s discretion.

The warranty does not cover damage caused by:

• Normal brake wear

• Improper installation or maintenance

• Incorrect fitment or vehicle application

• Misuse, neglect, accidents or collisions

• Chemical corrosion, fire or unauthorized modification

• Noise, vibration, harshness or personal-comfort concerns

• Competition, racing or off-road use


To begin a claim, contact Elite GT-R Parts with your order number, Brembo part number, proof of purchase, a description of the issue and clear photographs of the product. Claims must be reported within 30 days after the defect is discovered. Do not modify or return the product before receiving instructions, as Brembo may require inspection in its original condition. Final warranty eligibility and resolution are determined by Brembo under its current U.S. warranty terms.
