DeatschWerks 9-811-C105-7021-PNP X3 Triple DW810 Fuel Pump Module | Nissan GT-R R35

1 4
$3,499.00
$3,499.00
Shipping calculated at checkout.
DeatschWerks
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

DWK9-811-C105-7021-PNP
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

In stock
Fuel Pump Module
Found a better price elsewhere? View full details

Description

The DeatschWerks X3 Triple DW810 Brushless Fuel Pump Module is the ultimate high-capacity in-tank fuel solution for extreme Nissan GT-R R35 builds. Designed to retain full OEM functionality while delivering massive fuel flow, the X3 module integrates three DW810 brushless fuel pumps, a 2-speed brushless controller, and a plug-and-play wiring harness for seamless installation.

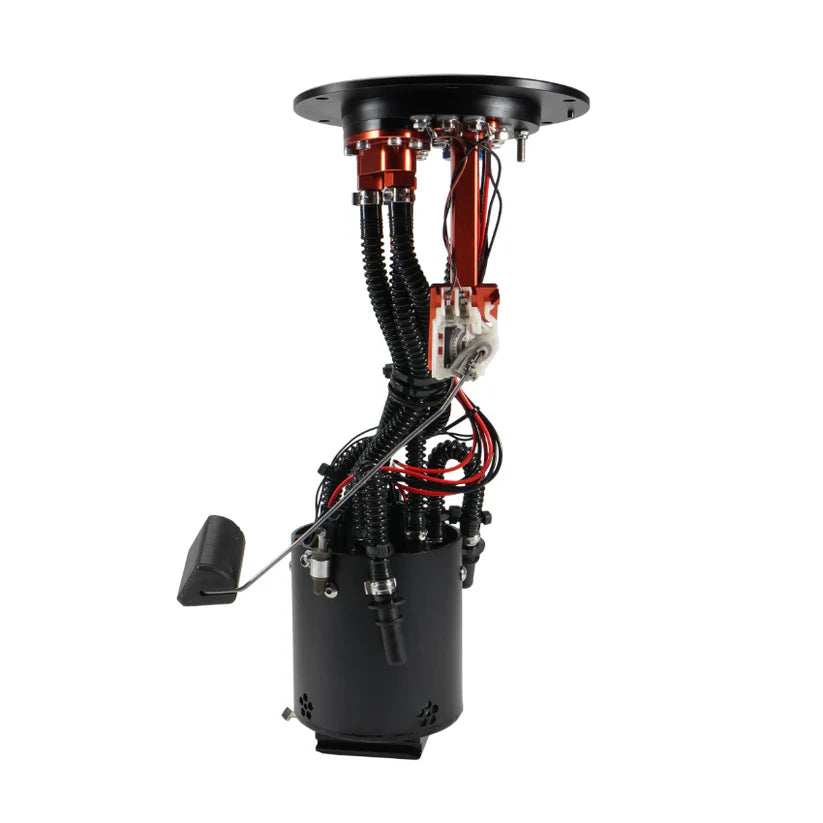

The X3 module is engineered as a complete system, consisting of a precision-machined anodized aluminum top hat, center section, bucket, and full installation hardware. It supports a return-style fuel system while retaining all OEM sensors, surge features, fuel level, and temperature functionality, ensuring factory-level drivability with race-level fuel delivery.

With a flow rate of approximately 2,450–2,500 LPH at 51 PSI and the ability to support up to 4,000 BHP on E85 (forced induction), this system represents up to a 475% increase over the OEM GT-R fuel module when equipped with DW810 pumps. All performance data is tested at 13.5V using 10-gauge wiring with the OEM venturi system connected, ensuring real-world accuracy.

This version includes triple DW810 brushless pumps, making it ideal for high-horsepower street, track, and competition GT-R builds that demand absolute fuel delivery reliability.



Key Features and Benefits:

  • DeatschWerks X3 Series fuel pump module
  • Includes three DW810 brushless fuel pumps
  • Integrated 2-speed brushless controller
  • Plug-and-play (PNP) harness for OEM wiring
  • Supports return-style fuel systems
  • Retains all OEM fuel level & temperature sensors
  • 2450–2500 LPH @ 51 PSI
  • Up to 475% flow increase over OEM module
  • Supports up to 4000 BHP on E85 (forced induction)
  • OEM tank fitment with factory surge functionality

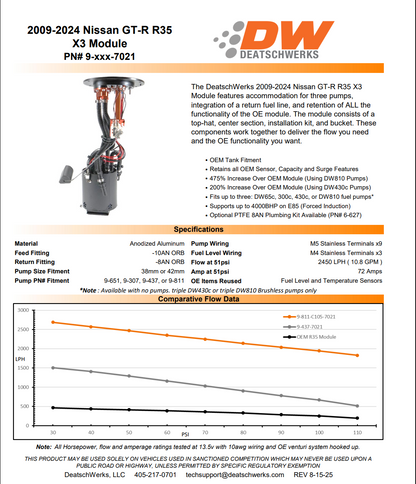

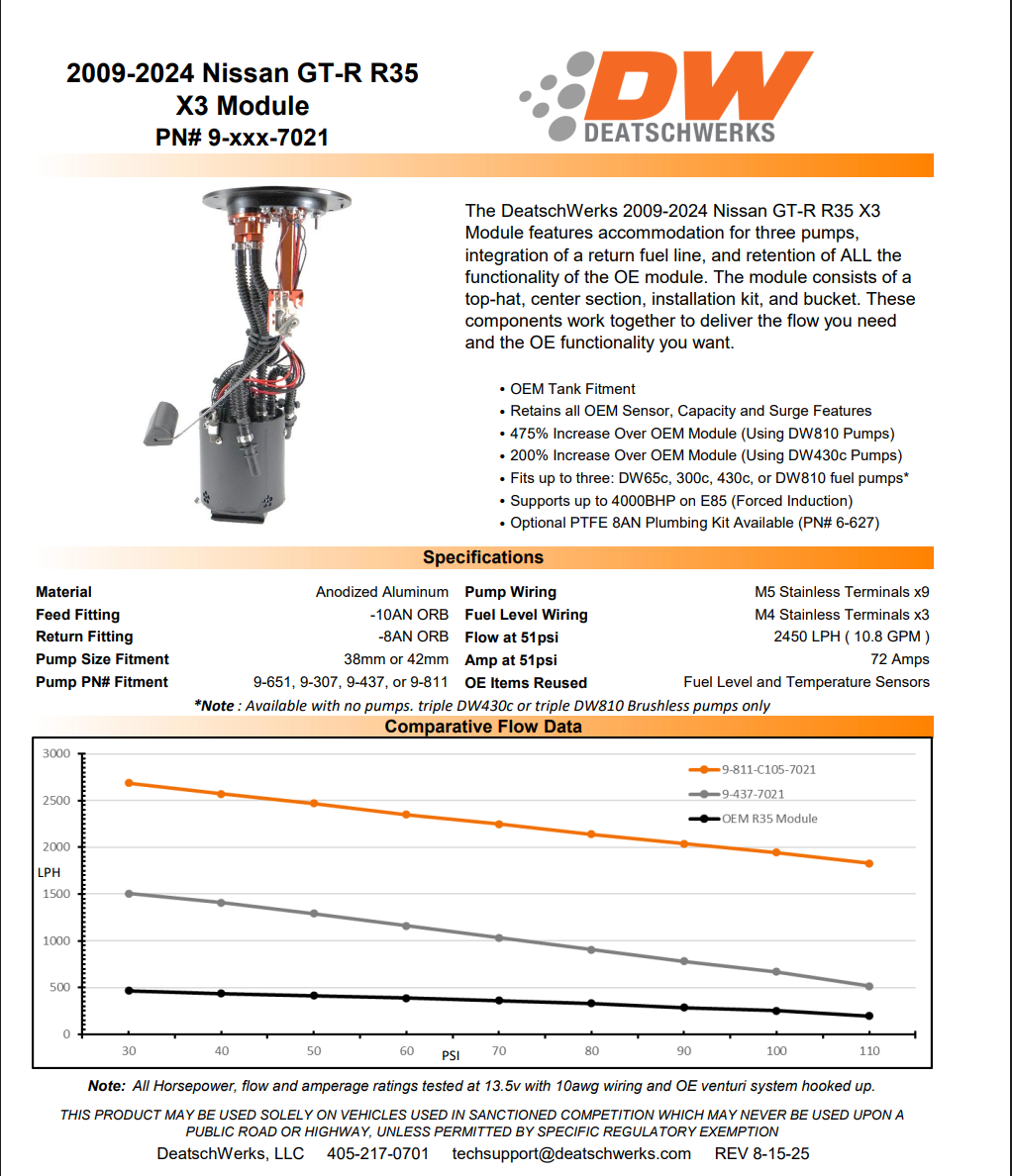

Technical Specs / Material Info:

  • Series: X3 Series Module
  • Pump Type: DW810 Brushless (Triple)
  • Flow Rate: ~2450–2500 LPH @ 51 PSI
  • Current Draw: ~72 Amps @ 51 PSI
  • Material: Anodized Aluminum
  • Feed Fitting: -10AN ORB
  • Return Fitting: -8AN ORB
  • Pump Size Fitment: 38mm or 42mm

  • Electrical:

    • Pump Wiring: M5 Stainless Terminals (x9)

    • Fuel Level Wiring: M4 Stainless Terminals (x3)

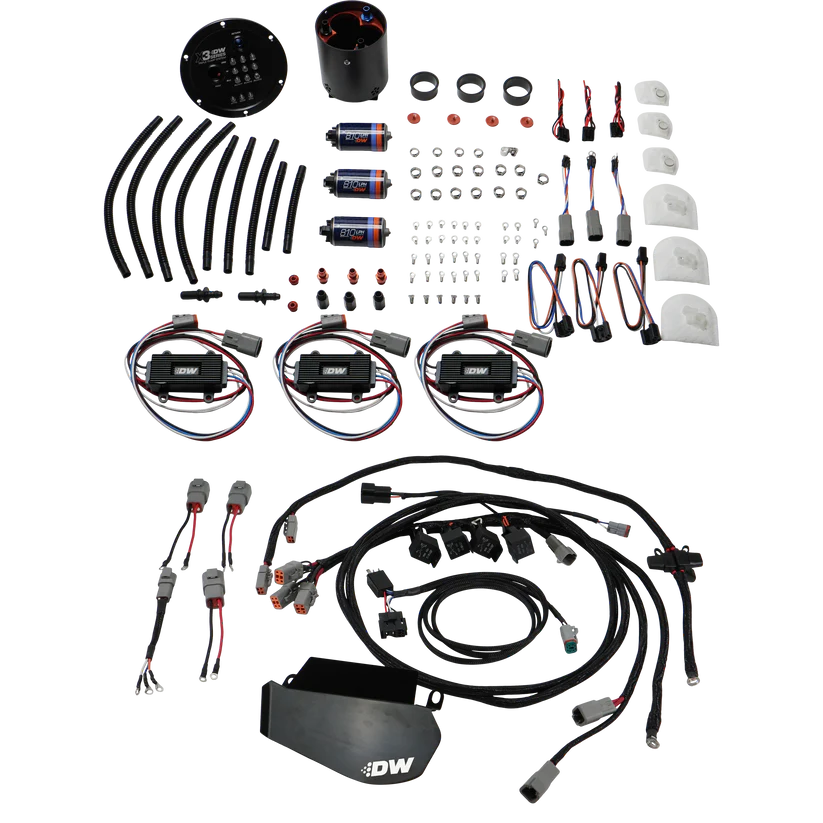

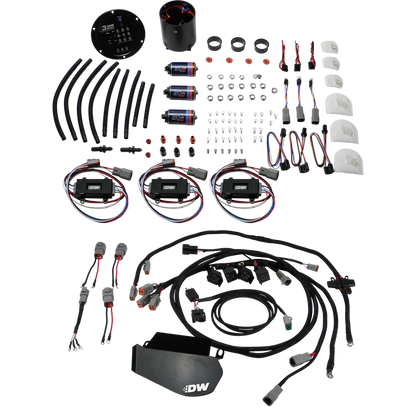

Package Contents:

  • DeatschWerks X3 fuel pump module assembly
  • (3) DW810 brushless fuel pumps
  • 2-speed brushless pump controller
  • Plug-and-play wiring harness
  • Full installation hardware
  • OEM fuel level & temperature sensor integration
  • Printed / digital installation documentation



Installation Info:

  • Direct in-tank replacement module
  • Plug-and-play electrical integration
  • Return fuel line required

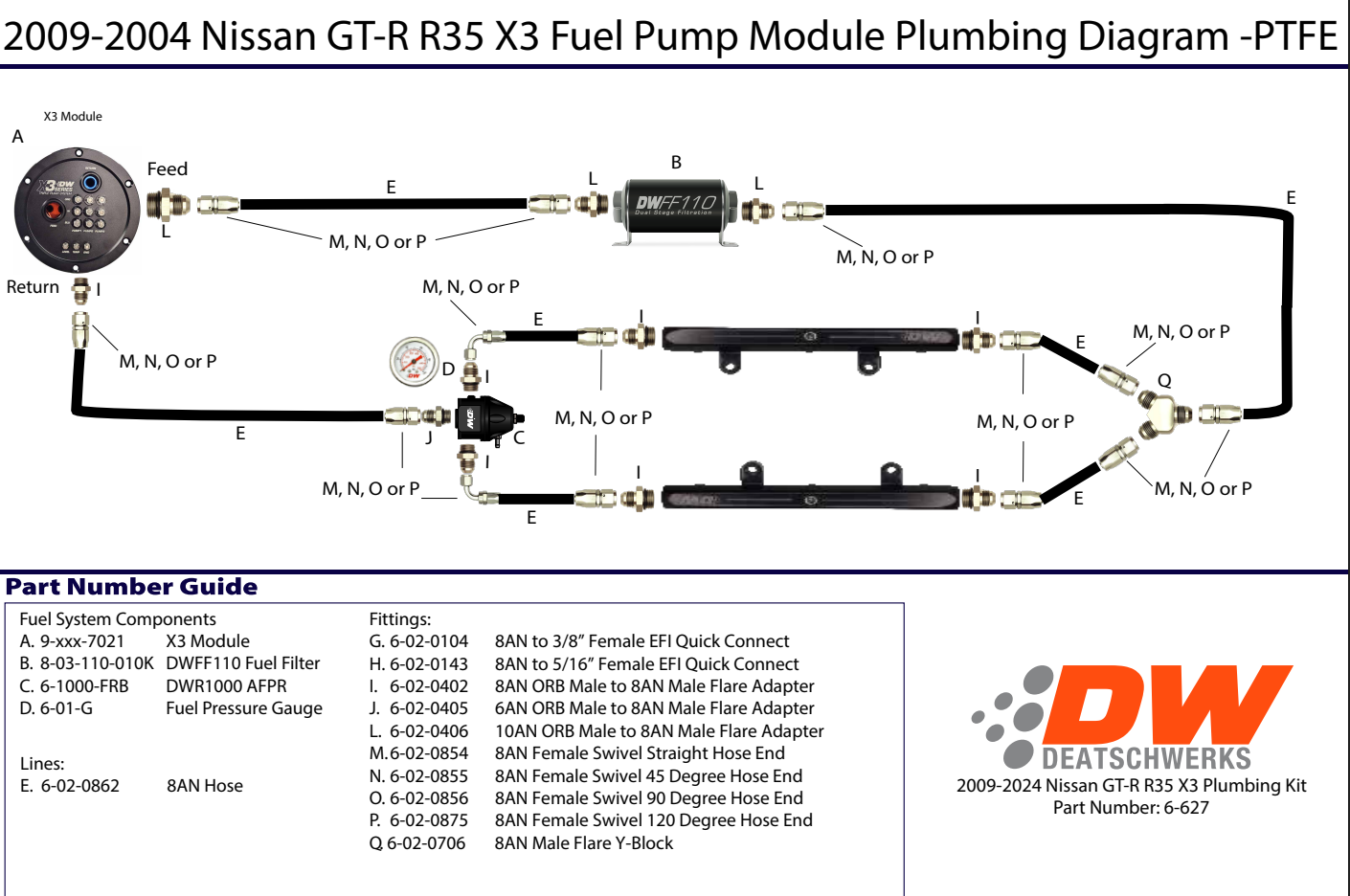

  • Optional PTFE 8AN Plumbing Kit available (DW PN: 6-627)
  • Professional installation and tuning strongly recommended



Important Notes & Disclaimer:

  • Intended for high-performance and motorsports applications
  • Fuel system upgrades, wiring, and ECU calibration required
  • Horsepower ratings based on proper voltage, wiring, and fuel type
  • Use only with qualified installation and tuning support



About DeatschWerks:

DeatschWerks is a global leader in high-performance fuel systems, known for precision-engineered pumps, injectors, and modules used in top-level motorsports and street performance builds. Every DW product is flow-tested, quality-controlled, and designed to deliver consistent fuel delivery at extreme power levels.

Key Features

Technical Specs

Vehicle Fitment

Brand Overview

DeatschWerks, commonly known as DW, is an American performance fuel-system manufacturer founded in 2004 and headquartered in Oklahoma City, Oklahoma. The company began by developing high-flow, application-specific fuel injectors and later expanded into fuel pumps, pump modules, fuel rails, pressure regulators, filters, surge tanks, fuel lines, fittings and supporting electronics. DeatschWerks performs product design, final manufacturing, quality assurance and technical support from its Oklahoma City facility. Its products are developed for sport-compact, modern-muscle and European performance platforms, with injector calibration data and fuel-pump flow information available to help tuners build properly matched fuel systems.

For Nissan Skyline GT-R and Nissan GT-R builds, DeatschWerks offers fueling components for both RB-series and VR38DETT applications. Available products include matched injector sets for the RB26DETT used in the R32, R33 and R34 Skyline GT-R, along with injectors, compact in-tank pumps and complete multi-pump modules for the R35 GT-R. DeatschWerks also offers universal regulators, filters, lines, fittings and surge tanks that can support custom high-horsepower fuel systems. Product selection should be based on the engine’s horsepower target, fuel type, required flow rate and tuning strategy, particularly when using ethanol-based fuels or significantly increasing boost.

Warranty Information

DeatschWerks products are covered by a Limited Lifetime Warranty beginning on the original purchase date. Coverage applies only to the original purchaser and is not transferable. If a DeatschWerks product fails to operate within the manufacturer’s specifications, DW may repair or replace it at no charge after inspection. Product-specific exceptions may be listed separately.

The warranty does not cover:

  • Improper installation or incorrect application
  • Modification, misuse, neglect or inadequate repair
  • Fuel contamination, corrosion or external damage
  • Products used outside DeatschWerks’ recommended applications
  • Labor, diagnosis, removal or reinstallation expenses
  • Shipping costs to DeatschWerks
  • Incidental or consequential damage

O-rings, gaskets, regulator diaphragms, fuel lines, fittings and other components that seal or contain fuel are considered normal wear items and are not covered.

To begin a claim, contact Elite GT-R Parts with your order number, DeatschWerks part number, a description of the problem and clear photographs or video. Proof of purchase is required. DeatschWerks also requires a completed support ticket, an RMA number and any requested supporting documentation before a product is returned. The customer is responsible for shipping the product to DeatschWerks; DW pays return shipping when the claim is approved. Final warranty eligibility is determined by DeatschWerks.
