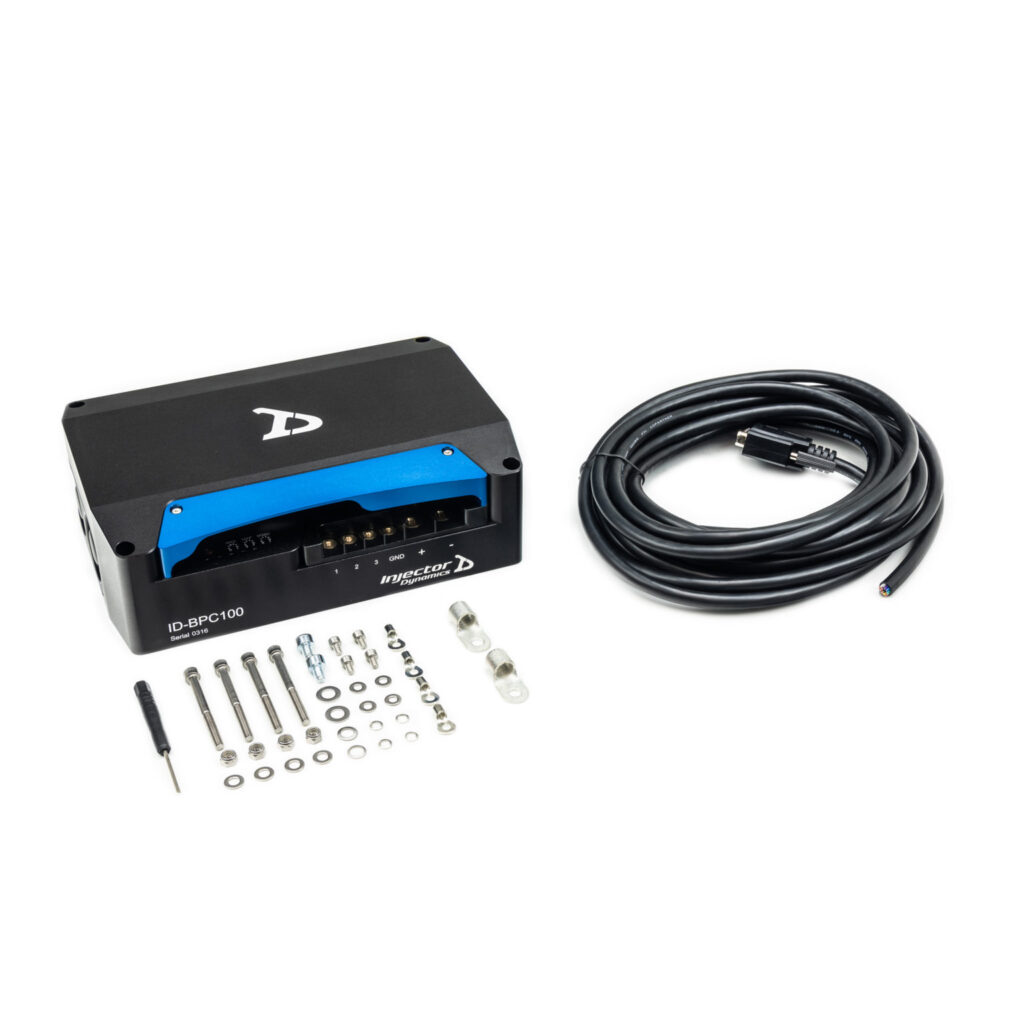

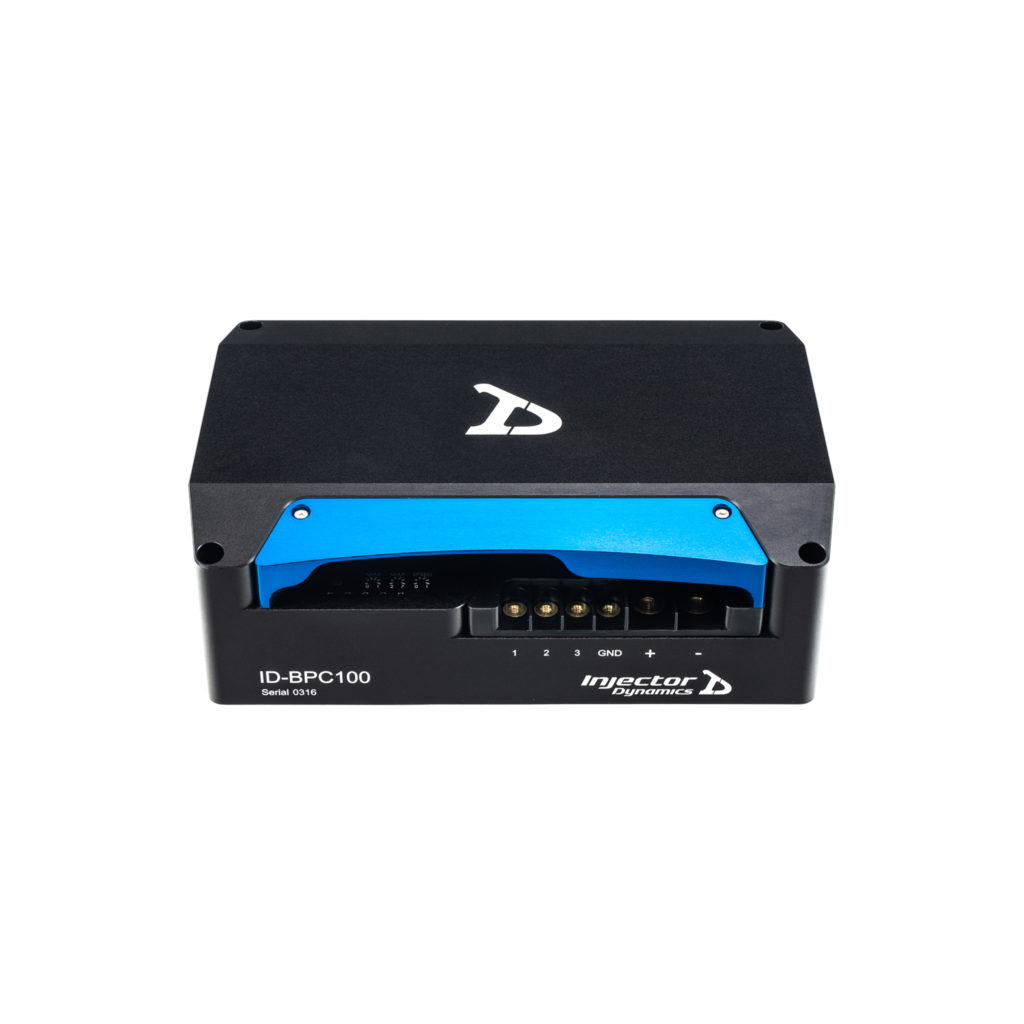

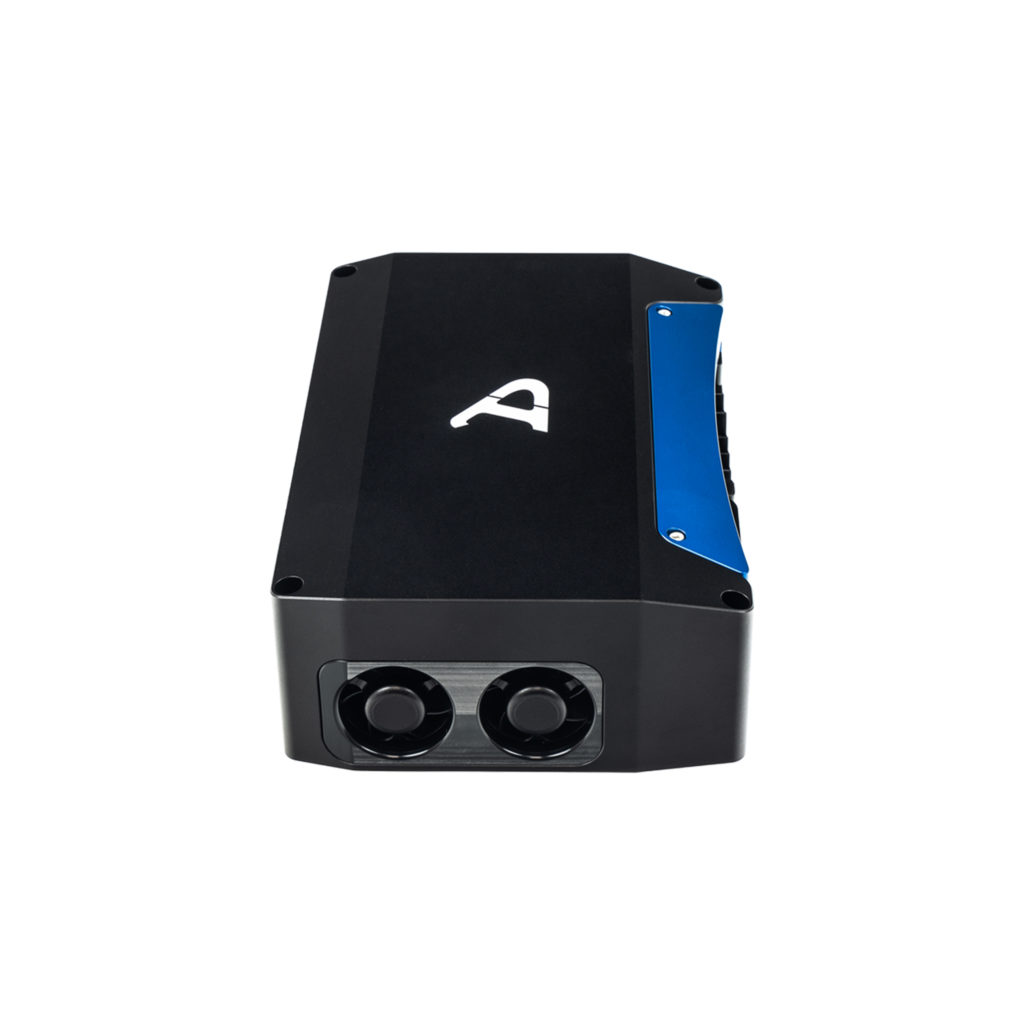

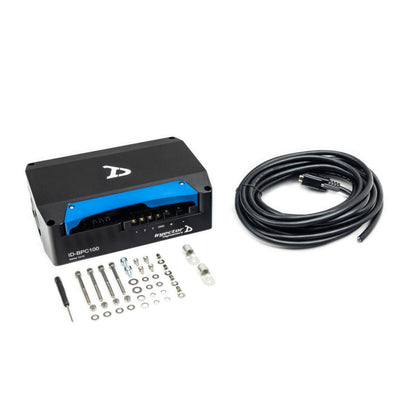

Injector Dynamics BPC100 Brushless Fuel Pump Controller for Nissan GT-R R32 R33 R34 R35 - ID BPC100

Microprocessor Controlled: Intelligent brushless fuel pump controller for precise fuel delivery

Maintains Constant Flow: Delivers consistent fuel flow regardless of battery voltage or fuel pressure changes

Supports Extreme Horsepower: Designed to support 2,000+ horsepower applications when paired with a TI Automotive E5LM brushless fuel pump

Internal Power Supply: Pump operation remains independent of vehicle charging system fluctuations

Multiple Flow Control Modes: Supports fixed flow, MAP sensor-based flow control, and PWM-controlled variable flow

CAN Bus Communication: Outputs real-time operating data to compatible ECUs and data logging systems

Advanced Diagnostics: Integrated LED fault reporting and CAN bus error transmission

Wide Operating Range: Supports fuel pressures up to 150 PSI and flow rates from 300 to 1,100 LPH

Built for Motorsports: Ideal for drag racing, roll racing, road racing, and high-horsepower street applications

Reverse Polarity Protection: Protects the controller against accidental wiring errors

Brand: Injector Dynamics

Part Number: ID BPC100

Product: BPC100 Brushless Pump Controller

Part Type: Brushless fuel pump controller

Compatible Pump: TI Automotive E5LM Brushless Fuel Pump

Operating Voltage: 7.0–17.5 VDC

Reverse Polarity Protection: Yes

Maximum Fuel Pressure: 150 PSI

Flow Rate Range: 300–1,100 LPH

Supported Horsepower: 2,000+ HP on ethanol (with compatible pump and fuel system)

Minimum Current Draw: 5 Amps

Maximum Current Draw: 100 Amps

Operating Temperature: -18°C to 70°C (0°F to 158°F)

Flow Control Modes:

• Fixed flow via onboard potentiometer

• Variable flow via MAP sensor

• PWM-controlled real-time flow adjustment

CAN Bus Outputs:

• System voltage

• Current draw

• Fuel flow rate

• Operating temperature

• MAP sensor voltage

• PWM duty cycle

Diagnostics: LED error reporting and CAN bus fault reporting

Quantity: 1 controller
