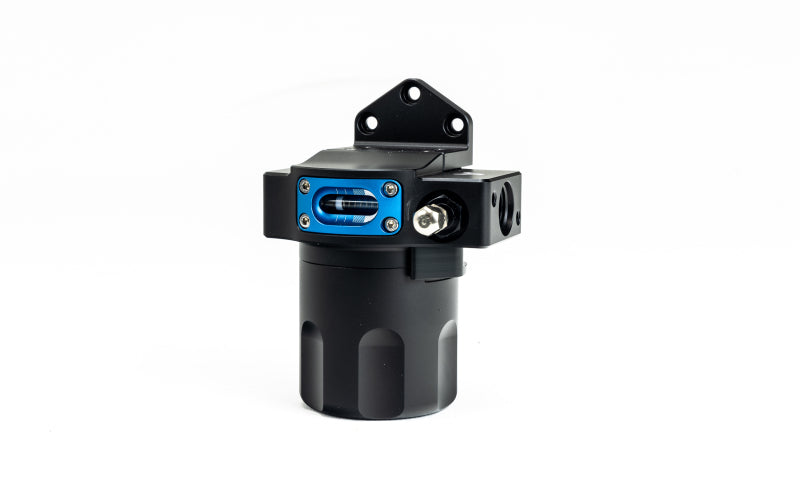

Injector Dynamics F750 Fuel Filter with Pressure & Temperature Sensor Kit - F750PTS

Complete Fuel System Solution: Includes the ID F750 fuel filter and PTS pressure/temperature sensor module

High Flow Capacity: Supports up to 750 LPH with minimal pressure drop and up to 1000 LPH at higher differential pressure

Integrated Fuel Monitoring: Bosch Motorsport pressure and temperature sensor provides real-time fuel system data

OE-Level Filtration: Meets Bosch electronic fuel injector filtration requirements for superior injector protection

Universal Fuel Compatibility: Safe for gasoline, E85, methanol, race fuels, and all known automotive fuels

Serviceable Filter: Replaceable microglass filter element extends service life

Delta P Service Indicator: Built-in visual indicator shows when filter replacement is recommended

Integrated Schrader Valve: Simplifies fuel pressure testing, pressure relief, and system draining

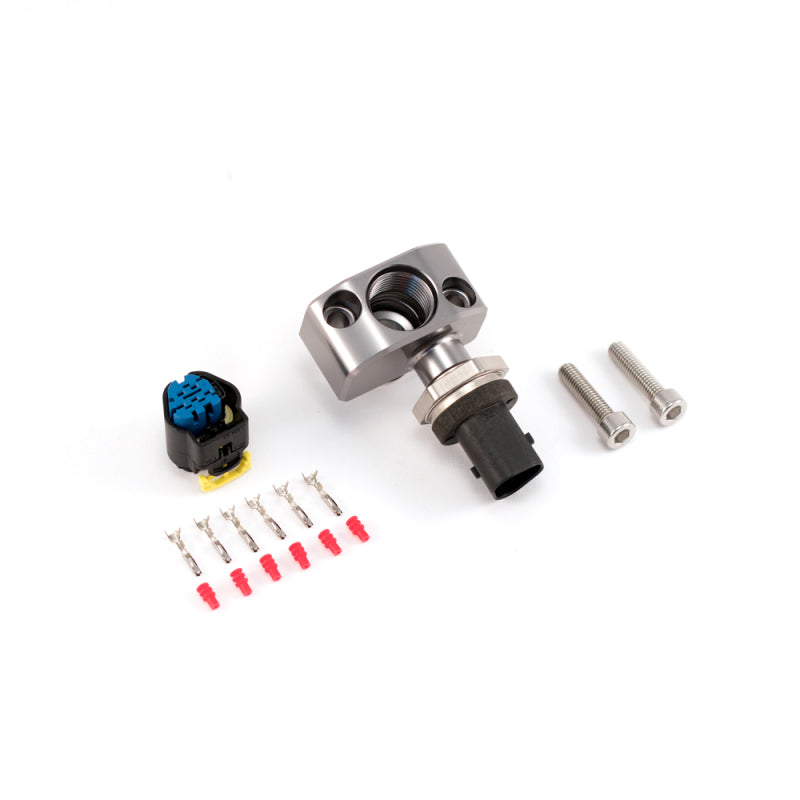

Compact PTS Module: Adds minimal overall length while eliminating the need for additional sensor plumbing

Modular Design: Flexible mounting system supports multiple installation orientations

Brand: Injector Dynamics

Part Number: F750PTS

Product: F750 Fuel Filter with Pressure & Temperature Sensor Kit

Part Type: High-flow inline fuel filter with integrated pressure and temperature sensor

Included Components: 1 x F750 Fuel Filter, 1 x PTS Pressure & Temperature Sensor Module

Nominal Flow Rate: 750 LPH @ 7.5 kPa (1.1 psi) pressure drop

Maximum Flow Rate: 1000 LPH @ 13 kPa (1.9 psi) pressure drop

Maximum Fuel Pressure: 10.0 Bar (145 psi)

Fuel Compatibility: Compatible with all known automotive fuels

Fluid Connections: SAE -8 O-Ring Barb (-8 ORB)

Filter Media: High-efficiency microglass

Housing Material: Type II anodized 6061-T651 aluminum

Pressure Sensor Range: 0-10 Bar (145 psi)

Fuel Temperature Sensor: Integrated Bosch Motorsport sensor

Integrated Schrader Valve: Yes

Delta P Service Indicator: Yes

Serviceable Filter Element: Yes

Weight: 700 g
