Injector Dynamics Brushless Fuel Pump System for Nissan Skyline GT-R & GT-R R35 - ID FPS1100

Complete Fuel System Package: Includes Injector Dynamics BPC100 Pump Controller and TI Automotive E5LM Brushless Fuel Pump

Supports 2,000+ Horsepower: Designed to fuel extreme ethanol-powered engines with a single brushless pump

Constant Fuel Flow: Maintains target flow regardless of battery voltage or fuel pressure fluctuations

Microprocessor Controlled: Intelligent controller continuously monitors and regulates pump performance

Internal Power Supply: Pump output remains consistent even during voltage drops and high boost conditions

Variable Flow Control: Supports fixed flow, MAP sensor-controlled flow, and real-time PWM control

High Flow Capability: Delivers from 300 LPH up to 1,100 LPH depending on operating conditions

CAN Bus Communication: Outputs real-time operating data directly to compatible ECUs and data logging systems

Advanced Diagnostics: Onboard LED fault indicators and CAN-based error reporting simplify troubleshooting

Motorsport Ready: Ideal for drag racing, roll racing, road racing, and high-performance street applications

Brand: Injector Dynamics

Part Number: ID FPS1100

Product: FPS1100 Brushless Fuel Pump System

Part Type: Brushless fuel pump and controller kit

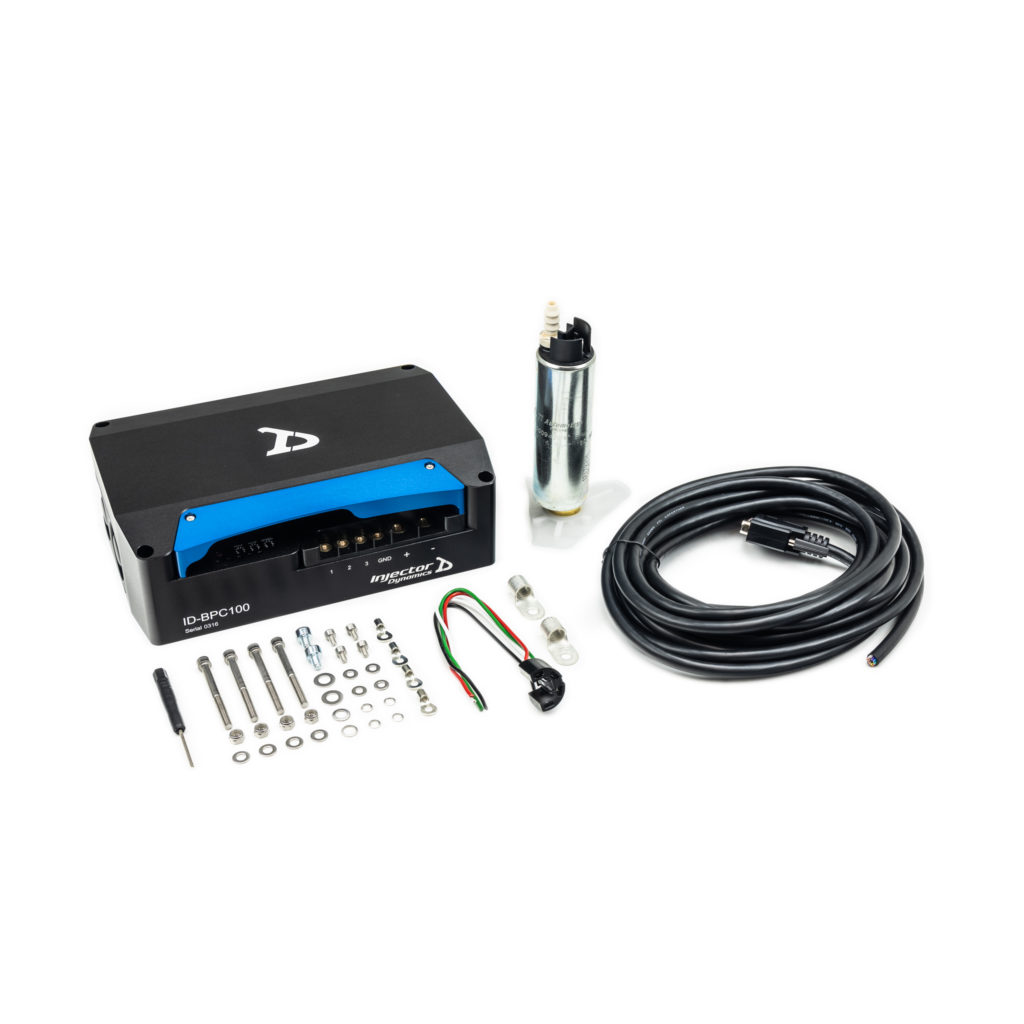

Included Components:

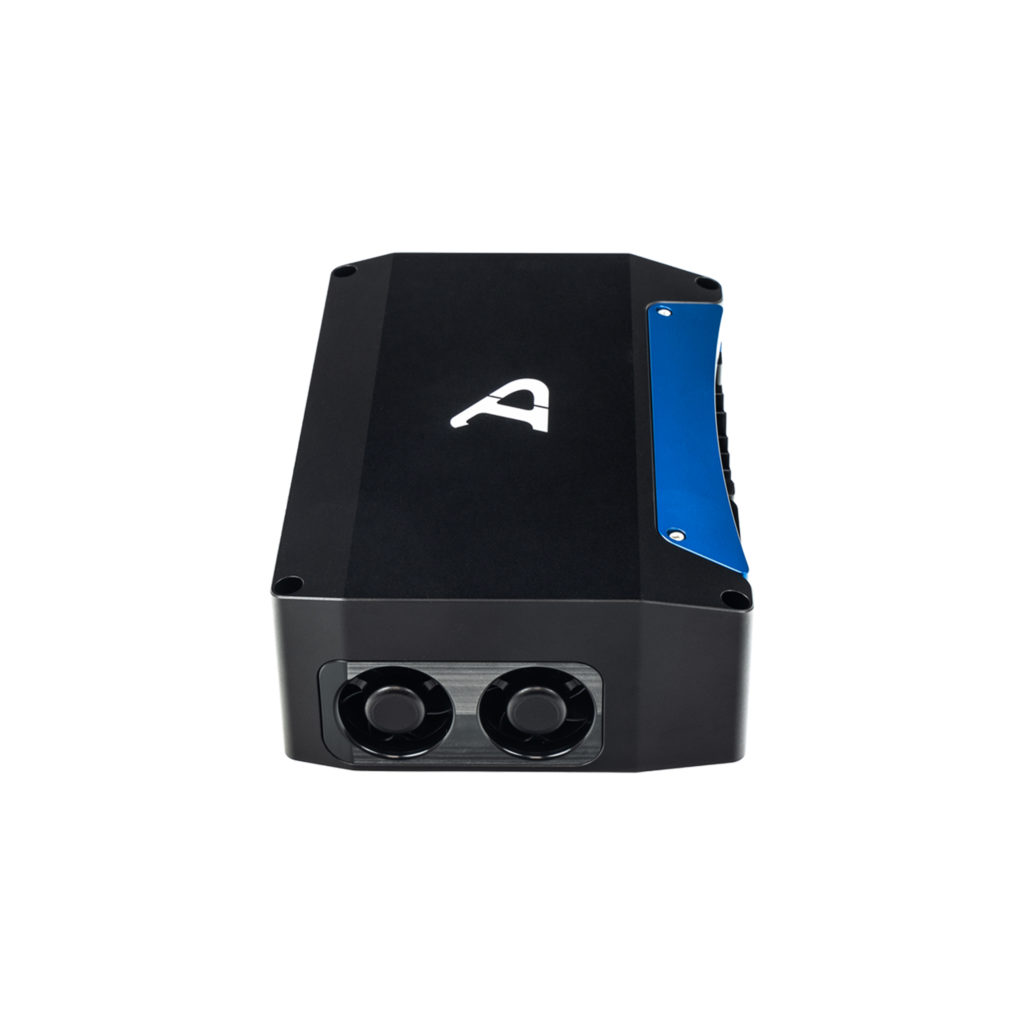

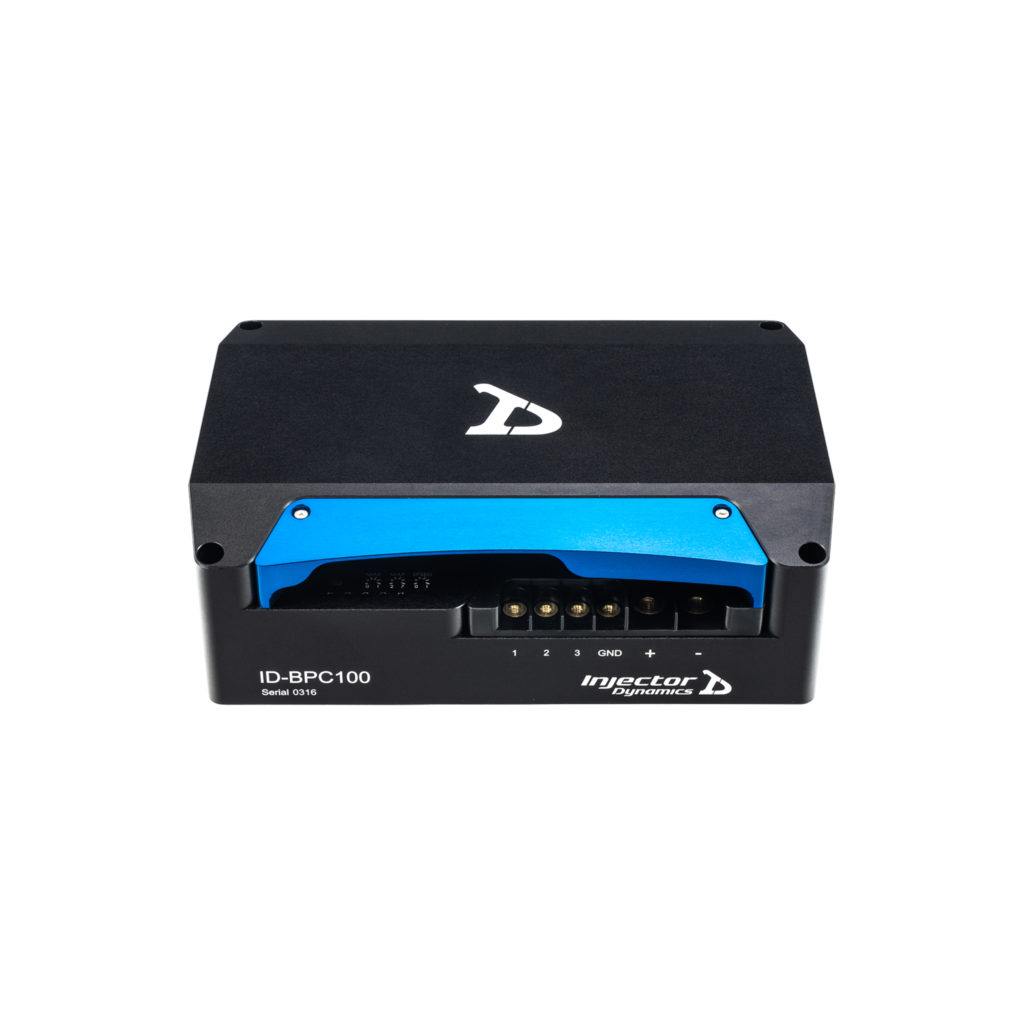

• Injector Dynamics BPC100 Brushless Pump Controller

• TI Automotive E5LM Brushless Fuel Pump

Operating Voltage: 7.0–17.5 VDC

Reverse Polarity Protection: Yes

Maximum Fuel Pressure: 150 PSI

Flow Rate Range: 300–1,100 LPH

Horsepower Capability: Supports 2,000+ HP on ethanol (application dependent)

Minimum Current Draw: 5 Amps

Maximum Current Draw: 100 Amps

Operating Temperature: -18°C to 70°C (0°F to 158°F)

Flow Control Modes:

• Fixed flow via onboard potentiometer

• Variable flow via MAP sensor

• Real-time PWM flow control

CAN Bus Outputs:

• System voltage

• Current draw

• Fuel flow rate

• Operating temperature

• MAP sensor voltage

• PWM duty cycle

Diagnostics: LED fault reporting and CAN bus diagnostics

Quantity: Complete fuel pump system
