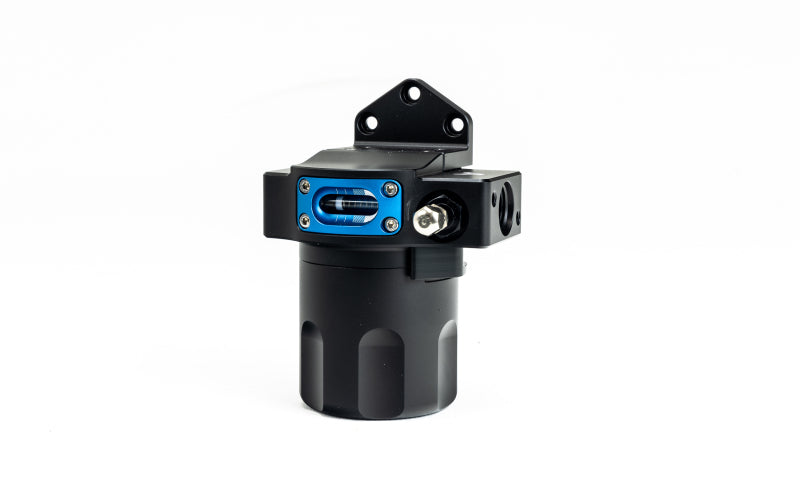

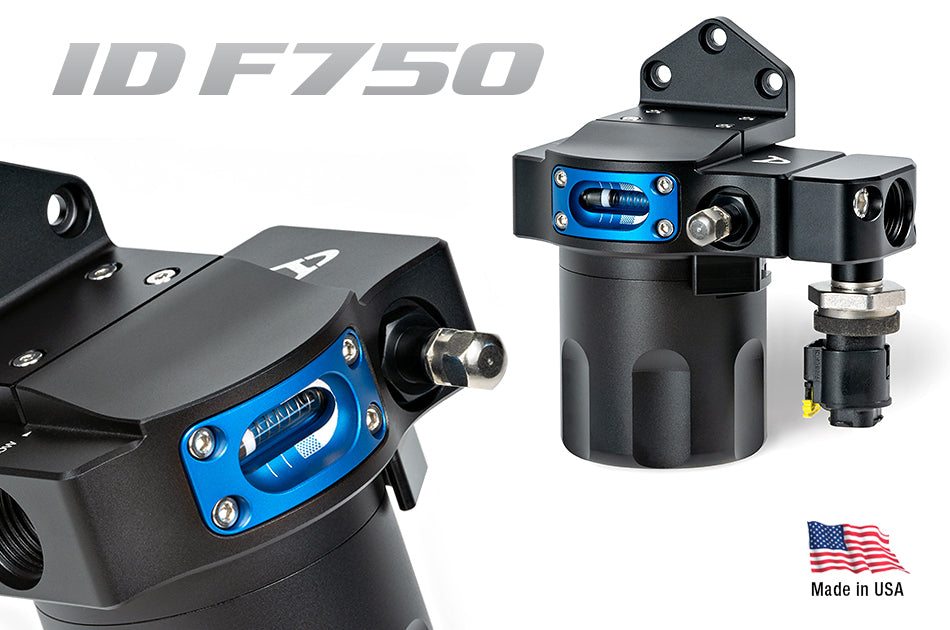

Injector Dynamics ID F750 High-Flow Fuel Filter - F750

OE-Level Filtration: Meets Bosch electronic fuel injector filtration specifications for superior injector protection

High Flow Capacity: Supports up to 750 LPH with minimal pressure drop and up to 1000 LPH at higher differential pressure

Universal Fuel Compatibility: Safe for gasoline, E85, methanol, race fuels, and all known automotive fuels

Serviceable Filter Element: Replaceable filter element simplifies maintenance and extends service life

Delta P Indicator: Visual differential pressure indicator shows when the filter element requires replacement

Spin-On Housing: Secure spin-on filter housing with integrated safety latch prevents accidental loosening

Integrated Schrader Valve: Allows fuel pressure monitoring, pressure relief, and fuel system draining

Modular Mounting System: Flexible mounting bracket supports multiple installation orientations

Low Flow Restriction: Engineered to maintain excellent flow while capturing extremely fine contaminants

Optional Sensor Compatibility: Accepts optional pressure and temperature sensor block for advanced fuel system monitoring

Brand: Injector Dynamics

Part Number: F750

Product: ID F750 Fuel Filter

Part Type: High-flow inline fuel filter

Nominal Flow Rate: 750 LPH @ 7.5 kPa (1.1 psi) pressure drop

Maximum Flow Rate: 1000 LPH @ 13 kPa (1.9 psi) pressure drop

Maximum Fuel Pressure: 10.0 Bar (145 psi)

Fuel Compatibility: Compatible with all known automotive fuels

Fluid Connections: SAE -8 O-Ring Barb (-8 ORB)

Filter Media: High-efficiency microglass

Filter Efficiency: Meets Bosch injector filtration specification (minimum 87% capture at 5 microns and 100% capture at 35 microns)

Housing Material: 6061-T651 aluminum, Type II anodized

O-Ring Material: Fluorosilicone

Weight: 700 g

Integrated Schrader Valve: Yes

Delta P Indicator: Yes

Serviceable Element: Yes

Optional Pressure & Temperature Sensor Block: Compatible (sold separately)
