GT1R F750 Fuel Filter Kit Injector Dynamics T1 For R35 GT-R
GT1R F750 Fuel Filter Kit Injector Dynamics T1 For R35 GT-R
Couldn't load pickup availability
Description

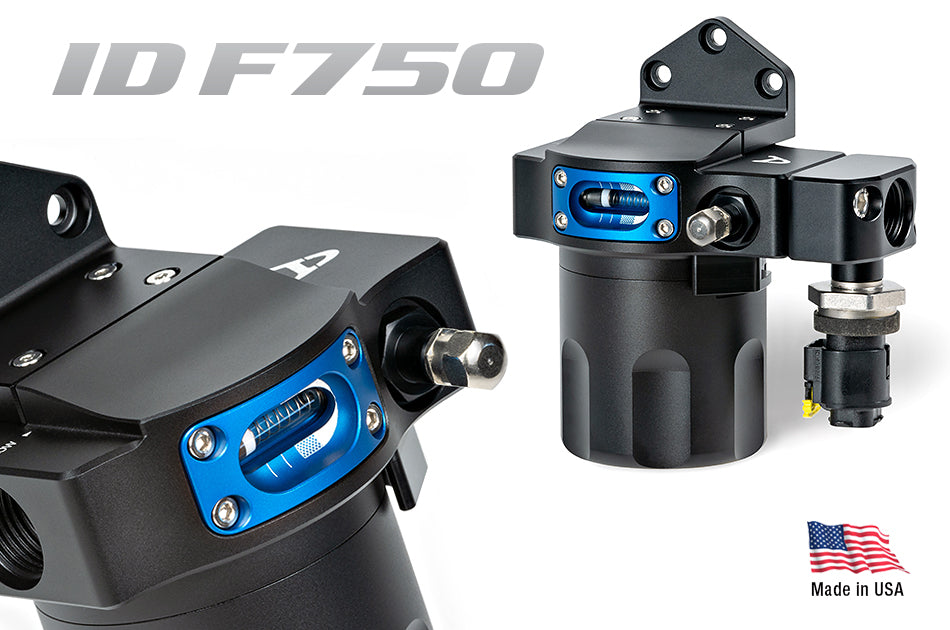

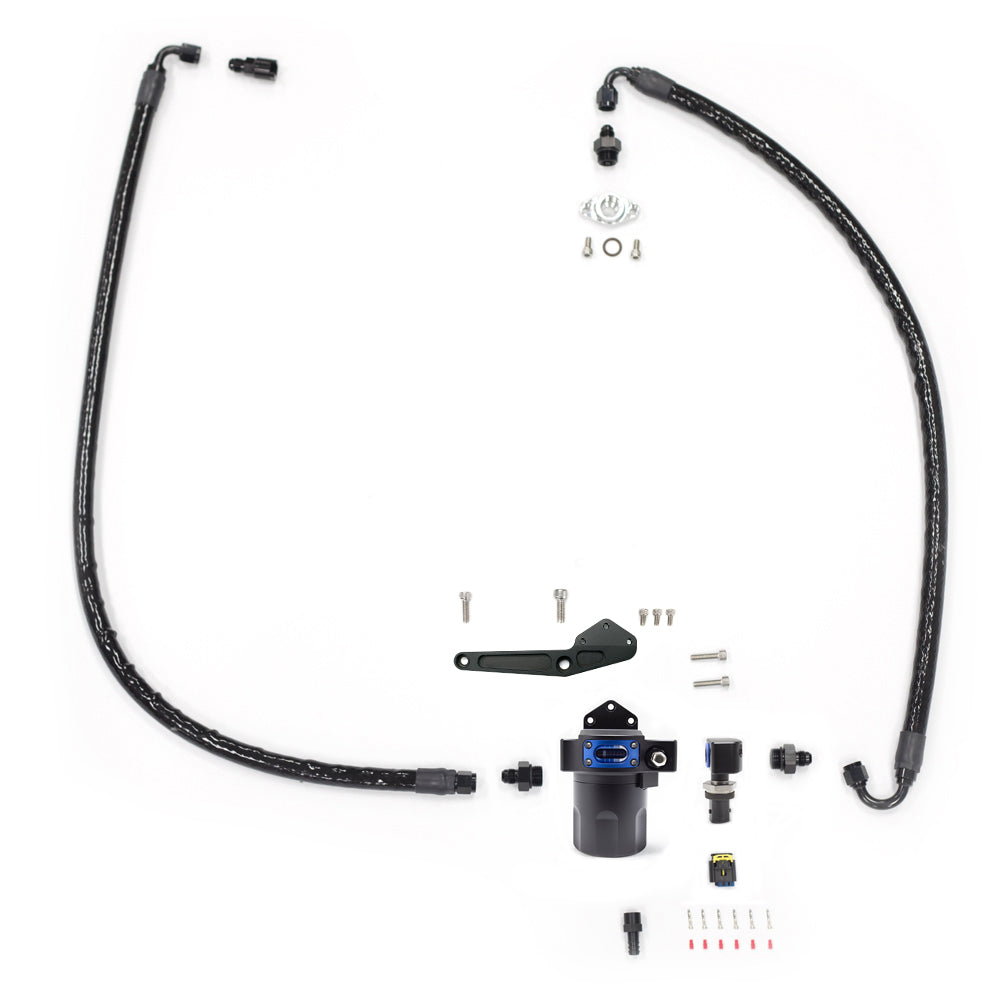

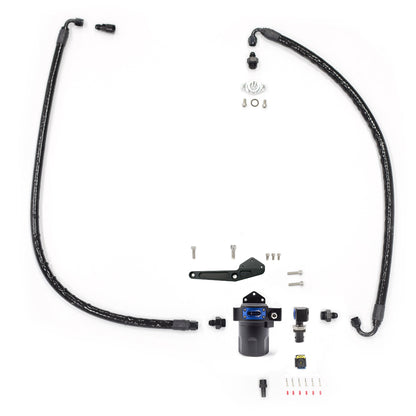

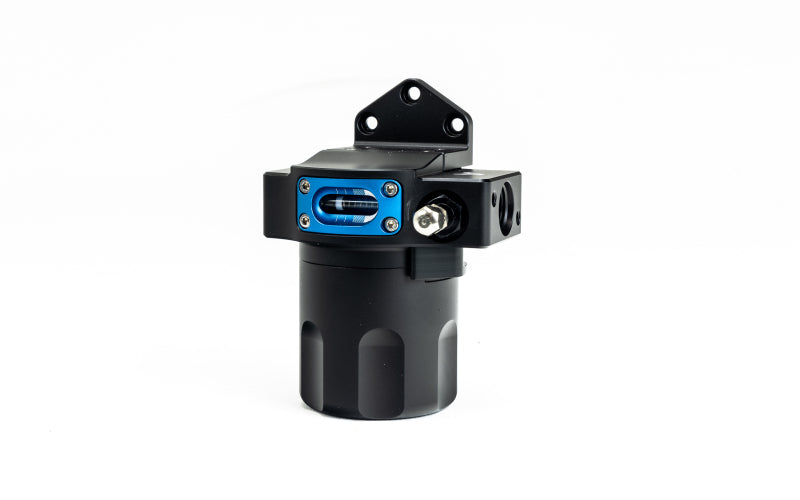

Injector Dynamics F750 Fuel Filter Kit for Nissan GT-R R35. Kit is offered with ID F750 fuel filter, mounting plate and hardware, factory feed line adapter and line, and line to feed passenger side fuel rail.
Basic Specifications
Filter Efficiency
Electronic fuel injectors are built to precise dimensions, measured in microns. The smallest of particles can increase wear, or even destroy a fuel injector.
Bosch provides a specification for protection of electronic fuel injectors, which is a minimum capture efficiency of 87% at 5 microns, and 100% capture efficiency at 35 microns. This means that the filter will capture at least 87% of all particles 5 microns and larger, and 100% of all particles 35 micron and larger.
The filter element in the ID F750 meets that specification, and does so without undue flow restriction.
Flow Restriction vs Contaminant Load
The ID F750 is designed to hold a high level of contaminant while maintaining low restriction to flow. This is accomplished with a highly efficient filter element, designed with low pressure drop in mind. At a flow rate of 750 liters per hour, the ID F750 will hold five grams of contaminant, the equivalent of approximately one teaspoon before requiring replacement. Higher flow rates are possible, but will require more frequent filter changes, depending on the cleanliness of your fuel system.
Spin On Housing With Safety Latch
The spin on filter housing features a safety latch to ensure that the housing can not spin off, should it loosen. It is easily released with one finger, and emits an audible click during assembly.
Modular Mounting Bracket

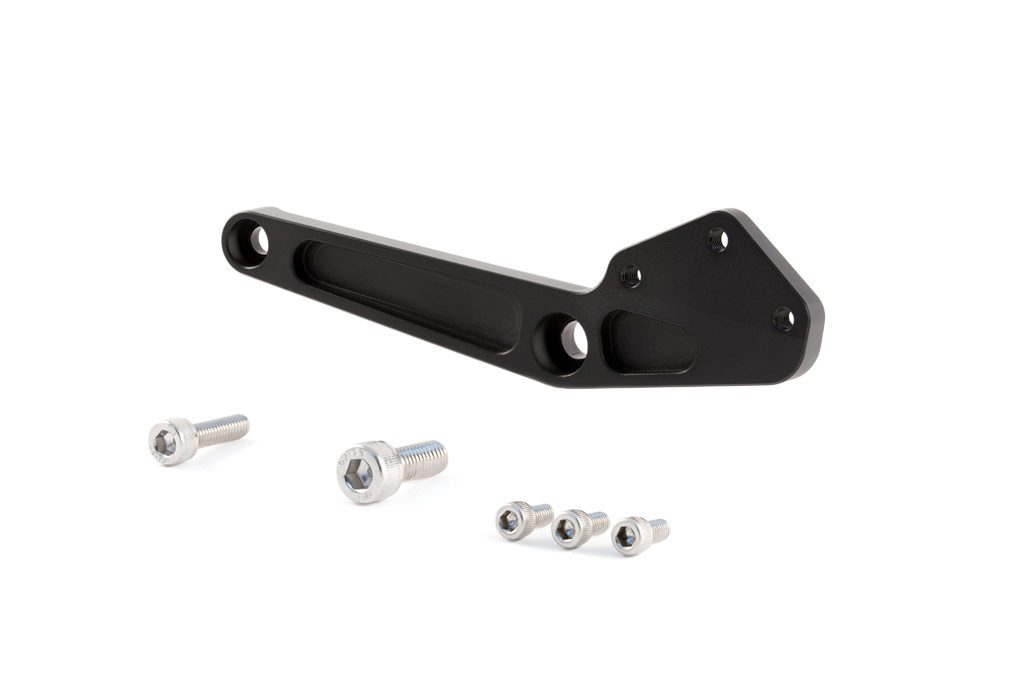

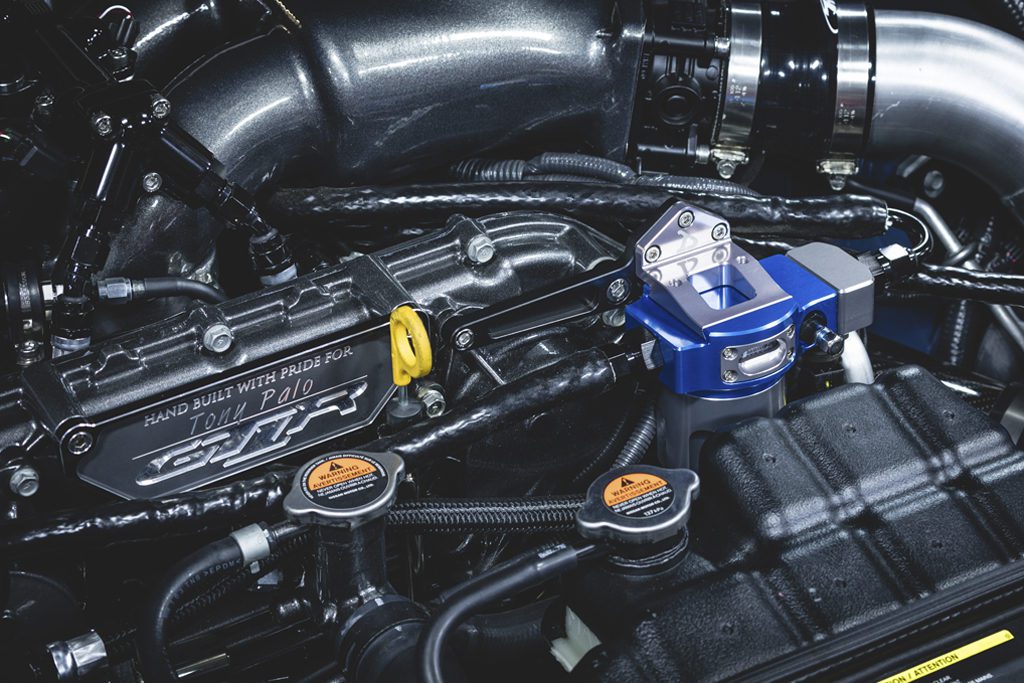

The modular design allows for numerous mounting options, from the standard 90°, straight, and reverse 90°, to roll bar tube mount brackets, and everything in-between. Custom brackets can also be provided for application specific fitment. We currently offer an R35 GT-R specific mounting bracket and hardware kit. This will locate the F750 filter in front of the driver side cam cover. Please select this option below if you would like it included.
Optional Pressure and Temperature Sensor Block
The plug and play pressure and temperature sensor features a Bosch Motorsport 10 bar (145 psi) pressure sensor, with integral -40 to 140°C (-40 to 284°F) temperature sensor.
Technical Manual
Design intent, detailed specifications, filter theory, installation instructions, servicing, etc. are all covered in detail in the comprehensive Technical Manual.
