Description

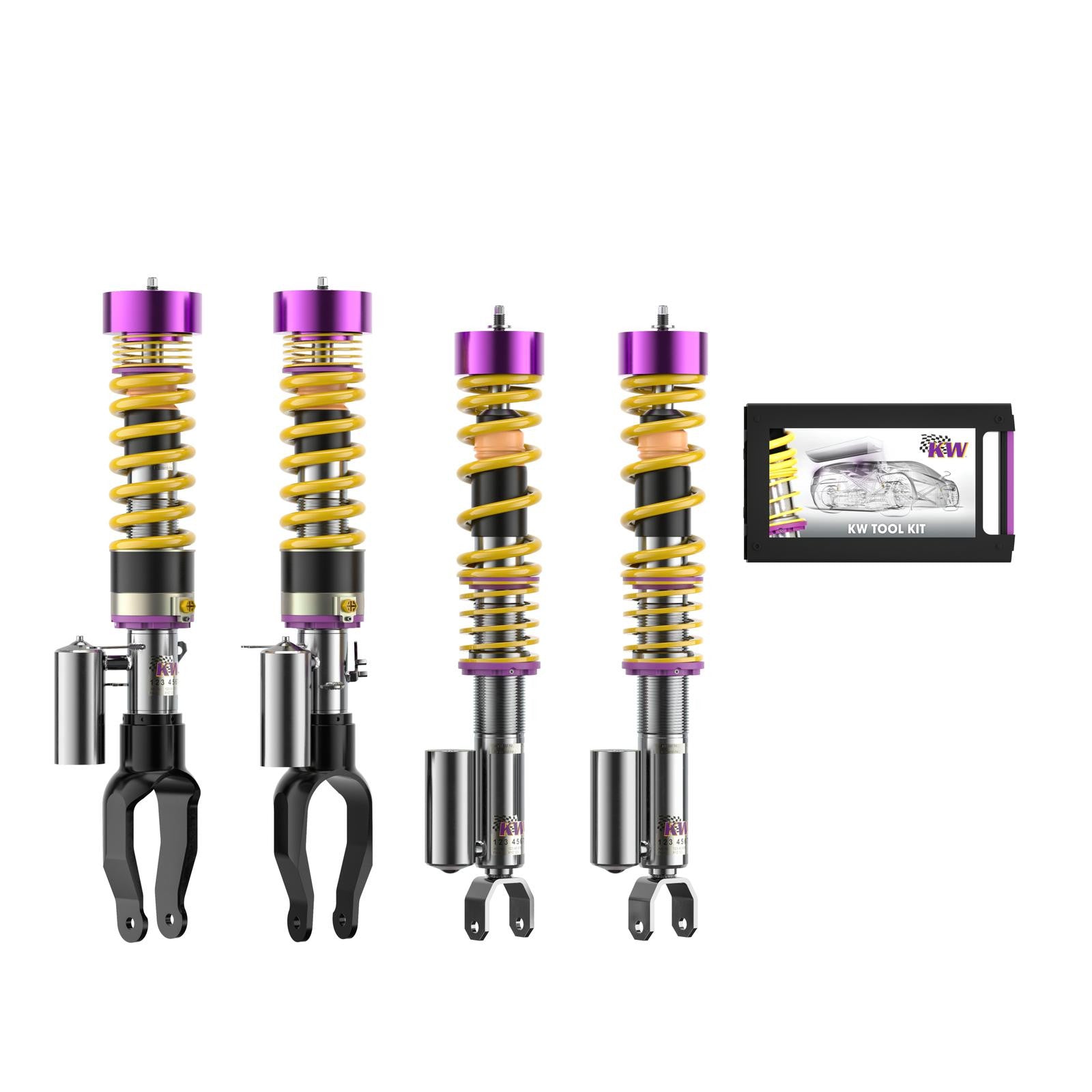

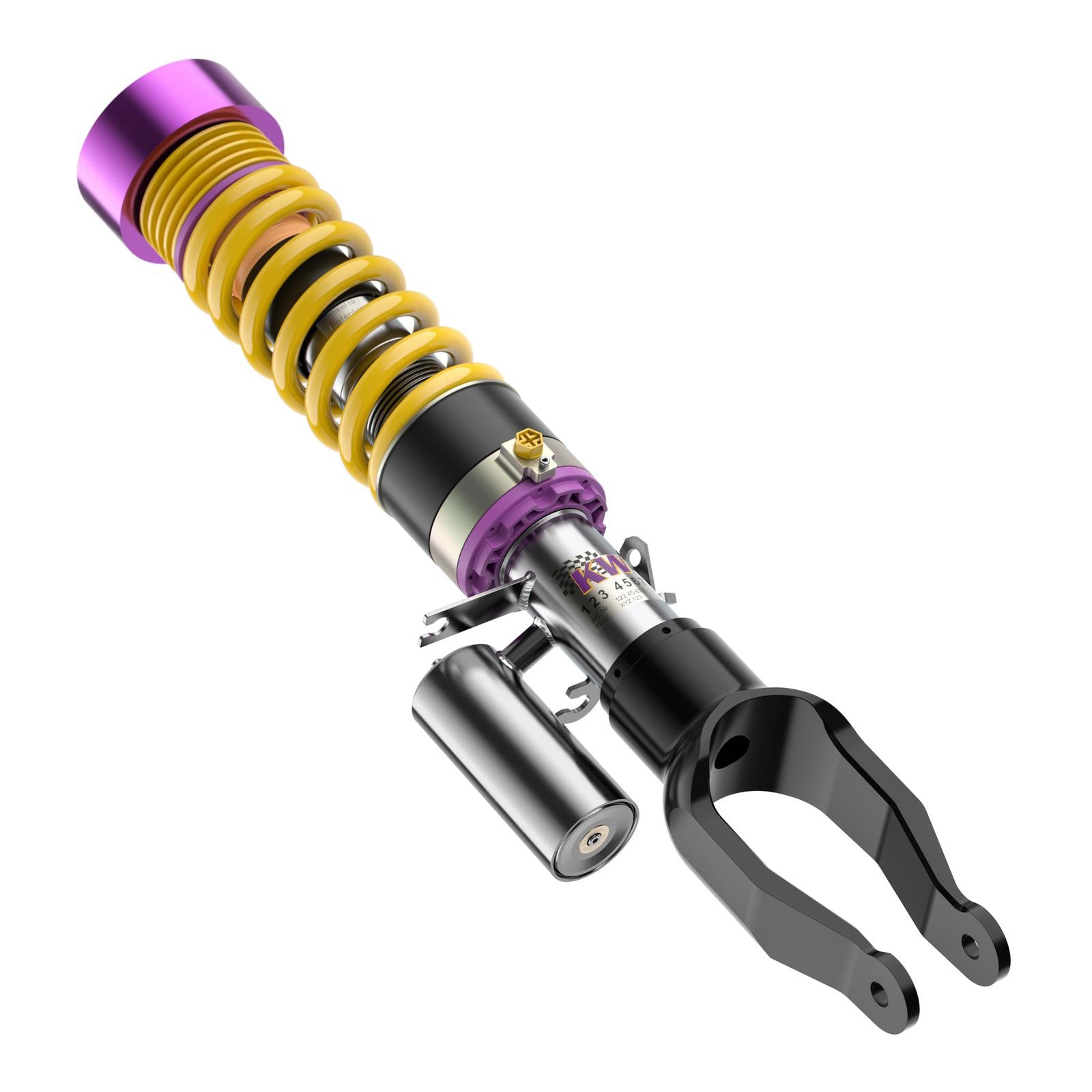

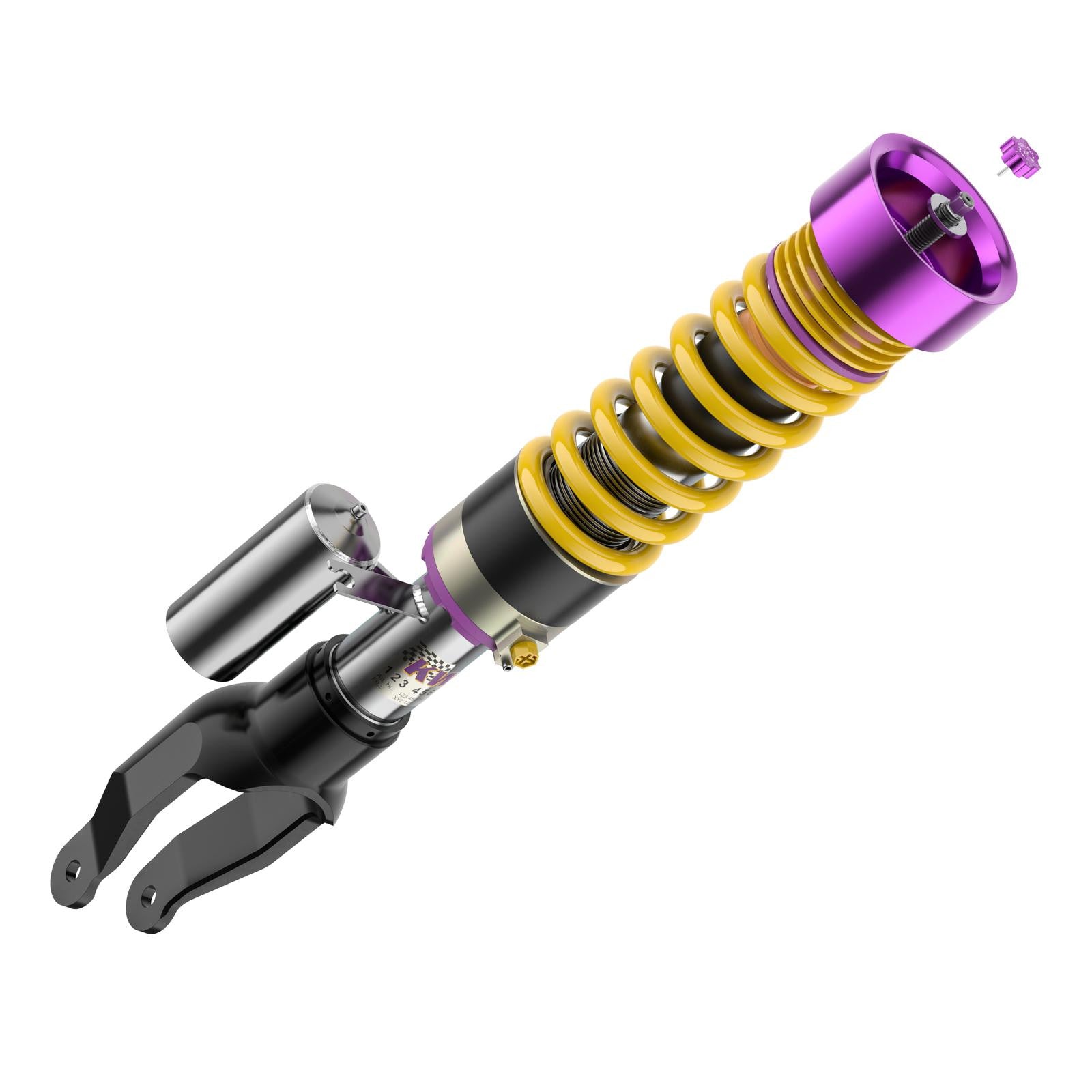

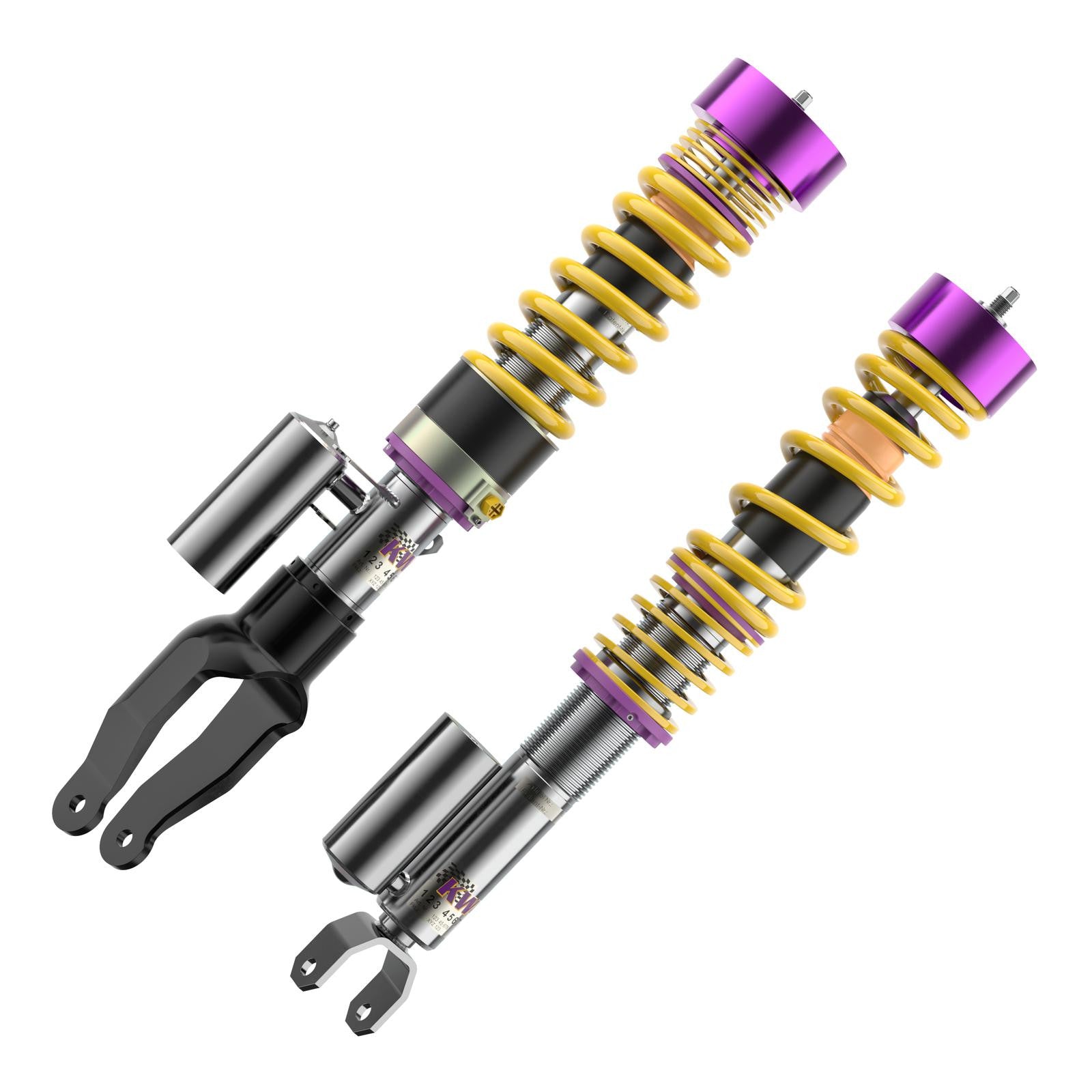

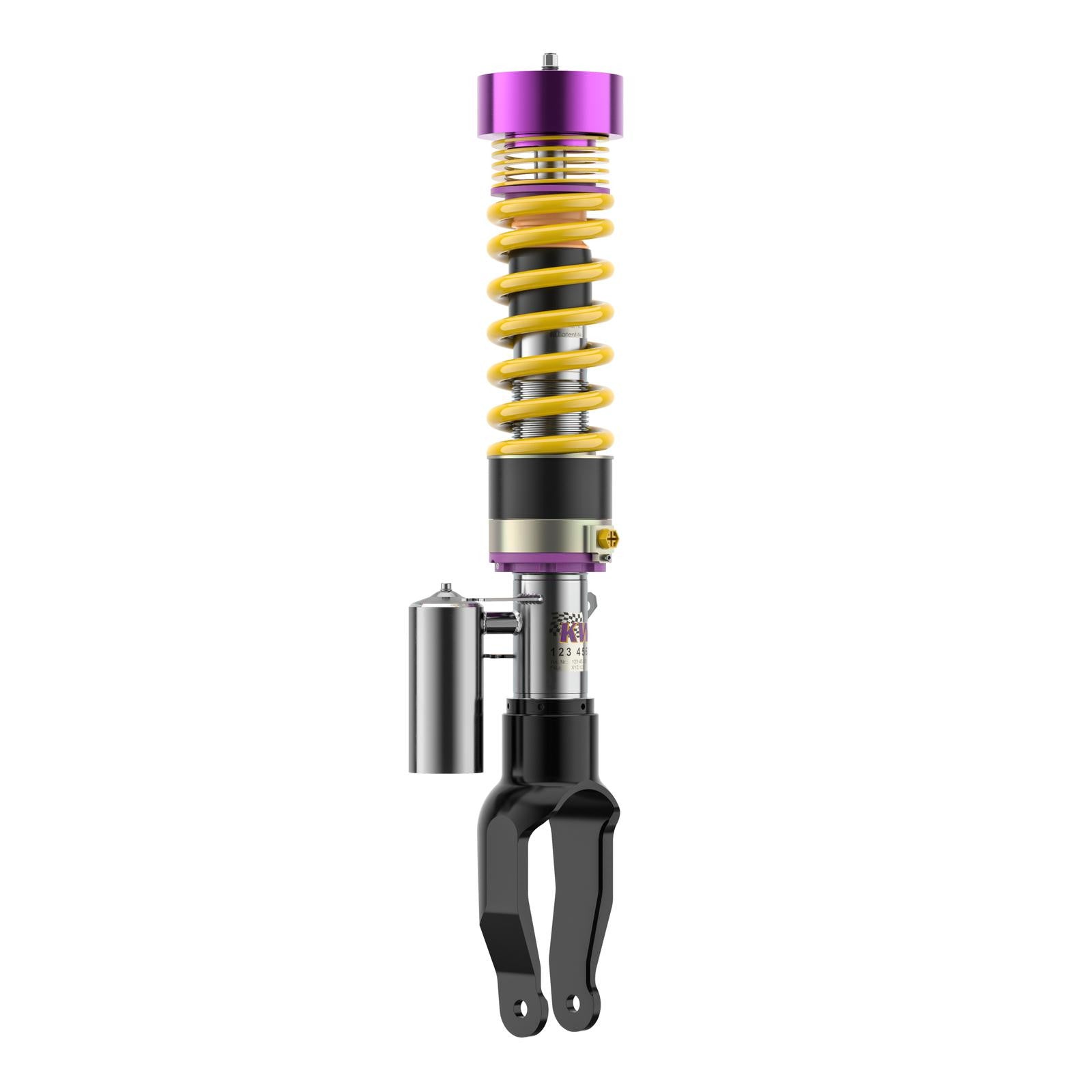

The KW 35285206 V3 Coilover Kit combines independently adjustable damping with the KW HLS 2 hydraulic lift system for Nissan GT-R R35 models. The V3 suspension allows separate rebound and low-speed compression adjustment, giving drivers precise control over handling, stability, and ride comfort. The integrated HLS 2 system raises the front axle when additional ground clearance is needed for steep driveways, speed bumps, parking structures, and other obstacles, then returns the vehicle to its lowered driving position.

Developed through extensive road, track, Nürburgring Nordschleife, and KW 7-post testing, this complete system delivers performance-focused handling without sacrificing everyday usability. Stainless steel inox-line damper housings, composite spring seats, and dirt-resistant trapezoidal threads provide durable, continuously adjustable lowering.

Key Features

KW HLS 2 Included: Hydraulic front-axle lift system provides temporary additional ground clearance

Front-Axle Lift Function: Helps the GT-R clear speed bumps, steep entrances, ramps, and parking structures

Independent Damping Control: Rebound and compression damping can be adjusted separately

16-Click Rebound Adjustment: Fine-tunes body control, steering response, stability, and ride comfort

12-Click Compression Adjustment: Adjusts low-speed compression to manage body roll, pitch, and chassis support

Continuous Ride-Height Adjustment: Allows customized lowering within KW’s tested adjustment range

Performance and Comfort: Vehicle-specific setup balances sharper handling with street-friendly ride quality

Stainless Steel Construction: KW inox-line housings provide corrosion resistance and long-term durability

Composite Spring Seats: Durable collars operate on dirt-resistant trapezoidal adjustment threads

7-Post Tested: Developed using advanced suspension testing and extensive road and track evaluation

Complete Suspension Solution: Combines adjustable V3 coilovers and a hydraulic clearance system in one package

Technical Specs

Brand: KW Suspension

Part Number: 35285206

Product Series: V3 with HLS 2

Part Type: Adjustable coilover and hydraulic lift-system kit

Coilover Position: Front and rear

Lift-System Position: Front axle

Lift-System Type: KW HLS 2 hydraulic lift system

Damper Design: Twin-tube

Rebound Adjustment: 16 clicks

Compression Adjustment: 12 clicks

Compression Type: Low-speed compression

Damping Adjustment: Independently adjustable rebound and compression

Ride-Height Adjustment: Continuous within the tested adjustment range

Housing Material: Stainless steel

Housing Technology: KW inox-line

Spring Seat Material: Composite

Adjustment Thread: Dirt-resistant trapezoidal thread

Testing: KW 7-post rig, road testing, motorway testing, and Nürburgring Nordschleife development

Shocks Included: Yes

Coilover Springs Included: Yes

KW HLS 2 Included: Yes

Quantity: Sold as a complete vehicle kit

Vehicle Fitment

2009-2021 Nissan GT-R R35

2023-2024 Nissan GT-R R35
