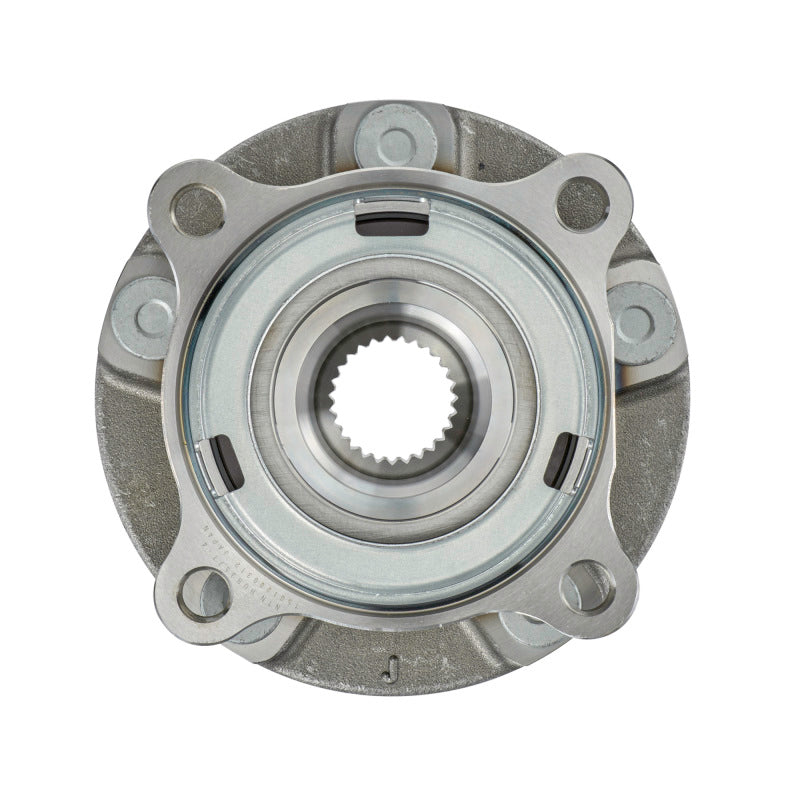

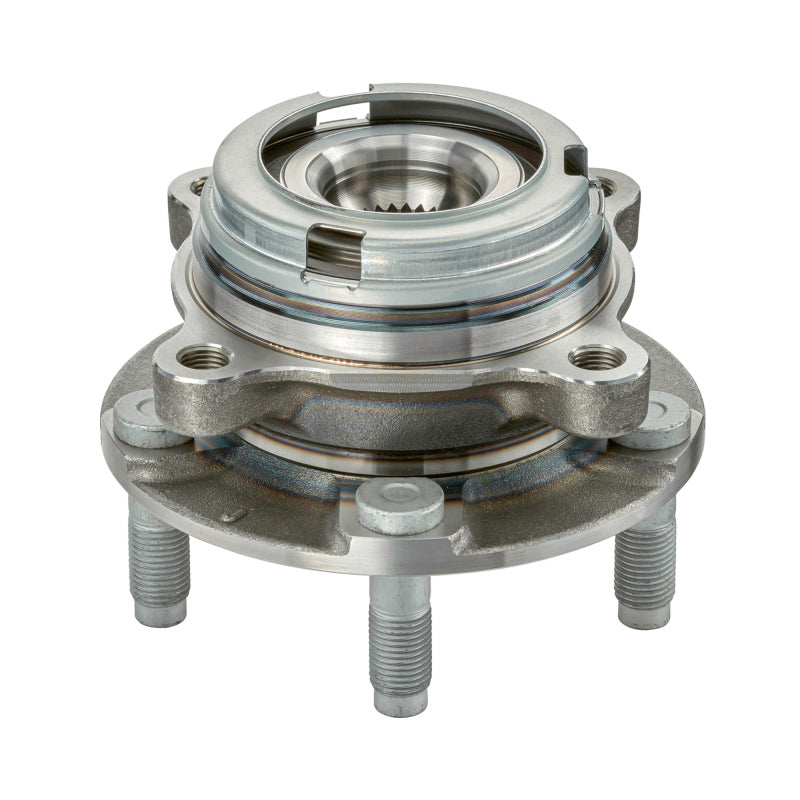

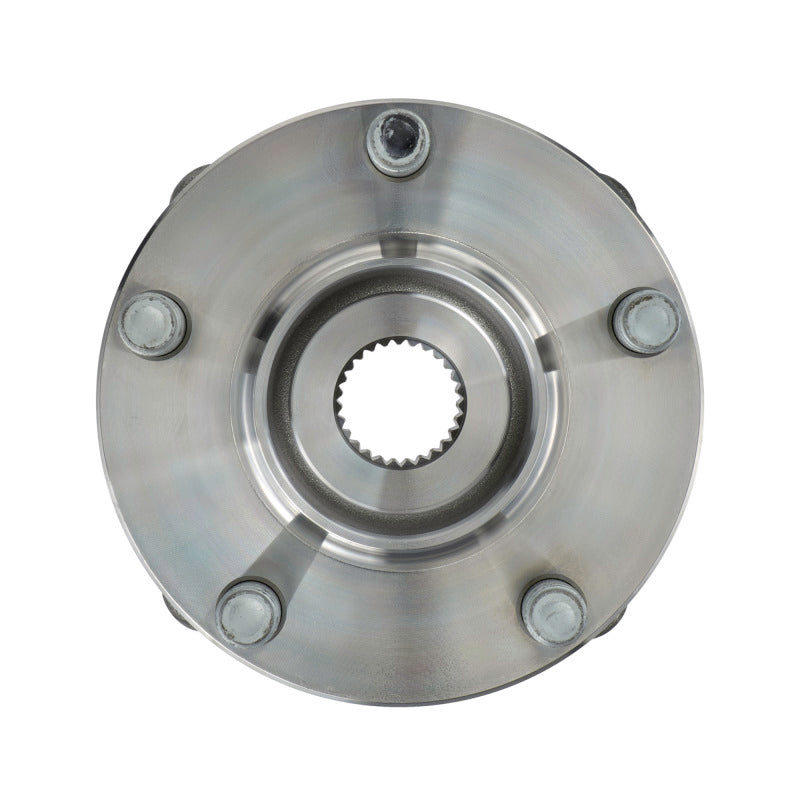

MOOG Front Wheel Bearing & Hub Assembly for 2015-2024 Nissan R35 GT-R - 513385

Direct-replacement front Wheel Bearing & Hub Assembly

Designed for 2015-2024 Nissan R35 GT-R models

Precision-matched bearing raceways and rolling elements

Roll-form design helps maintain consistent bearing preload

Engineered to minimize unwanted noise and vibration

Durable steel wheel hub construction

Natural hub finish

Includes five installed wheel studs

Four-hole mounting flange

27-spline hub design

Sold individually

Order two assemblies for complete front axle replacement

Brand: MOOG

Product Type: Wheel Bearing & Hub Assembly

Part Number: 513385

Position: Front

Quantity: Sold individually

Quantity Required Per Vehicle: 2

Wheel Hub Material: Steel

Wheel Hub Finish: Natural

Spline Quantity: 27

Wheel Stud Quantity: 5

Wheel Studs Included: Yes

Flange Bolt-Hole Quantity: 4

Flange Diameter: 135.7mm

Flange Offset: 40.6mm

Bolt Circle Diameter: 114.7mm

Wheel Pilot Diameter: 65.8mm

Brake Pilot Diameter: 67.8mm

Hub Pilot Diameter: 92.9mm

Anti-Lock Brake Sensor Included: No

Mounting Hardware Included: No

MOOG is an automotive aftermarket brand specializing in replacement steering, suspension, wheel-end and driveline components. Its history began in 1919, with the MOOG name becoming associated with front-end replacement parts during the 1930s. After introducing components that addressed weaknesses found in factory designs, MOOG developed its long-standing reputation as “The Problem Solver.” Today, the brand offers wheel bearing and hub assemblies, sway bar links, control arms, ball joints, tie rods, bushings, coil springs, alignment components, universal joints and other undercar parts. MOOG engineers evaluate original components and develop application-specific improvements intended to increase durability, simplify installation and restore dependable steering or suspension operation.

For the Nissan R35 GT-R, MOOG offers direct-replacement wheel bearing and hub assemblies and suspension stabilizer bar links for select model years and positions. These components are designed to replace worn factory parts that may contribute to wheel-bearing noise, looseness, vibration, clunking or reduced suspension stability. Select MOOG sway bar end links feature greaseable sockets that allow fresh lubricant to flush away contaminants, while MOOG hub assemblies use application-specific designs intended to provide dependable wheel support and straightforward installation. Whether repairing a regularly driven GT-R or refreshing an aging R35 suspension, MOOG provides replacement parts focused on restoring quiet operation, proper handling and factory-like road manners.

Qualifying MOOG products purchased and professionally installed through authorized dealers receive the following limited manufacturer warranties:

• MOOG Chassis and Driveline products: Limited lifetime warranty for as long as the original purchaser owns the vehicle on which the part was installed

• MOOG wheel hub and complete knuckle assemblies: Three years or 36,000 miles after installation, whichever occurs first

Coverage applies to defects in materials or workmanship under normal use on catalog-listed applications. The warranty is limited to replacement with a comparable DRiV product and does not cover labor, diagnosis, removal, installation or other related expenses.

Coverage does not apply to improper installation, incorrect applications, normal wear, accidents, racing, vehicle modifications, commercial use or products transferred to another vehicle. Purchases from unauthorized sellers are also excluded.

To begin a claim, contact Elite GT-R Parts with your order number, MOOG part number, dated proof of purchase, installation documentation and photographs of the affected component. Keep the original part, as it may need to be returned for inspection. Final warranty eligibility and replacement approval are determined by MOOG and DRiV under their current warranty terms.
