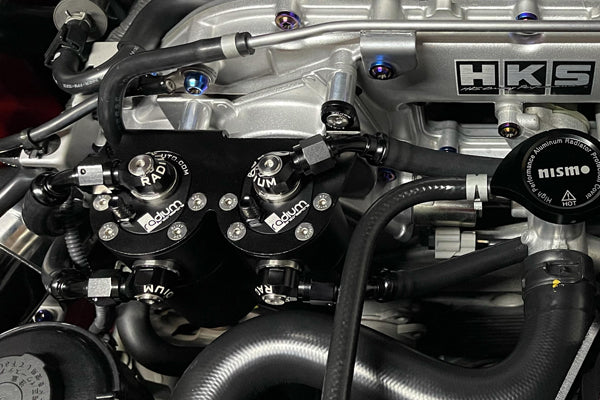

Radium Engineering Dual Oil Catch Can Kit for Nissan GT-R R35 - 20-0555-FL

Dual CCV Protection: Uses one catch can for each cylinder head breather circuit

Closed-Loop Operation: Retains factory crankcase ventilation routing without venting vapors into the engine bay

High-Load Oil Control: Captures blow-by and oil vapor exiting the head breathers when the PCV valve closes under boost

Cleaner Intake System: Helps reduce oil buildup in turbo inlet piping, intercoolers, throttle bodies, and intake components

Direct-Fit Installation: Uses application-specific brackets and factory mounting points with no drilling required

Patented Fluid Lock® System: Helps prevent collected fluid from escaping during aggressive driving

Two-Stage Baffling: Separates oil and moisture from crankcase gases before they return to the intake

Integrated Dipsticks: Allows quick inspection of collected fluid without removing the catch cans

Brand: Radium Engineering

Manufacturer Part Number: 20-0555-FL

Part Type: Dual oil catch can kit

System Type: Closed-loop dual crankcase ventilation catch can system

Catch Can Quantity: Two

Application: One catch can for each cylinder head breather

Installation: Direct fit with no drilling required

Inlet Ports: 10AN ORB

Outlet Ports: 10AN ORB

Drain Ports: 4AN ORB

Oil Separation: Two-step internal baffling

Dipsticks: O-ring sealed

Capacity: 7 fluid ounces per catch can

Fluid Control: Patented Fluid Lock® system

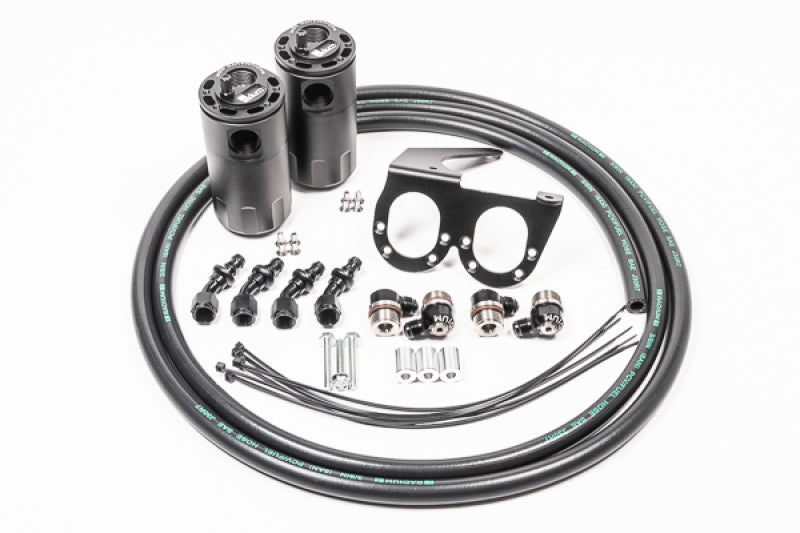

Includes: Anodized oil catch cans with integrated condensers and dipsticks

Includes: Anodized aluminum R35 GT-R-specific mounting brackets

Includes: Anodized aluminum AN adapter fittings and hose ends

Includes: Radium Engineering PCV hose

Includes: Stainless steel mounting hardware

Radium Engineering is an American performance-parts manufacturer specializing in advanced fuel-delivery, crankcase-ventilation and fluid-management components. Owner-operated and based in Clackamas, Oregon, Radium has developed automotive products since 2010 using in-house research, computer simulation, 3D modeling and extensive product testing. Its catalog includes fuel rails, fuel-pressure regulators, fuel-pump hangers, surge tanks, fuel cells, filters, catch cans, air-oil separators, coolant tanks, fittings and complete vehicle-specific fuel systems. Radium products are developed for performance street cars and motorsport applications, with an emphasis on functionality, precise fitment and clean visual design.

For Nissan Skyline GT-R and R35 GT-R builds, Radium offers dedicated components for the RB26DETT and VR38DETT platforms. Its Skyline catalog includes RB26 fuel rails, catch-can kits, fuel-pump hangers, surge-tank systems and complete fuel-delivery packages for the R32, R33 and R34 GT-R. R35 products include fuel rails, pump hangers, fuel-filter mounts, complete fuel-delivery systems, catch cans, coolant tanks, fuel-line retainers and GR6 transmission filters. These products give GT-R builders options ranging from a simple engine-bay upgrade to a complete high-flow fuel system for gasoline, ethanol or other compatible racing fuels. Exact pump compatibility, vehicle configuration and installation requirements should be confirmed for each product before ordering.

Radium Engineering-branded products include a one-year limited manufacturer’s warranty from the original purchase date. Coverage applies to the original purchaser and protects against defects in Radium materials or workmanship. After inspection, Radium may repair or replace an approved product at its discretion. Warranty coverage cannot exceed the product’s original purchase price.

The warranty does not cover:

• Improper installation or incorrect use

• Product modification, abuse or unauthorized repair

• Labor, towing or other secondary expenses

• Damage to the vehicle or surrounding components

• Third-party products supplied with a Radium kit

Fuel pumps, turbochargers and other non-Radium components are covered only by their original manufacturer, even when purchased with a Radium product. Radium specifically states that it does not administer warranty coverage for fuel pumps.

To begin a claim, contact Elite GT-R Parts with your order number, Radium part number, a description of the issue and clear photographs or video. Relevant installation and vehicle information may also be requested. Do not modify or return the product before receiving instructions. An approved RMA, proof of purchase and the failed component are required, and Radium must receive the return within 14 days after issuing the RMA. The customer is responsible for prepaid shipping to Radium for inspection. Final warranty eligibility and resolution are determined by Radium Engineering.
