Radium Engineering Fuel Rails for 2009-2025 Nissan GT-R R35 VR38DETT - 20-0556-02

Large Internal Bore: Supports the fuel delivery requirements of high-output VR38DETT applications

Eight Total Ports: Each rail has two end ports and two top ports for flexible fuel system routing

Flexible Plumbing: Fuel rails can be configured in parallel or series

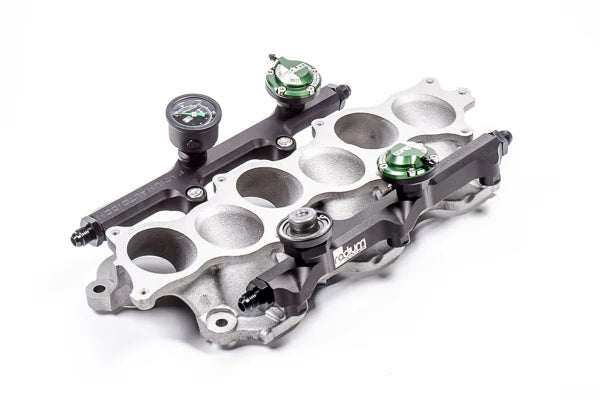

Accessory Support: Multiple ports make it easier to add pressure transducers, fuel pulse dampers, and gauge adapters

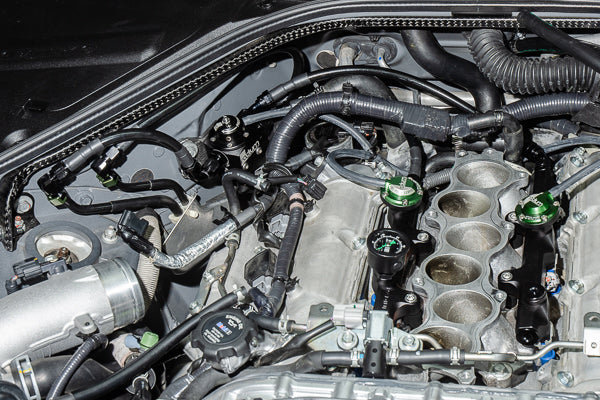

Thermal Isolation: Supplied spacers and washers provide complete fuel rail insulation from the hot intake manifold

Shorter Rail Design: Lower intake manifold mounting points allow the use of shorter, less restrictive rails

OEM Clip Compatibility: Factory fuel injector clips can be reused

E85 Compatible: Black anodized aluminum construction is compatible with popular fuel types, including E85

Brand: Radium Engineering

Manufacturer Part Number: 20-0556-02

Part Type: Upgrade fuel rail set

Engine Compatibility: Nissan VR38DETT

Material: Machined 6061 aluminum

Finish: Black anodized

Fuel Rail Quantity: Two

Port Size: 8AN ORB

Ports Per Rail: Four

Total Ports: Eight

Port Locations Per Rail: Two end ports and two top ports

Injector Type: OEM or OEM-equivalent injectors

Injector Clips: OEM injector clips can be reused

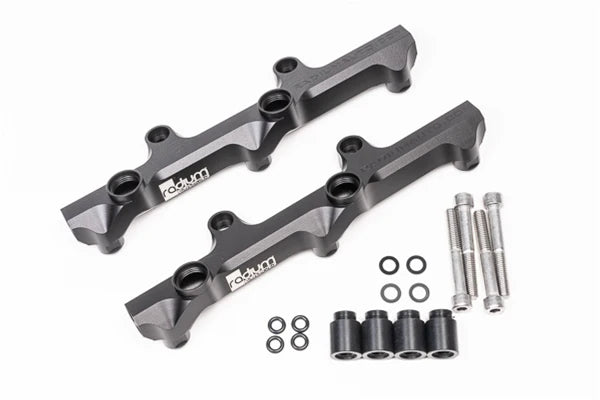

Includes: Anodized billet aluminum fuel rails, quantity two

Includes: Thermal washers, quantity four

Includes: Thermal spacers, quantity four

Includes: Stainless steel mounting hardware

Adapter Fittings: Sold separately

Fuel Injectors: Not included

Radium Engineering is an American performance-parts manufacturer specializing in advanced fuel-delivery, crankcase-ventilation and fluid-management components. Owner-operated and based in Clackamas, Oregon, Radium has developed automotive products since 2010 using in-house research, computer simulation, 3D modeling and extensive product testing. Its catalog includes fuel rails, fuel-pressure regulators, fuel-pump hangers, surge tanks, fuel cells, filters, catch cans, air-oil separators, coolant tanks, fittings and complete vehicle-specific fuel systems. Radium products are developed for performance street cars and motorsport applications, with an emphasis on functionality, precise fitment and clean visual design.

For Nissan Skyline GT-R and R35 GT-R builds, Radium offers dedicated components for the RB26DETT and VR38DETT platforms. Its Skyline catalog includes RB26 fuel rails, catch-can kits, fuel-pump hangers, surge-tank systems and complete fuel-delivery packages for the R32, R33 and R34 GT-R. R35 products include fuel rails, pump hangers, fuel-filter mounts, complete fuel-delivery systems, catch cans, coolant tanks, fuel-line retainers and GR6 transmission filters. These products give GT-R builders options ranging from a simple engine-bay upgrade to a complete high-flow fuel system for gasoline, ethanol or other compatible racing fuels. Exact pump compatibility, vehicle configuration and installation requirements should be confirmed for each product before ordering.

Radium Engineering-branded products include a one-year limited manufacturer’s warranty from the original purchase date. Coverage applies to the original purchaser and protects against defects in Radium materials or workmanship. After inspection, Radium may repair or replace an approved product at its discretion. Warranty coverage cannot exceed the product’s original purchase price.

The warranty does not cover:

• Improper installation or incorrect use

• Product modification, abuse or unauthorized repair

• Labor, towing or other secondary expenses

• Damage to the vehicle or surrounding components

• Third-party products supplied with a Radium kit

Fuel pumps, turbochargers and other non-Radium components are covered only by their original manufacturer, even when purchased with a Radium product. Radium specifically states that it does not administer warranty coverage for fuel pumps.

To begin a claim, contact Elite GT-R Parts with your order number, Radium part number, a description of the issue and clear photographs or video. Relevant installation and vehicle information may also be requested. Do not modify or return the product before receiving instructions. An approved RMA, proof of purchase and the failed component are required, and Radium must receive the return within 14 days after issuing the RMA. The customer is responsible for prepaid shipping to Radium for inspection. Final warranty eligibility and resolution are determined by Radium Engineering.
