Radium Engineering Fuel Filter Mount for 2009-2025 Nissan GT-R R35 - 20-0559

Direct-Fit Mounting: Uses factory threaded bosses in the R35 chassis

No Permanent Modifications: Installs without drilling, cutting, or welding

Heat Protection: Includes a specially designed aluminum heat shield

Billet Aluminum Clamp: Securely supports compatible 60 mm fuel filters or pumps

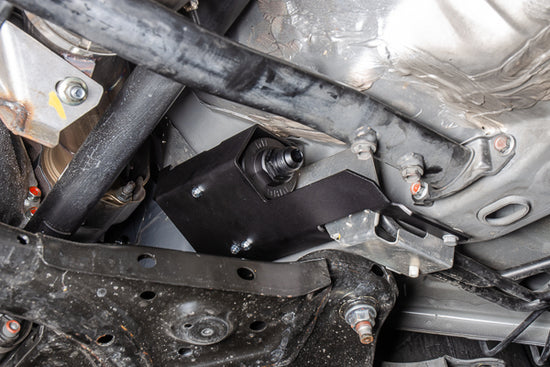

Optimized Location: Positions the filter away from the hot downpipes

Fuel Hose Support: Includes a separate bracket to secure fuel hoses farther forward

Corrosion Resistant: Anodized aluminum construction and stainless steel hardware provide long-term durability

Bosch Pump Compatibility: The 60 mm clamp can also secure an external Bosch 0 580 254 044 fuel pump

Brand: Radium Engineering

Manufacturer Part Number: 20-0559

Part Type: Fuel filter mount

Vehicle Application: Nissan GT-R R35

Clamp Diameter: 60 mm (2.36 inches)

Mounting Method: Existing OEM threaded chassis bosses

Bracket Material: Anodized aluminum

Clamp Material: Billet anodized aluminum

Heat Shield Material: Anodized aluminum

Hardware Material: Stainless steel

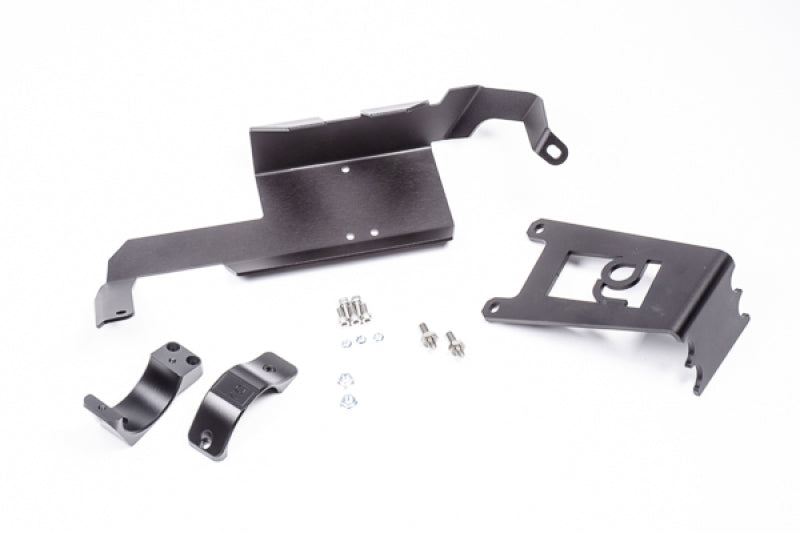

Includes: Anodized aluminum mounting bracket

Includes: Anodized aluminum fuel filter mount

Includes: Anodized aluminum heat shield

Includes: Fuel hose support bracket

Includes: Stainless steel mounting hardware

Fuel Filter Included: No

Fuel Lines and Fittings Included: No

Additional Compatibility: Bosch 0 580 254 044 external fuel pump

Radium Engineering is an American performance-parts manufacturer specializing in advanced fuel-delivery, crankcase-ventilation and fluid-management components. Owner-operated and based in Clackamas, Oregon, Radium has developed automotive products since 2010 using in-house research, computer simulation, 3D modeling and extensive product testing. Its catalog includes fuel rails, fuel-pressure regulators, fuel-pump hangers, surge tanks, fuel cells, filters, catch cans, air-oil separators, coolant tanks, fittings and complete vehicle-specific fuel systems. Radium products are developed for performance street cars and motorsport applications, with an emphasis on functionality, precise fitment and clean visual design.

For Nissan Skyline GT-R and R35 GT-R builds, Radium offers dedicated components for the RB26DETT and VR38DETT platforms. Its Skyline catalog includes RB26 fuel rails, catch-can kits, fuel-pump hangers, surge-tank systems and complete fuel-delivery packages for the R32, R33 and R34 GT-R. R35 products include fuel rails, pump hangers, fuel-filter mounts, complete fuel-delivery systems, catch cans, coolant tanks, fuel-line retainers and GR6 transmission filters. These products give GT-R builders options ranging from a simple engine-bay upgrade to a complete high-flow fuel system for gasoline, ethanol or other compatible racing fuels. Exact pump compatibility, vehicle configuration and installation requirements should be confirmed for each product before ordering.

Radium Engineering-branded products include a one-year limited manufacturer’s warranty from the original purchase date. Coverage applies to the original purchaser and protects against defects in Radium materials or workmanship. After inspection, Radium may repair or replace an approved product at its discretion. Warranty coverage cannot exceed the product’s original purchase price.

The warranty does not cover:

• Improper installation or incorrect use

• Product modification, abuse or unauthorized repair

• Labor, towing or other secondary expenses

• Damage to the vehicle or surrounding components

• Third-party products supplied with a Radium kit

Fuel pumps, turbochargers and other non-Radium components are covered only by their original manufacturer, even when purchased with a Radium product. Radium specifically states that it does not administer warranty coverage for fuel pumps.

To begin a claim, contact Elite GT-R Parts with your order number, Radium part number, a description of the issue and clear photographs or video. Relevant installation and vehicle information may also be requested. Do not modify or return the product before receiving instructions. An approved RMA, proof of purchase and the failed component are required, and Radium must receive the return within 14 days after issuing the RMA. The customer is responsible for prepaid shipping to Radium for inspection. Final warranty eligibility and resolution are determined by Radium Engineering.
