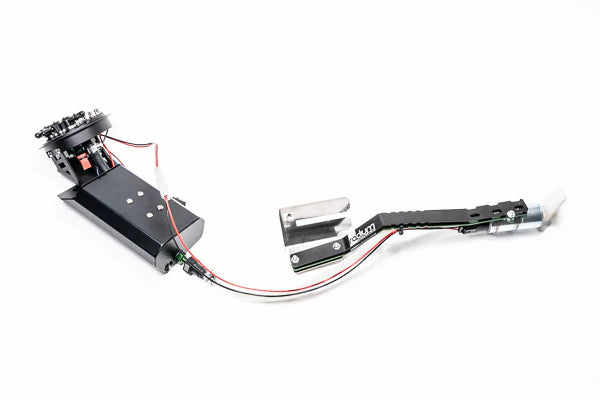

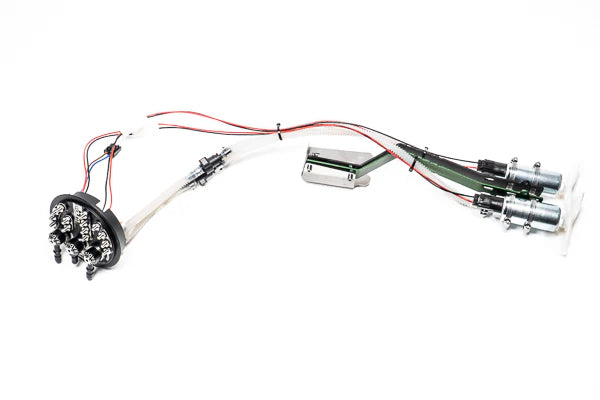

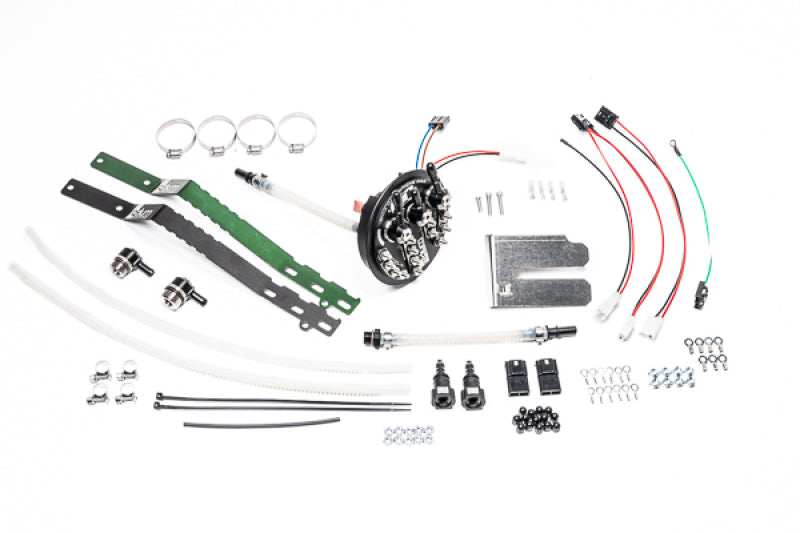

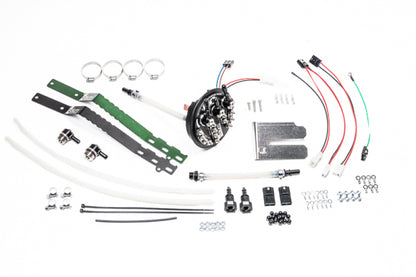

Radium Engineering Fuel Pump Hanger for Nissan Skyline R33 & R34 (Walbro GSS342/AEM) - 20-0630-00

  • Radium 20-0630-00 fuel pump hanger for Skyline R33 and R34 compatible with Walbro GSS342 and AEM fuel pumps
  • Radium 20-0630-00 fuel pump hanger for Skyline R33 and R34 compatible with Walbro GSS342 and AEM fuel pumps
  • Radium 20-0630-00 fuel pump hanger for Skyline R33 and R34 compatible with Walbro GSS342 and AEM fuel pumps
1 3
$503.45 USD
$503.45 USD
Shipping calculated at checkout.
Radium Engineering
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

RAD20-0630-00
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

In stock
Fuel Pump Hangers
Found a better price elsewhere? View full details

Description

The Radium Engineering 20-0630-00 Fuel Pump Hanger is a high-performance drop-in replacement designed for the Nissan Skyline R33 and R34. Engineered to support one or two aftermarket fuel pumps, this billet aluminum hanger eliminates the fuel return restriction found in the factory venturi jet pump while maintaining effective fuel scavenging across the saddle-style fuel tank. Featuring large ORB ports, brushless fuel pump compatibility, upgraded electrical hardware, and support for gasoline, methanol, and E85, this hanger provides the reliability and fuel delivery required for high-horsepower street and motorsport applications. The modular design also supports future expansion with Radium's Fuel Hanger Surge Tank (FHST) add-on.

Key Features

Drop-In Installation: Direct replacement for the factory fuel pump hanger with no permanent vehicle modifications

Supports One or Two Fuel Pumps: Easily configured for single or dual fuel pump applications

High-Flow Fuel Delivery: Large ORB ports reduce restrictions and support high horsepower fuel systems

Brushless Pump Compatible: Ready for modern brushless fuel pump configurations

Redesigned Venturi Jet Pump: Eliminates restrictive factory return flow while maintaining proper fuel transfer across the saddle tank

High Current Electrical System: Heavy-duty sealed electrical studs support high-current fuel pumps without bulkhead connector limitations

Future Expandable: Compatible with the optional Radium FHST Fuel Hanger Surge Tank system

E85 Compatible: Safe for gasoline, ethanol blends, methanol, and other performance fuels

Premium Construction: CNC-machined anodized aluminum with stainless steel hardware for maximum durability

Technical Specs

Brand: Radium Engineering

Manufacturer Part Number: 20-0630-00

Part Type: Fuel pump hanger

Installation: Direct drop-in replacement

Construction: CNC-machined anodized aluminum

Pump Capacity: One or two fuel pumps

Compatible Fuel Pumps:

Walbro GSS342 255 LPH

AEM 50-1200

AEM 50-1230

AEM 50-1235

Pump-Out Port: 10AN ORB female

Return Port: 8AN ORB female

Fuel Compatibility: Gasoline, Methanol, E85, and ethanol blends

Venturi System: Integrated restriction-free venturi jet pump siphon

Return Valve: Fluorosilicone duckbill valve

Electrical Studs: Anti-rotation stainless steel terminals

Internal Wiring: Chemical-resistant ETFE insulated wiring

Hardware: Stainless steel hardware and clamps

Fuel Pump Included: No

Quantity: Sold individually

Vehicle Fitment

1995-1998 Nissan Skyline R33

1999-2002 Nissan Skyline R34

Compatible Fuel Pumps:

Walbro GSS342 255 LPH

AEM 50-1200

AEM 50-1230

AEM 50-1235
