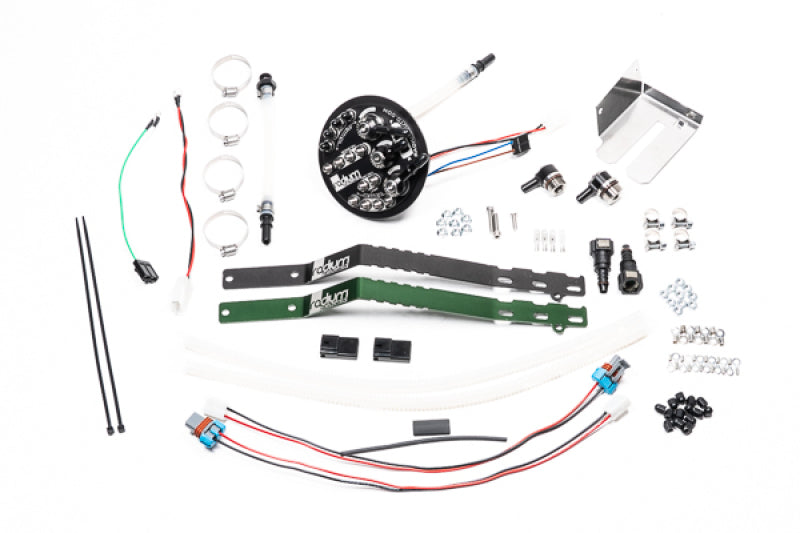

Radium Engineering Fuel Pump Hanger for 1995-2002 Nissan Skyline GT-R R33/R34 - 20-0632-00

Drop-In Installation: Direct replacement for the factory fuel pump hanger with minimal modification required

Supports One or Two Fuel Pumps: Configurable for single or dual in-tank fuel pump setups

Brushless Fuel Pump Compatible: Designed to support modern high-flow brushless fuel pumps

OEM Fuel Line Compatibility: Pre-installed adapters connect directly to factory SAE quick-connect and hose barb fuel lines

Restriction-Free Return System: Redesigned siphon system eliminates the factory venturi restriction while maintaining proper fuel transfer

High-Flow Feed Port: Large 10AN ORB outlet supports high-horsepower fuel systems

Large Return Port: 8AN ORB return minimizes fuel return restriction

Billet Aluminum Construction: Precision CNC-machined and anodized for durability and corrosion resistance

High-Current Electrical Studs: Hermetically sealed stainless-steel terminals safely support high-current fuel pumps

Chemical Resistant Wiring: ETFE insulated in-tank wiring provides long-term reliability with gasoline, ethanol, and methanol

Integrated Venturi Siphon: Maintains proper fuel transfer between tank chambers

Fluorosilicone Duckbill Valve: Designed for reliable fuel return operation

Brand: Radium Engineering

Manufacturer Part Number: 20-0632-00

Part Type: Fuel pump hanger assembly

Vehicle Platform: Nissan Skyline GT-R

Material: CNC-machined anodized aluminum

Pump Capacity: One or two fuel pumps

Compatible Fuel Pumps:

Ti Automotive / Walbro F90000267

Ti Automotive / Walbro F90000274

Ti Automotive / Walbro F90000285

Ti Automotive E5LM Brushless Fuel Pump

Feed Port: 10AN ORB female (7/8"-14)

Return Port: 8AN ORB female (3/4"-16)

Electrical Terminals: Anti-rotation stainless-steel studs

Internal Wiring: ETFE insulated

Fuel Compatibility: Gasoline, E85, Methanol

Return Valve: Fluorosilicone duckbill

Quantity: Sold as one complete fuel pump hanger assembly

Included Components

Fuel Pump Hanger Assembly

Installation Hardware for One or Two Pumps

Fuel Pump Filter Socks (where applicable)

Electrical Hardware

OEM Feed and Return Line Adapter Fittings

Stainless Steel Hardware and Clamps

Miscellaneous Installation Hardware

Radium Engineering is an American performance-parts manufacturer specializing in advanced fuel-delivery, crankcase-ventilation and fluid-management components. Owner-operated and based in Clackamas, Oregon, Radium has developed automotive products since 2010 using in-house research, computer simulation, 3D modeling and extensive product testing. Its catalog includes fuel rails, fuel-pressure regulators, fuel-pump hangers, surge tanks, fuel cells, filters, catch cans, air-oil separators, coolant tanks, fittings and complete vehicle-specific fuel systems. Radium products are developed for performance street cars and motorsport applications, with an emphasis on functionality, precise fitment and clean visual design.

For Nissan Skyline GT-R and R35 GT-R builds, Radium offers dedicated components for the RB26DETT and VR38DETT platforms. Its Skyline catalog includes RB26 fuel rails, catch-can kits, fuel-pump hangers, surge-tank systems and complete fuel-delivery packages for the R32, R33 and R34 GT-R. R35 products include fuel rails, pump hangers, fuel-filter mounts, complete fuel-delivery systems, catch cans, coolant tanks, fuel-line retainers and GR6 transmission filters. These products give GT-R builders options ranging from a simple engine-bay upgrade to a complete high-flow fuel system for gasoline, ethanol or other compatible racing fuels. Exact pump compatibility, vehicle configuration and installation requirements should be confirmed for each product before ordering.

Radium Engineering-branded products include a one-year limited manufacturer’s warranty from the original purchase date. Coverage applies to the original purchaser and protects against defects in Radium materials or workmanship. After inspection, Radium may repair or replace an approved product at its discretion. Warranty coverage cannot exceed the product’s original purchase price.

The warranty does not cover:

• Improper installation or incorrect use

• Product modification, abuse or unauthorized repair

• Labor, towing or other secondary expenses

• Damage to the vehicle or surrounding components

• Third-party products supplied with a Radium kit

Fuel pumps, turbochargers and other non-Radium components are covered only by their original manufacturer, even when purchased with a Radium product. Radium specifically states that it does not administer warranty coverage for fuel pumps.

To begin a claim, contact Elite GT-R Parts with your order number, Radium part number, a description of the issue and clear photographs or video. Relevant installation and vehicle information may also be requested. Do not modify or return the product before receiving instructions. An approved RMA, proof of purchase and the failed component are required, and Radium must receive the return within 14 days after issuing the RMA. The customer is responsible for prepaid shipping to Radium for inspection. Final warranty eligibility and resolution are determined by Radium Engineering.
