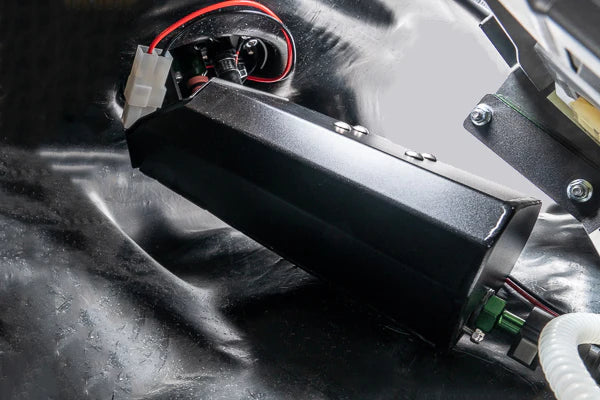

Radium Engineering FHST Fuel Hanger Surge Tank Add-On for Nissan Skyline R33 & R34 - 20-0700

Simple Fuel Hanger Integration: Installs directly onto a compatible Radium fuel pump hanger

Fuel Starvation Protection: Helps eliminate fuel pressure drop caused by fuel slosh in the factory saddle-style tank

Supports One or Two Surge Pumps: Configure the surge tank with one or two internal fuel pumps

Brushless Fuel Pump Compatible: Supports modern brushless fuel pump applications

High Current Electrical Hardware: Designed for reliable operation with high-output fuel pumps

Anodized Aluminum Construction: Lightweight, corrosion-resistant components built for long service life

No Vehicle Modifications Required: Installs without cutting, grinding, or bending the factory fuel tank

Alternative Fuel Compatible: Safe for gasoline, ethanol blends including E85, and methanol

OEM-Style Installation: Fits completely inside the factory fuel tank for a clean installation

Brand: Radium Engineering

Manufacturer Part Number: 20-0700

Product Name: Fuel Hanger Surge Tank (FHST) Add-On

Part Type: In-tank fuel surge tank

Construction: CNC-machined anodized aluminum

Pump Capacity: One or two surge pumps

Compatible Fuel Pumps:

Walbro GSS342 255 LPH

AEM 50-1200

AEM 50-1230

AEM 50-1235

Brushless Fuel Pump Compatibility: Yes

Fuel Compatibility: Gasoline, Ethanol, E85, Methanol

Electrical Hardware: High-current wiring hardware included

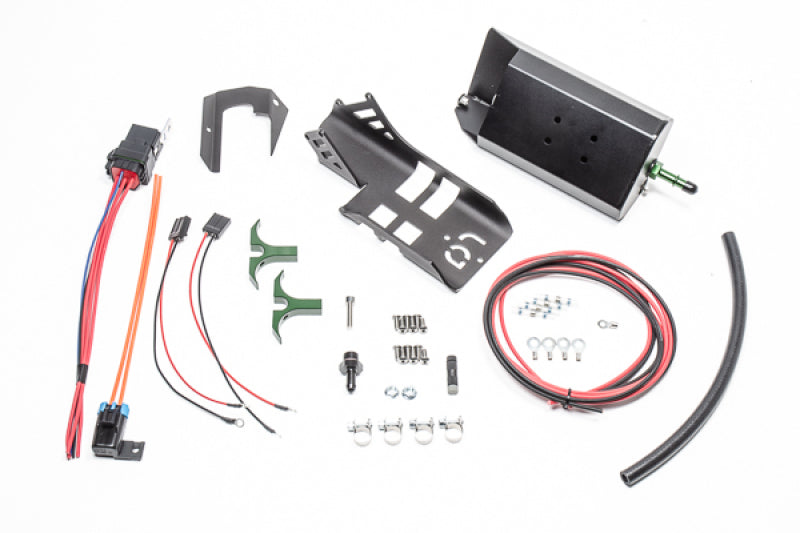

Includes: Anodized aluminum FHST mounting bracket

Includes: Anodized aluminum surge tank canister

Includes: Anodized aluminum surge tank top cover

Includes: Anodized aluminum pump clamps

Includes: DIY wiring kit for one fuel pump

Includes: Fuel pump harnesses (2)

Includes: Required fittings and installation hose

Includes: Stainless steel hardware and clamps

Quantity: Sold as one FHST add-on assembly

Radium Engineering is an American performance-parts manufacturer specializing in advanced fuel-delivery, crankcase-ventilation and fluid-management components. Owner-operated and based in Clackamas, Oregon, Radium has developed automotive products since 2010 using in-house research, computer simulation, 3D modeling and extensive product testing. Its catalog includes fuel rails, fuel-pressure regulators, fuel-pump hangers, surge tanks, fuel cells, filters, catch cans, air-oil separators, coolant tanks, fittings and complete vehicle-specific fuel systems. Radium products are developed for performance street cars and motorsport applications, with an emphasis on functionality, precise fitment and clean visual design.

For Nissan Skyline GT-R and R35 GT-R builds, Radium offers dedicated components for the RB26DETT and VR38DETT platforms. Its Skyline catalog includes RB26 fuel rails, catch-can kits, fuel-pump hangers, surge-tank systems and complete fuel-delivery packages for the R32, R33 and R34 GT-R. R35 products include fuel rails, pump hangers, fuel-filter mounts, complete fuel-delivery systems, catch cans, coolant tanks, fuel-line retainers and GR6 transmission filters. These products give GT-R builders options ranging from a simple engine-bay upgrade to a complete high-flow fuel system for gasoline, ethanol or other compatible racing fuels. Exact pump compatibility, vehicle configuration and installation requirements should be confirmed for each product before ordering.

Radium Engineering-branded products include a one-year limited manufacturer’s warranty from the original purchase date. Coverage applies to the original purchaser and protects against defects in Radium materials or workmanship. After inspection, Radium may repair or replace an approved product at its discretion. Warranty coverage cannot exceed the product’s original purchase price.

The warranty does not cover:

• Improper installation or incorrect use

• Product modification, abuse or unauthorized repair

• Labor, towing or other secondary expenses

• Damage to the vehicle or surrounding components

• Third-party products supplied with a Radium kit

Fuel pumps, turbochargers and other non-Radium components are covered only by their original manufacturer, even when purchased with a Radium product. Radium specifically states that it does not administer warranty coverage for fuel pumps.

To begin a claim, contact Elite GT-R Parts with your order number, Radium part number, a description of the issue and clear photographs or video. Relevant installation and vehicle information may also be requested. Do not modify or return the product before receiving instructions. An approved RMA, proof of purchase and the failed component are required, and Radium must receive the return within 14 days after issuing the RMA. The customer is responsible for prepaid shipping to Radium for inspection. Final warranty eligibility and resolution are determined by Radium Engineering.
