Radium Engineering FHST Fuel Hanger Surge Tank Add-On for Nissan Skyline R33 & R34 - 20-0701

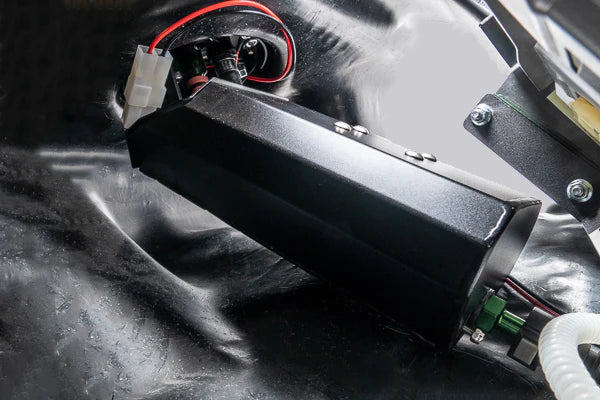

In-Tank Surge Tank Design: Eliminates fuel starvation while retaining a clean OEM-style installation

Compatible with Radium Fuel Hangers: Installs directly onto the corresponding Radium fuel pump hanger

Supports One or Two Surge Pumps: Configure the surge tank with one or two internal fuel pumps

Brushless Pump Compatible: Supports modern Ti Automotive brushless fuel pumps along with Walbro/Ti Automotive turbine pumps

No Vehicle Modification Required: Installs without cutting, grinding, or bending the chassis or fuel tank

Fuel Starvation Protection: Maintains consistent fuel supply during aggressive acceleration, braking, and cornering

Multiple Fuel Sources: Surge tank remains filled using four independent fuel supply methods

Billet Aluminum Construction: Lightweight anodized aluminum components provide excellent durability and corrosion resistance

High Current Electrical Hardware: Designed for modern high-output fuel systems

Alternative Fuel Compatible: Safe for gasoline, methanol, ethanol, and E85 applications

Brand: Radium Engineering

Manufacturer Part Number: 20-0701

Product Name: Fuel Hanger Surge Tank (FHST) Add-On

Part Type: In-tank fuel surge tank

Construction: CNC-machined anodized aluminum

Pump Capacity: One or two surge pumps

Compatible Fuel Pumps:

Ti Automotive / Walbro F90000267

Ti Automotive / Walbro F90000274

Ti Automotive / Walbro F90000285

Ti Automotive / Walbro F90000295

Ti Automotive E5LM Brushless Fuel Pump

Fuel Compatibility: Gasoline, E85, Ethanol, Methanol

Electrical Hardware: High-current wiring and terminals

Installation: Direct integration with compatible Radium fuel hanger

Quantity: Sold as one FHST add-on assembly

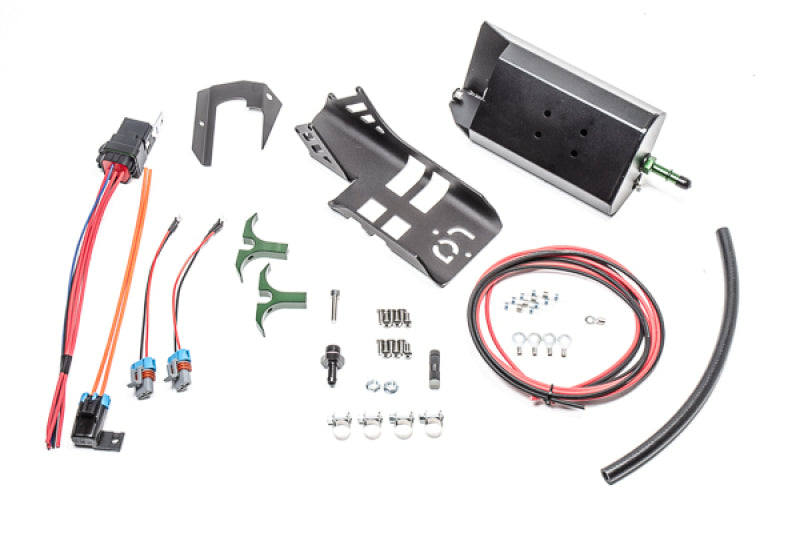

Included Components

Anodized Aluminum FHST Mounting Bracket

Anodized Aluminum Surge Tank Canister

Anodized Aluminum Surge Tank Top Cover

Anodized Aluminum Fuel Pump Clamps

DIY Wiring Kit for One Fuel Pump

Fuel Pump Harnesses (2)

Required Installation Fittings

Installation Hose

Stainless Steel Hardware and Clamps

Radium Engineering is an American performance-parts manufacturer specializing in advanced fuel-delivery, crankcase-ventilation and fluid-management components. Owner-operated and based in Clackamas, Oregon, Radium has developed automotive products since 2010 using in-house research, computer simulation, 3D modeling and extensive product testing. Its catalog includes fuel rails, fuel-pressure regulators, fuel-pump hangers, surge tanks, fuel cells, filters, catch cans, air-oil separators, coolant tanks, fittings and complete vehicle-specific fuel systems. Radium products are developed for performance street cars and motorsport applications, with an emphasis on functionality, precise fitment and clean visual design.

For Nissan Skyline GT-R and R35 GT-R builds, Radium offers dedicated components for the RB26DETT and VR38DETT platforms. Its Skyline catalog includes RB26 fuel rails, catch-can kits, fuel-pump hangers, surge-tank systems and complete fuel-delivery packages for the R32, R33 and R34 GT-R. R35 products include fuel rails, pump hangers, fuel-filter mounts, complete fuel-delivery systems, catch cans, coolant tanks, fuel-line retainers and GR6 transmission filters. These products give GT-R builders options ranging from a simple engine-bay upgrade to a complete high-flow fuel system for gasoline, ethanol or other compatible racing fuels. Exact pump compatibility, vehicle configuration and installation requirements should be confirmed for each product before ordering.

Radium Engineering-branded products include a one-year limited manufacturer’s warranty from the original purchase date. Coverage applies to the original purchaser and protects against defects in Radium materials or workmanship. After inspection, Radium may repair or replace an approved product at its discretion. Warranty coverage cannot exceed the product’s original purchase price.

The warranty does not cover:

• Improper installation or incorrect use

• Product modification, abuse or unauthorized repair

• Labor, towing or other secondary expenses

• Damage to the vehicle or surrounding components

• Third-party products supplied with a Radium kit

Fuel pumps, turbochargers and other non-Radium components are covered only by their original manufacturer, even when purchased with a Radium product. Radium specifically states that it does not administer warranty coverage for fuel pumps.

To begin a claim, contact Elite GT-R Parts with your order number, Radium part number, a description of the issue and clear photographs or video. Relevant installation and vehicle information may also be requested. Do not modify or return the product before receiving instructions. An approved RMA, proof of purchase and the failed component are required, and Radium must receive the return within 14 days after issuing the RMA. The customer is responsible for prepaid shipping to Radium for inspection. Final warranty eligibility and resolution are determined by Radium Engineering.
