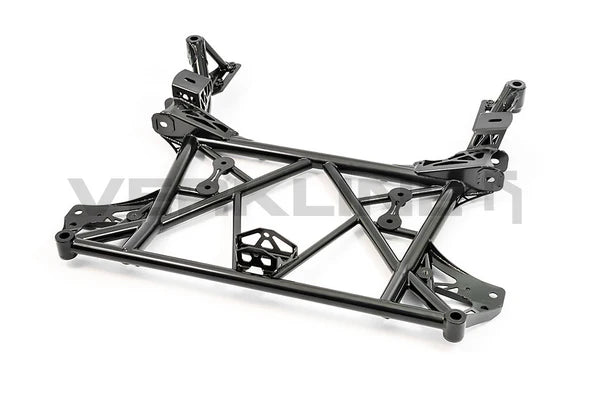

Verkline WAS-300 Lightweight Front Tubular Subframe | Nissan GT-R R35

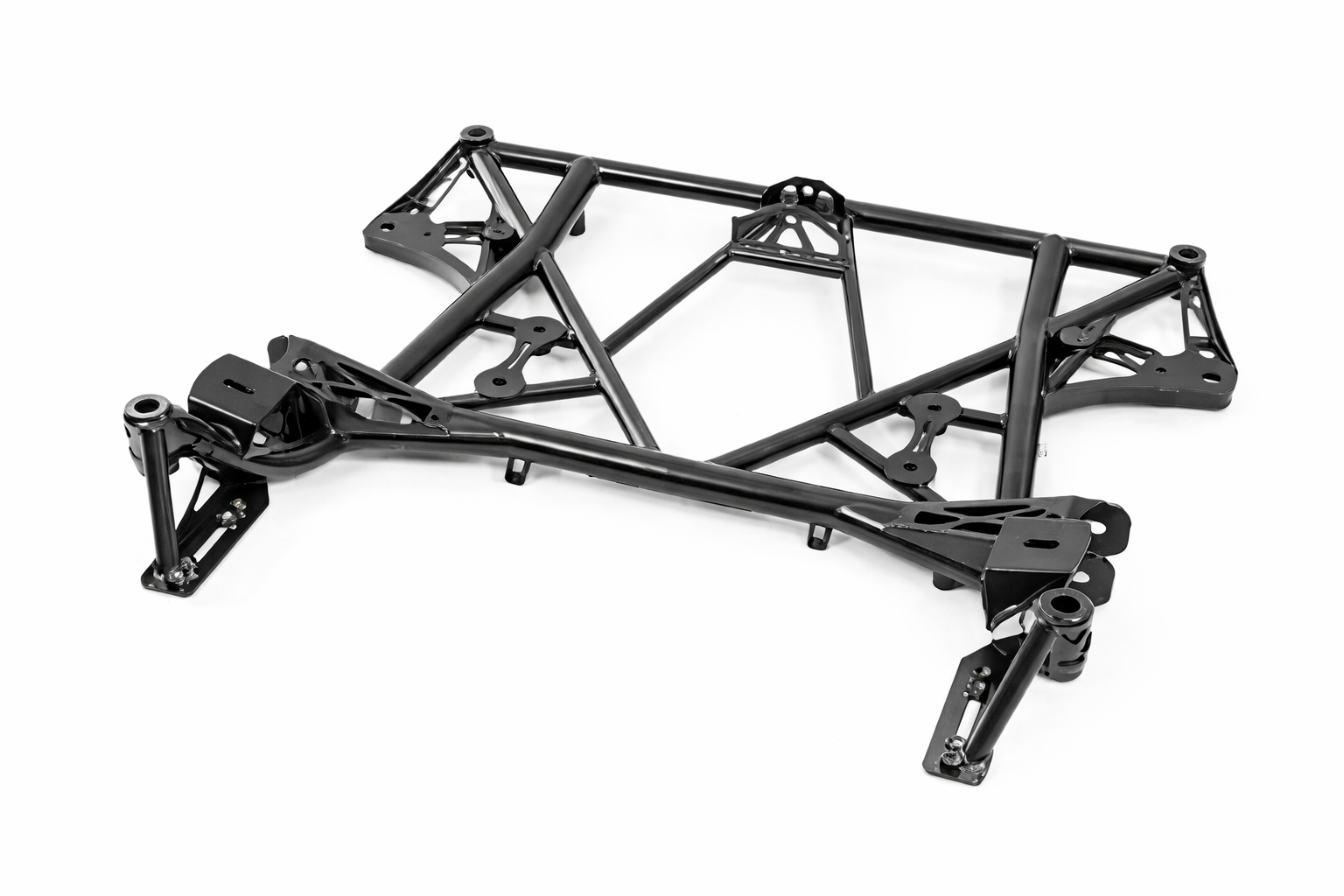

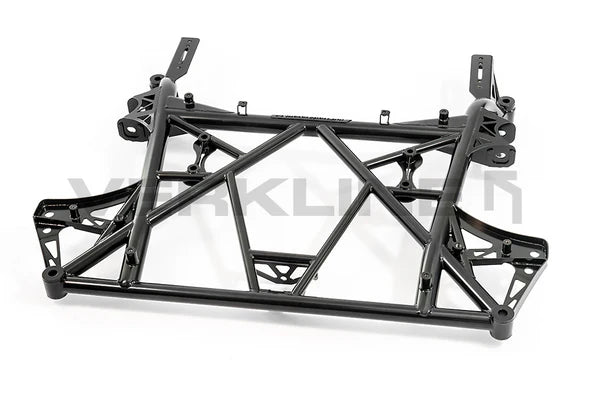

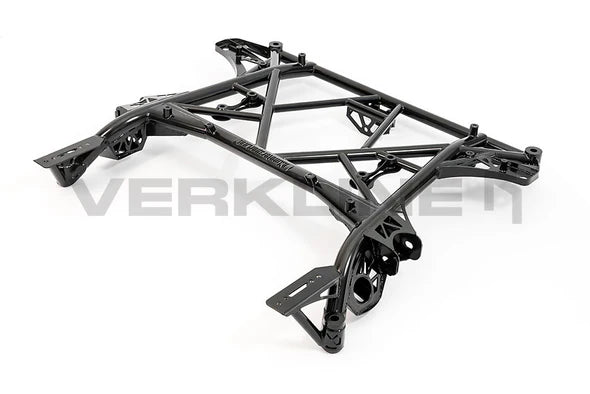

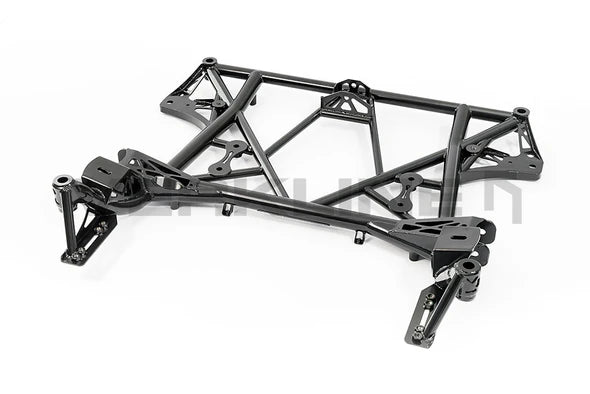

The Verkline Front Lightweight Tubular Subframe for the Nissan GT-R R35 is a motorsport-grade replacement designed to significantly reduce front-end weight while improving serviceability and underbody access. Developed using a full 3D scan of the OEM subframe, this unit is completely CAD-designed and finite element method (FEM) tested to ensure structural integrity under extreme racing conditions.

Constructed from T45 aerospace-grade seamless tubing and S355 steel sheet, this tubular subframe achieves an impressive 40% weight reduction compared to the factory unit—dropping mass from 48.20 lbs (21.85 kg) to just 28.88 lbs (13.1 kg). All components are hand TIG-welded using a special Lincoln Electric TIG wire that matches the tensile and yield properties of the tubing for maximum strength and reliability.

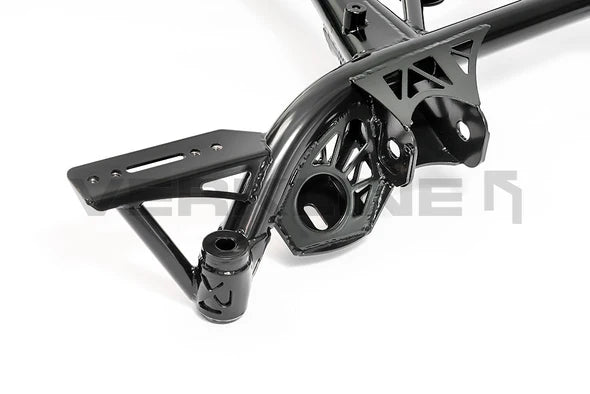

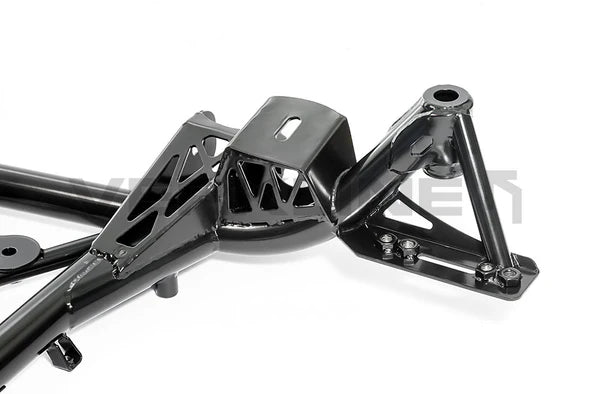

Designed with motorsport functionality in mind, the subframe features dual front anti-roll bar mounting positions, with an additional forward mounting point to provide clearance for dry sump oil system plumbing. It also allows easier removal of extended oil pans, improved access for servicing, and compatibility with Magnus dry sump kits, OEM or aftermarket wishbones, and undertrays.

This Verkline subframe is delivered powder coated in black as standard, with optional custom RAL colors available by special order.

Key Features and Benefits:

• 40% weight reduction over OEM front subframe
• Final weight: 13.1 kg / 28.88 lbs
• Manufactured from T45 aerospace-grade tubing
• Stronger than 4130 chromoly steel
• Fully CAD-designed and FEM-tested
• Hand TIG-welded for maximum quality control
• Dual front sway bar mounting positions
• Extra clearance for dry sump oil system piping
• Easier removal of extended oil pans
• Compatible with Magnus dry sump kit
• Supports OEM or aftermarket wishbones
• Mounts for OEM or aftermarket undertrays

Technical Specs / Material Info:

• Material:

  • T45 tubing (BS4 T45 to BS5T100 / BS6S100)

  • S355 steel sheet

• Welding: Hand TIG welded
• Finish: Black powder coat (standard)
• Optional Finish: Custom RAL color (+50 EUR, RAL code required)
• Weight: 13.1 kg / 28.88 lbs
• Weight Savings: 8.75 kg / 19.3 lbs vs OEM
• Dimensions: 964.8 × 844.5 × 168.8 mm (L × W × H)

Package Contents:

• Verkline front lightweight tubular subframe
• Printed installation instructions

OEM Replacement References:

Replaces OEM Nissan GT-R front subframe part numbers:

• 54401-62B0B
• 54401-38B0A

Installation Info:

• Professional installation strongly recommended
• Intended for experienced performance and race workshops
• Designed for OEM mounting points
• Alignment required after installation

Important Notes & Legal Disclaimer:

• Sold for off-road, race track, and racing applications ONLY
• Not street legal in some regions
• Buyer is responsible for obtaining any required documentation
• Verkline strongly recommends installation by a qualified and experienced workshop

About T45 Tubing:

T45 is a high-strength, seamless carbon-manganese steel widely used in aerospace and professional motorsports applications. It offers higher strength than traditional 4130 chromoly tubing and is engineered to withstand extreme G-forces without cracking or failure.

• Tensile Strength: 700–900 MPa
• Yield Strength (0.2%): ≥620 MPa
• Hardness: 201–262 HB / 210–275 HV
• Aerospace-grade British Standards certified
